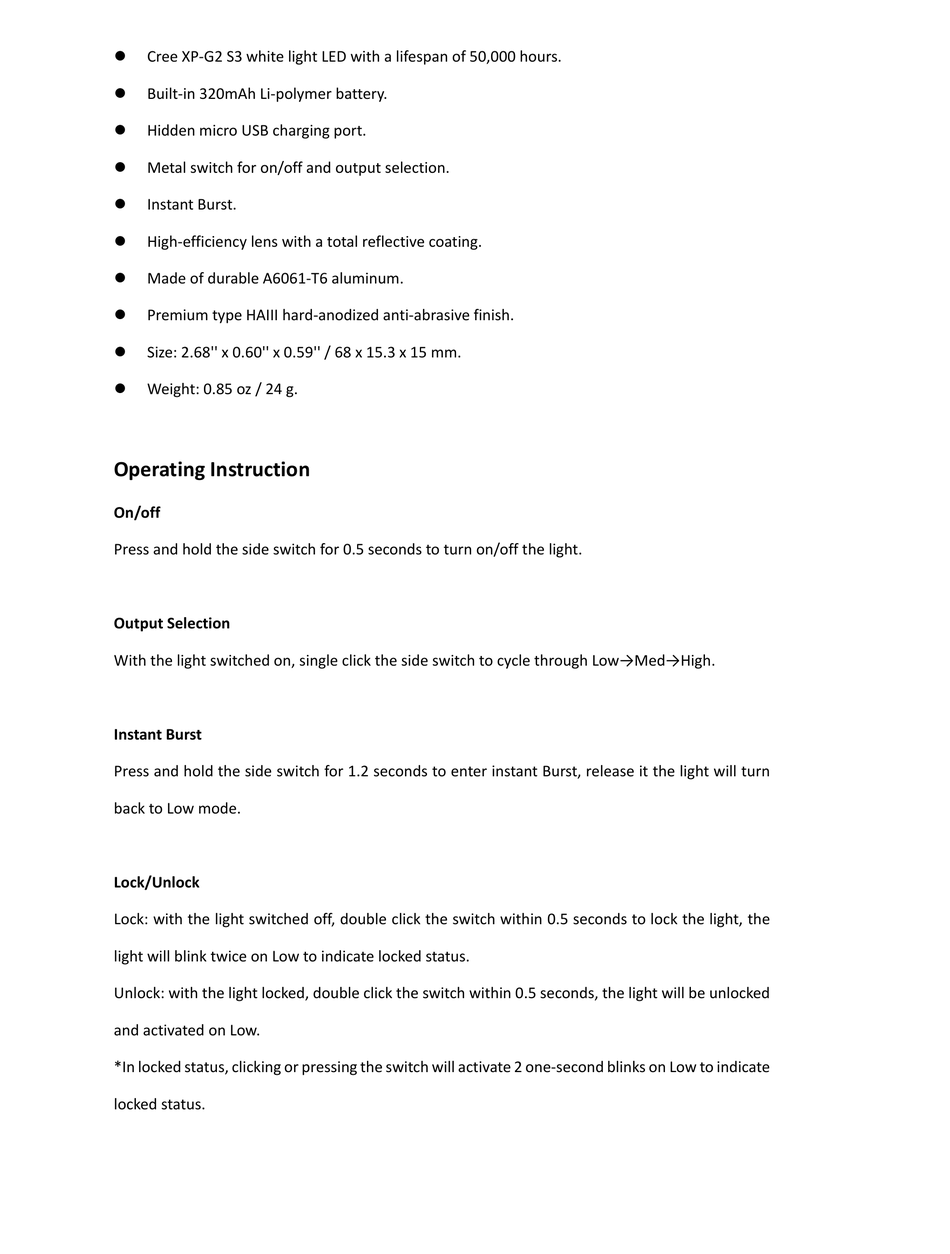

Fenix E05R Quick Start Manual page 2


Cree XP‐G2 S3 white light LED with a lifespan of 50,000 hours.

Built‐in 320mAh Li‐polymer battery.

Hidden micro USB charging port.

Metal switch for on/off and output selection.

Instant Burst.

High‐efficiency lens with a total reflective coating.

Made of durable A6061‐T6 aluminum.

Premium type HAIII hard‐anodized anti‐abrasive finish.

Size: 2.68'' x 0.60'' x 0.59'' / 68 x 15.3 x 15 mm.

Weight: 0.85 oz / 24 g.
Operating Instruction
On/off
Press and hold the side switch for 0.5 seconds to turn on/off the light.
Output Selection
With the light switched on, single click the side switch to cycle through Low→Med→High.
Instant Burst
Press and hold the side switch for 1.2 seconds to enter instant Burst, release it the light will turn
back to Low mode.
Lock/Unlock
Lock: with the light switched off, double click the switch within 0.5 seconds to lock the light, the
light will blink twice on Low to indicate locked status.
Unlock: with the light locked, double click the switch within 0.5 seconds, the light will be unlocked
and activated on Low.
*In locked status, clicking or pressing the switch will activate 2 one‐second blinks on Low to indicate
locked status.
