Adkins STUDIO AUTO CLAM 38 Operator's Handbook Manual
  1. Manuals
  2. Brands
  3. Adkins Manuals
  4. Power Tool
  5. STUDIO CLAM 38
  6. Operator's handbook manual

Adkins STUDIO AUTO CLAM 38 Operator's Handbook Manual

Hide thumbs Also See for STUDIO AUTO CLAM 38:
Table of Contents

Advertisement

Quick Links

Download this manual
HEAT PRESS TECHNOLOGY
Operators Handbook
All products within the ADKINS range are labelled with CE marking and are manufactured and tested to comply with EC safety regulations.
All products within the ADKINS range are labelled with CE marking and are manufactured and tested to comply with EC safety regulations.
Rev F - 17/12/21
Rev F - 17/12/21
©2021 A. Adkins & Sons Ltd. All rights reserved. E&OE. V1.0.
©2018 A. Adkins & Sons Ltd. All rights reserved. E&OE. V1.0.
STUDIO AUTO CLAM 38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIO AUTO CLAM 38 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adkins STUDIO AUTO CLAM 38

Summary of Contents for Adkins STUDIO AUTO CLAM 38

  • Page 1 Rev F - 17/12/21 All products within the ADKINS range are labelled with CE marking and are manufactured and tested to comply with EC safety regulations. All products within the ADKINS range are labelled with CE marking and are manufactured and tested to comply with EC safety regulations.
  • Page 2 Preface Dear User Welcome to the growing group of Studio Auto Clam 38 users. The product you have purchased has been carefully designed and manufactured to ensure that you, the user, will gain the maximum benefit. All A. Adkins & Sons Limited products are specifically designed to ensure ease of use with particular attention to safety requirements.

  • Page 3: Table Of Contents

    Installation Transport instructions Installing the machine Electrical requirements Adjusting the pressure How to operate the Studio Auto Clam 38 6 Starting with the Studio Auto Clam 38 Working with heat transfer materials Pressing pad assembly Shutting down the machine Heat Plate Temperature Measurement...

  • Page 4: Introduction Studio Auto Clam

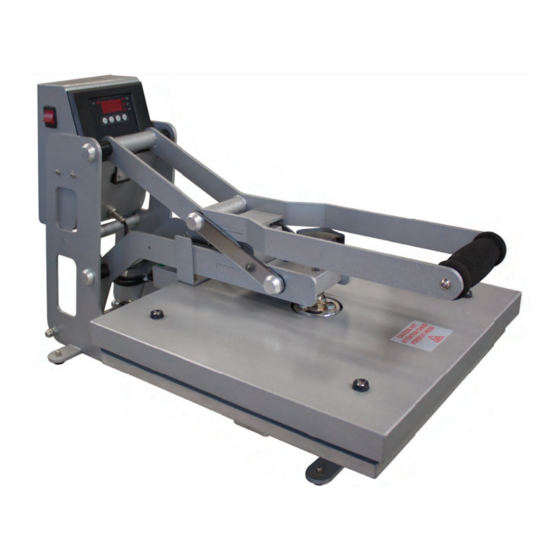

    Auto Clam 38 Specifications of the Studio Auto Clam 38 The Studio Auto Clam 38 is a manually operated heat press for transfer printing and material fusing but with an electro-magnetic opening system. It is ideal for medium volume production.

  • Page 5: Safety

    Our customer service department has its own service engineers and, if required, maintenance is available. ♦ The Studio Auto Clam 38 meets the European Legislation standard. Under normal conditions accidents are rare. However listed below are some practical points to ensure your safety.
  • Page 6 Safety tips (cont.) ♦ MACHINE OPERATION Only persons trained to do so should operate this machine. This is very important because the machine, when set, will open automatically after the transfer cycle is complete. There must be sufficient space for the heat plate to rise from the table without interference.

  • Page 7: Installation

    2. Installation Transport instructions The Studio Auto Clam 38 comes to you either shrink-wrapped or in a box. If you have to transport the machine at any time it is recommended that you use a similar box and packing method. Please let the machine cool down and lower the handle to the locked position.

  • Page 8: Adjusting The Pressure

    Electrical requirements (cont.) As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- The wire coloured green and yellow must be connected to the terminal in the plug that is marked by the letter E, or by the safety earth symbol coloured green, or green and yellow.

  • Page 9: How To Operate The Studio Auto Clam 38

    3. How to operate the Studio Auto Clam 38 Starting with the Studio Auto Clam 38 3.1.1 Plug into your supply outlet and switch supply on. N.B. Please ensure the mains plug is easily accessible to the operator so that in the event of a fault the machine can be unplugged.

  • Page 10: Pressing Pad Assembly

    The handle should be in the up position. Heat Plate Temperature Measurement Testing of the Heat Plate for temperature consistency or fault condition should only be undertaken after consulting A. Adkins and Sons, and then only using a wired Digital Thermometer (*please see note below).
  • Page 11 The Digital Thermometer with external probe is suitable for surface, air and immersion/penetration measurement, which is required for all Adkins heat presses. Laser Thermometers only measure air surfaces which can be misleading due to currents of hot air floating on the surface of the heat plate.

  • Page 12: Maintenance Of The Machine

    4. Maintenance of the machine Daily maintenance For good press results it is important to keep the press surfaces clean. Wipe the surface of the heat plate with a dry cloth before use when the plate is cold. Periodic maintenance Put a few drops of oil onto the various pivot pins and the pressure adjusting screw every three months.

  • Page 13: Machine Drawings & Diagrams

    5. Machine drawings and diagrams On the following pages are the schematic diagrams for the Studio Auto Clam 38. General layout……………………………… Page 11 Control unit operation……………………... Page 12 Exploded diagram and parts list………..Page 13 Electrical Diagram…………………………. Page 14 Page 10...

  • Page 14: General Layout

    5.1 General layout MACHINE OPERATING HANDLE TIME AND PRESSURE TEMPERATURE ADJUSTING CONTROLLER KNOB HEAT PLATE ON/OFF SWITCH TABLE AND PAD Page 11...

  • Page 15: Control Unit Operation

    5.2 Control Unit Operation N.B. The head must always be in the up position before the controller is set Setting Temperature Switch on machine. Press 'MODE' button to select 'SET' on RH indicator. Press the ' ' arrow button to select the first digit (which will flash).

  • Page 16: Exploded Diagram And Parts List

    5.3 Exploded Diagram and Parts List 1 Retaining ring cover 9 ASACL1 2 Spacer 2 ASACL2 3 Long rotating shaft 2 ASACL3 4 Lower pressing rod assembly 1 ASACL4 5 Connecting bar 2 ASACL5 6 Short rotating shaft 2 ASACL6 7 Electrical magnet cover 1 ASACL7 8 Electrical magnet cushion...

  • Page 17: Electrical Diagram

    5.4 Electrical Diagram Optional Power Switch MAGNET Controller Main Board Relay Thermocouple Solid State Switch SSR-25AA Magnetic Switch Ground Power Supply Socket Fuse Page 14...

  • Page 18: Design Change

    6. Design change With the policy of constant improvement and/or modification to meet changing conditions, the right is reserved to change the design and/or specifications at any time without prior notification, and therefore specifications may vary and not be in accordance with this manual. Page 15...

  • Page 19: Guarantee (Limited Warranty)

    “as is”. A. Adkins & Sons Limited does not warrant that the functions of the press will meet the customer’s requirements or expectations.

  • Page 20: Declaration Of Conformity

    Standards to which Conformity is Declared: Manufacturer's Name: A. Adkins and Sons Limited Manufacturer's Address: High Cross, 18 Lancaster Road, Hinckley, Type of Equipment: Studio Auto Clam 38 Heat Press Standards Compliance: RoHS COMPLIANT ASAC38 ....................Model Number: ....................
