– INSTRUCTION MANUAL –
T12
DESIGN BY HAY

Advertisement

loading
Need help?

Need help?

Do you have a question about the T12 and is the answer not in the manual?

Questions and answers

Related Manuals for Hay T12

Summary of Contents for Hay T12

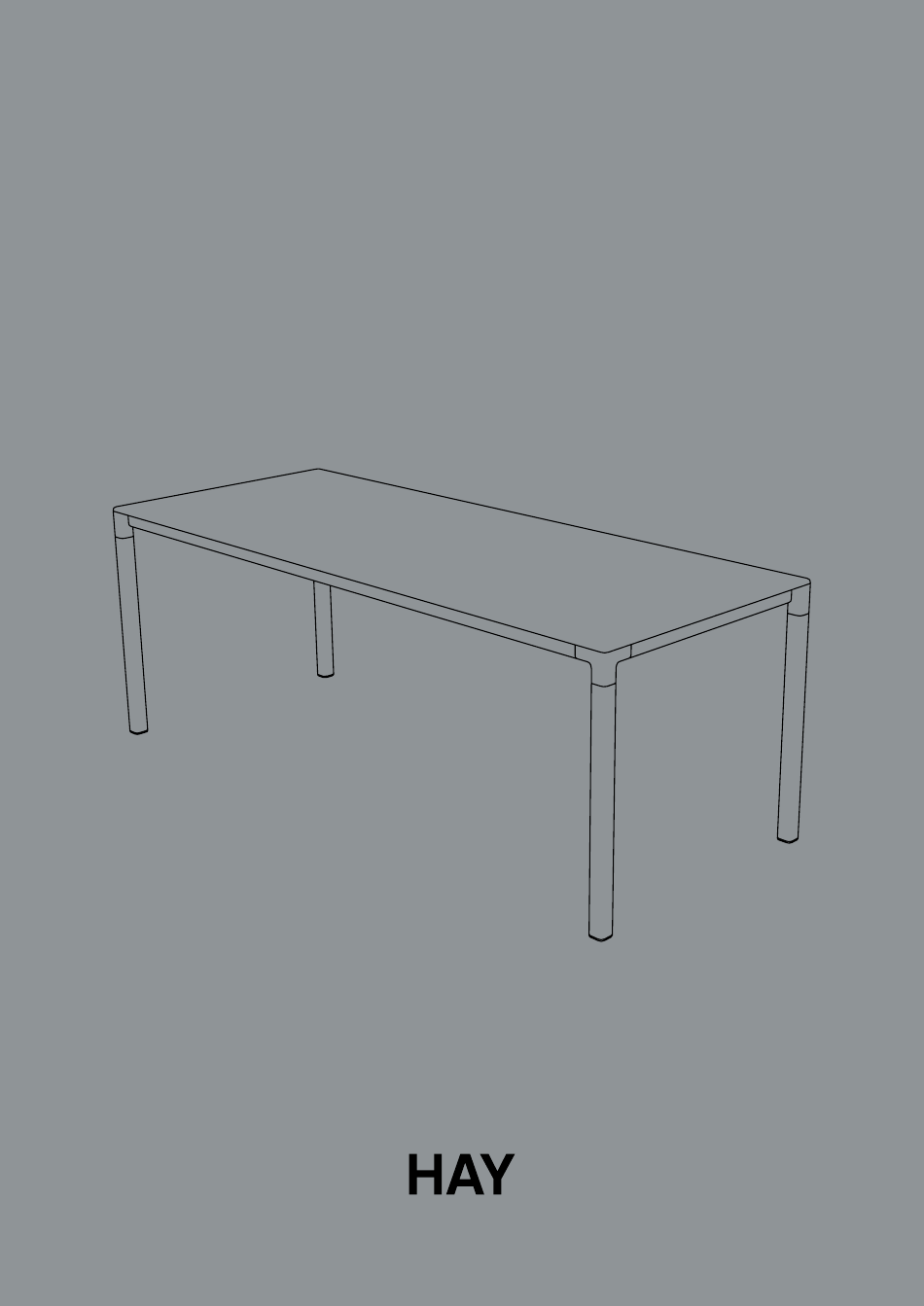

  • Page 1 – INSTRUCTION MANUAL – DESIGN BY HAY...
  • Page 3 – INSTRUCTION MANUAL – L160 X W80 / L200 X W95 / L200 X W120 CM L250 X W95 / L250 X W120 CM...
  • Page 4 – PARTS –  Tabletop x1  Corner knot X4     Frame profile x2 Leg x4 End cap x4 Frame profile x2  Screw x16  Screw x20 / W120 CM)     Allen key x1 Set screw x16 Allen key x1 Allen key x1...
  • Page 5 Protect the tabletop from scratches and other damage while assembling.
  • Page 6   Slide the part into the part.  Repeat this step for all parts.
  • Page 7    Screw the part onto the part, using the part.  Repeat this step for all parts.
  • Page 8    Place parts into the part.  Repeat this step for all parts.
  • Page 9    Screw 4 x parts onto the part using the part.  Repeat this step for all parts.
  • Page 10  Place the tabletop on top of the frame.
  • Page 11     Screw the parts together with the parts,  using the part to securely fasten the screws.
  • Page 12 Done!
  • Page 13 – INSTRUCTION MANUAL – L320 x W95 / L320 x W120 CM L400 x W95 / L400 x W120 CM...
  • Page 14 – PARTS –  Tabletop x1  Tabletop x2 / L400 CM)  Corner knot x4     Frame profile x4 Frame profile x2 Leg x6 Side knot x2  End cap x6    Allen key x1 Allen key x1 Allen key x1 ...
  • Page 15 Protect the tabletop from scratches and other damage while assembling.
  • Page 16   Slide the part into the part.  Repeat this step for all parts.
  • Page 17    Screw the part onto the part, using the part.  Repeat this step for all parts.
  • Page 18    Place parts into the part.  Repeat this step for all parts.
  • Page 19    Screw 4 x parts into the part using the part.  Repeat this step for all parts.
  • Page 20    Screw the part to the part, using the part.  Repeat this step for both parts.
  • Page 21   Place the part in the parts and tighten the bolt.  Repeat this step for both parts. NOTICE A wrench is required to com- plete this step.
  • Page 22    Screw 4 x parts into the part using the part.  Repeat this step for both parts.
  • Page 23  Place the tabletop ( x2) on the frame. NOTICE Please be aware that the L400cm tabletop is split in two.
  • Page 24      Screw the parts onto the part with the parts,  using the part to securely fasten the screws.
  • Page 25 Done! NOTICE Please be aware that the L400cm tabletop is split in two.
  • Page 26 Please note when disassembling the table, loosen the screws, bash firmly on the screw with a rubber head hammer or something similar that will not break the screw, and pull the leg. NOTICE Please use a rubber head hammer or similar tool.

  • Page 27: Care And Maintenance

    – CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance...
  • Page 32 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com 14/10/2021...
