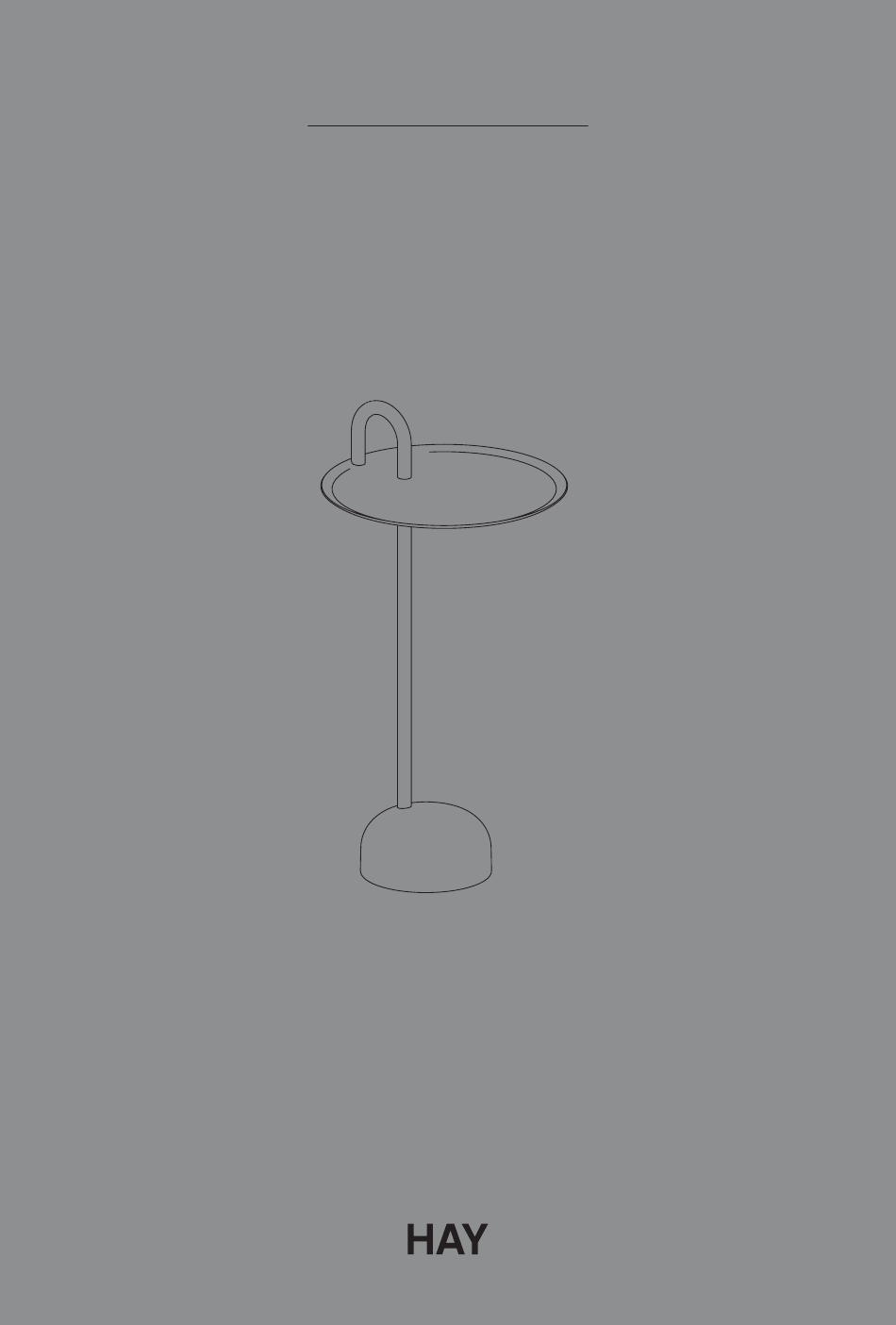

I NST RUCTION M A N UA L
B OW L E R TA B L E
B y S h a n e S c h n e c k

Advertisement

loading
Need help?

Need help?

Do you have a question about the BOWLER TABLE 185664 and is the answer not in the manual?

Questions and answers

Related Manuals for Hay BOWLER TABLE 185664

Summary of Contents for Hay BOWLER TABLE 185664

  • Page 1 I NST RUCTION M A N UA L B OW L E R TA B L E B y S h a n e S c h n e c k...
  • Page 2 I N T RODUCTION Shane Schneck’s Bowler Table is a compact side table that is ideal for small spaces. The single tube that extends upwards creates a defined profile, which doubles as a functional handle too. The stem, handle and tray are made in powder coated steel, with a solid granite base that provides stability, yet it is still lightweight enough to move around.
  • Page 3 C A R E A N D M A I N T ENA NCE CAUTION With a little care you can prolong the life of your • Use coasters under damp, hot or coloured objects furniture. Follow the instructions for the materials of to avoid permanent stains.
  • Page 4 C A R E A N D M A I N T ENA NCE POWDER COATED STEEL • Never use vinegar, ammonia, acetic acid or citric acid or abrasive cleaners. • Wipe with a clean cloth wrung in water or in a solution of water and a neutral detergent.
  • Page 5 PA RTS Tray (A) Tube (B) Granite base (C) Spring washer (D) Washer (E) Plastic washer (F) Screw (G) Screw (H) Allen Key Large (I) Allen Key Small (J)
  • Page 6 Insert the tube (B) into the granite base (C). Make sure the small hole on top of the tube is facing the long side of the granite base. Insert the screw (H), spring washer (D) and washer (E) from the bottom, and secure them with the large Allen key (I).
  • Page 7 To fully fasten the screw, turn the base upside down in your lap to get a good grip, and then tighten the screw completely.
  • Page 8 Mount the plastic washer (F) to the pin on the bottom of the tray (A).
  • Page 9 Insert the tray’s pin (A) into the tube (B). Secure the connection by fastening the screw (G) with the small Allen key (J). Make sure the long side of the tray is facing the long part of the base. Re-tighten both bottom and top screws after the table has been fully assembled.
  • Page 11 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com ITEM NO. 706377 25012019...
