NavTool NAVTOOL6.0-LG2-RR Installation Manual page 5

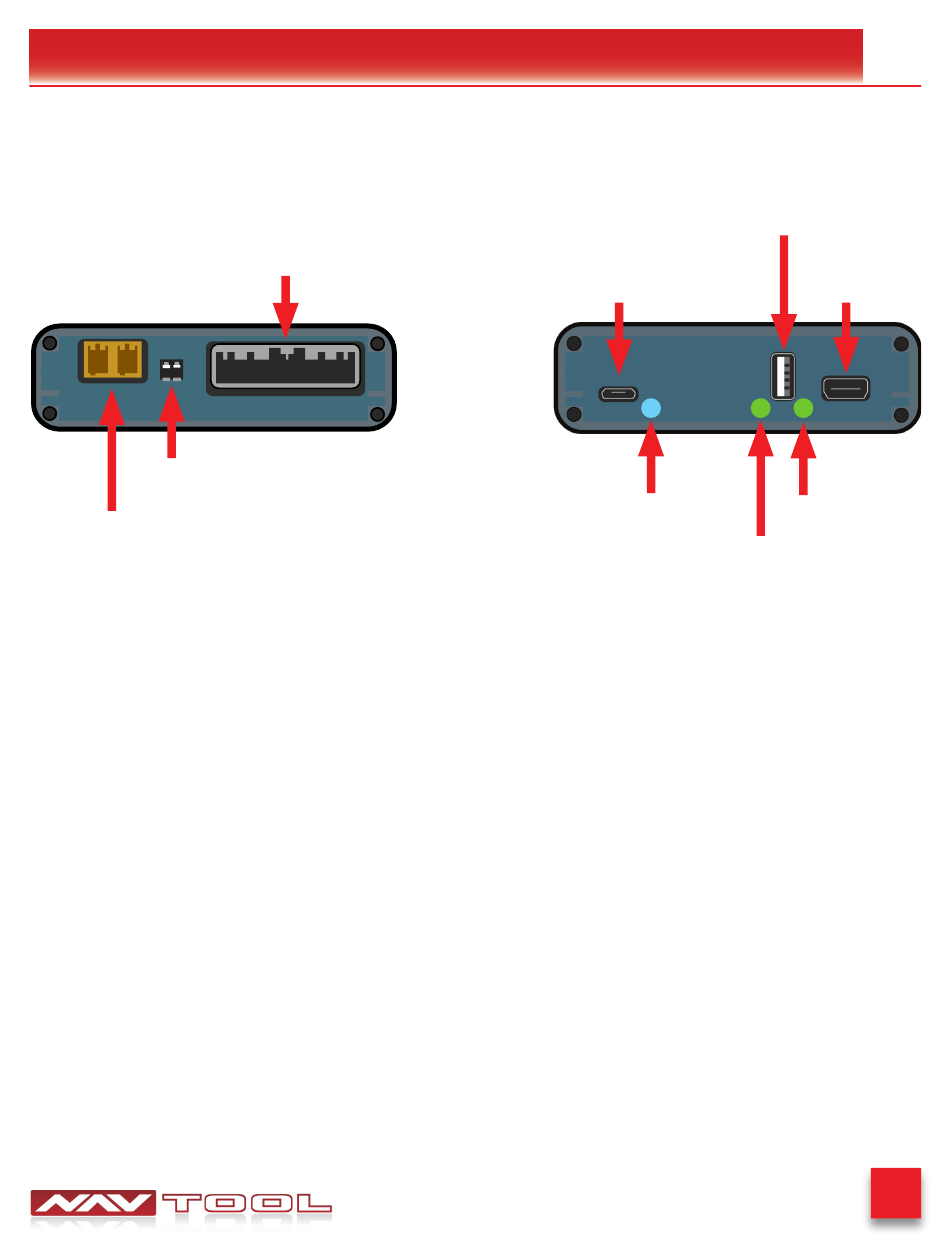

Interface Connectors Description
NavTool Interface
(Part # NAVTOOL6.0-LG2)
USB Port for
Apple CarPlay and
Android Auto
Main Connector for
Universal Interface Harness
Configuration Port HDMI Port
ON 1 2
Dip Switches
Data LED HDMI LED
LVDS Cables
Input and Output Power LED
Main Connector for Universal Interface Harness- This port is dedicated for a connection of a universal wiring harness
LVDS Cables Input and Output- This port is dedicated for the LVDS cables.
Dip Switches- Set dip switches to ON positio, see page 7, ON position is DOWN.
Configuration Port- This USB port is dedicated for the interface configuration only.
Data LED- Normal operation of the interface must have blue LED blinking. If the blue LED is not blinking, the interface is
not receiving data from the vehicle. If the blue LED is not blinking, the interface will not operate properly.
Power LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface is
not receiving power. If the green LED is not ON, the interface will not work, and your vehicle radio may also stay OFF.
HDMI LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface HDMI
is not receiving power. If the green LED is not ON, the interface HDMI port will not work.
USB Port for Apple CarPlay and Android Auto- Not Used
HDMI Port- HDMI port is dedicated for connecting video sources such as iPhone mirroring, Android Mirroring, Apple TV,
Roku, FireStick, Chromecast, PlayStation, Xbox, or similar devices.
5
Land Rover LR3 2005-2009
