- Page 1 APPENDIX-3 LANDING OPERATION PANEL INSTALLATION ALYA ALYA SERIES SERIAL COMMUNICATION LOP INSTALLATION MANUAL Document Name : ALYA User and Installation Manual Display Type Document Code : -- Document Version : 1.05...
- Page 2 Contents Chapter 1: General Features ..............2 Chapter 2: Mechanical Installation ............3 Chapter 3: Electrical Connections ............4 Chapter 4: Operation and Adjustment Operations ....... 5 Chapter 5: Caution ................... 6 F/7.5.5.02.127 R:0 ALYA...

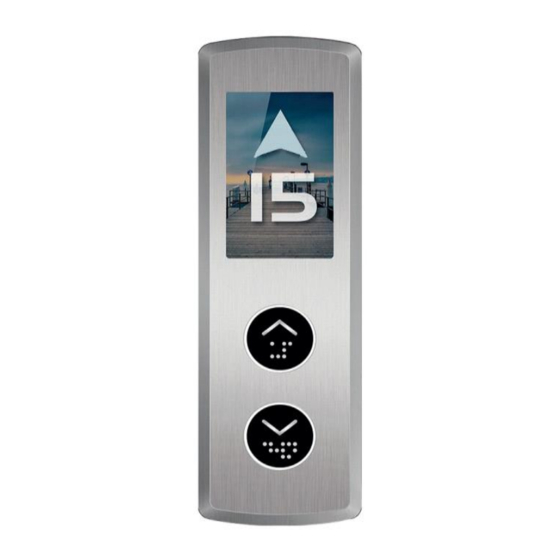

- Page 3 Chapter 1: General Features 1.1. Product Descprition • It is a surface mounted landing operating panel. • It corresponds with EN81-70. • Used with Aybey T-Series button model. • Single and double button options are available. • Compatible with Aybey AE-MAESTRO and ALC series control panels. •...
- Page 4 1.3. Mechanical Measurements Chapter 2: Mechanical Installation 1. Open the front cover by pressing the spring mechanism at the bottom center of the ALYA LOP with a screwdriver. 2. Mark the holes of screws and cable by placing the rear plate onto wall you want to install.
- Page 5 6. In order to completed the mechanical installation of the lop, the back cover is fixed to the wall using M4x35 screws and electrical connections are made. 7. After the settings related to the configuration are complete, close the front cover. Chapter 3: Electrical Connections Figure 3: Electrical Connection Diagram 1.
- Page 6 Chapter 4: Operation and Adjustment Operations The only setting made on the board is the floor ID number. This setting is made with the help of the switches on the board. ID can be set from the 0th floor to the 63rd floor with the BINARY number system.It is done with switches starting from ID5 to ID0.
- Page 7 Chapter 5: Caution 1. Stainless steel cleaner should be used for cleaning the panel. 2. No detergent or acid should be used to clean the panel. 3. LOPs should not come into contact with any liquid. 4. In case of any malfunction,LOP should be de-energized and Aybey Electronic Technical Service should be contacted.
- Page 8 AYBEY ELEKTRONİK SAN.TİC.A.Ş. Sanayi Mah. Hızır Reis Cad. No:26/2 Pendik-İstanbul / Türkiye Tel: (90) (216) 394 50 55 Fax: (90) (216) 394 50 58 e-mail: destek@aybey.com www.aybey.com...
