Congratulations on the purchase of your Media Cart. This media cart has been crafted to the highest standards of
quality and safety and will give you many years of enjoyment and practical use.
Since this media cart is a natural wood product, there will be variations in color and grain, and minor checking
may occur. This is normal and does not compromise the integrity of your media cart. In fact, variation in character
of solid hardwood is integral to the beauty and appeal of hardwood furniture, and distinguishes it from
prefabricated, synthetic and composite materials.
On this insert you will nd a list of the hardware and parts included as well as detailed assembly instructions.
Assembly is quite simple and requires only a Phillips head screwdriver. Assembly will be most easily accomplished
if you take the time to carefully sort the hardware and familiarize yourself with the function of each piece.
If you need assistance with assembly, part replacement, or any other matter, please contact the toll-free Epoch
Design Customer Service Team from Monday through Friday, 9 AM-6PM PST at 1 (800) 589-7990. You may also
email your request or comments to info@epochbydesign.com and a customer service representative will respond.
Thank you and Enjoy
10x Camlock
connector pins
mm
10
20
30
C
Four predrilled holes in each corner on bottom for the caster wheels
29x 15mm
wood screws
6x 40mm screws
40
A
Back panel
F
G
HAVE QUESTIONS OR CONCERNS? CALL US FIRST: 1-800-589-7990
Copyright © 2018 Epoch Design™ All rights reserved

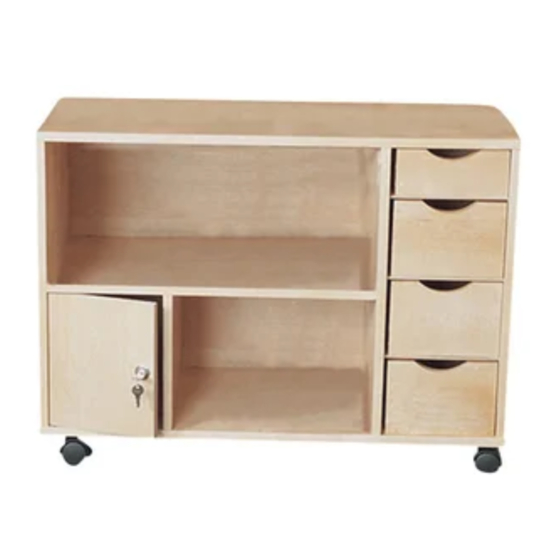

Media Cart
5129: GA-OS-MC-NB
5141: GA-OS-MC-CO
HARDWARE LIST
30x 30mm
wooden dowels
2x Keys
PARTS
3 slide in
shelves
E
D
B
2x Hinge pins
2x Caster wheels
(No holes on this side)
D
29-Oct-2018
10x Camlocks
2x Locking
Caster wheels
Drawers
