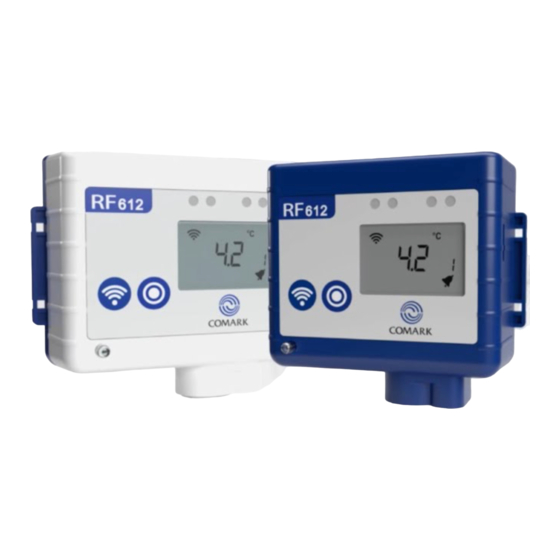

Fluke Comark Diligence 600 Quick Start Manual

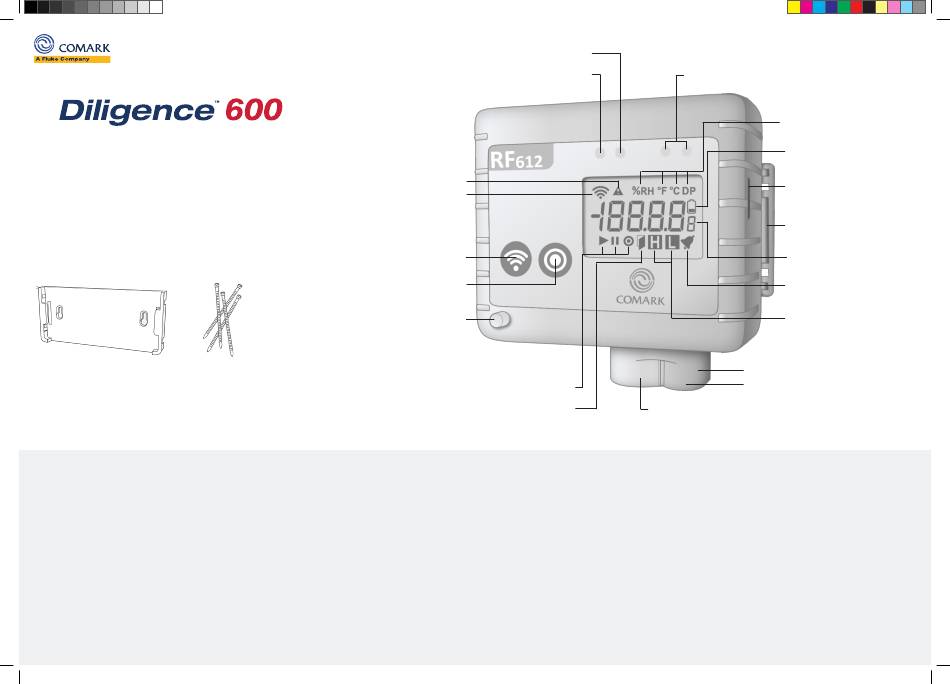

Quick Start Guide
Also Included:
Mounting Bracket Cable Ties
Use the supplied mounting bracket Use these to tidy and secure
to secure the Transmitter to a any cables post-installation and
suitable surface using appropriate prevent cables from pulling out
fixings (not supplied). of their sockets.
WiFi Button
The WiFi Button has several functions:
1. Press and hold for one second. The Activity (Green) LED will flash
once to acknowledge the button press and you will hear a beep. The
Transmitter will attempt to connect to the Diligence Cloud and send
any unsent data and/or receive any new tasks. During this time the
lower segment of the WiFi Signal Icon will flash.
2. Press and hold for five seconds. The Transmitter will go into Survey
Mode and check the WiFi Signal Strength. To exit press the WiFi
Button again.
3. Press and hold the WiFi Button and Action Button simultaneously
for five seconds to place the Transmitter into Setup Mode. Press the
WiFi Button again to exit Setup Mode.
Activity (Green) LED
Fault Alert
WiFi Signal
WiFi Button
Action Button
Integral Thermistor Sensor*
(*Not RF614)
Door Sensor Alert
Action Button
The Action Button allows you to navigate between Active Channels.
1. Press once to change the Active Channel that is displayed.
2. Press and hold the Action Button and WiFi Button simultaneously
for five seconds to place the Transmitter into Setup Mode.
Alarm (Red) LED
The Alarm (Red) LED will flash whenever one or more channels is in an
active (unacknowledged) alarm state. It will not flash for High and Low
Alarm states, but will flash for High-High and Low-Low Alarm states.
Alarm (Red) LED
Infrared LEDs
Action Icons
6-Pin Lumberg Probe Socket
Activity (Green) LED
The Activity (Green) LED will flash briefly every second to indicate that
the Transmitter is operating normally. The Activity (Green) LED will also
flash once whenever the WiFi Button has been operated.
Infrared LEDs
The Infrared LEDs are only used during the manufacturing process and
do not display or have any significance in normal operation.
Power and Diagnostic LEDs
These illuminate at various times depending on Transmitter interactions.
Please refer to the operating manual for a full explanation of these LEDs.
Scale Selected
Low Battery Indicator
Power and
Diagnostic LEDs
Mounting Plate
Current Active Channel
Alarm Active Alert
High/Low Alarms
2-Pin Power Supply Socket
3-Pin Door Sensor Socket
© 2022 Comark Instruments 20812-3
