Summary of Contents for Fluke COMARK Diligence 600

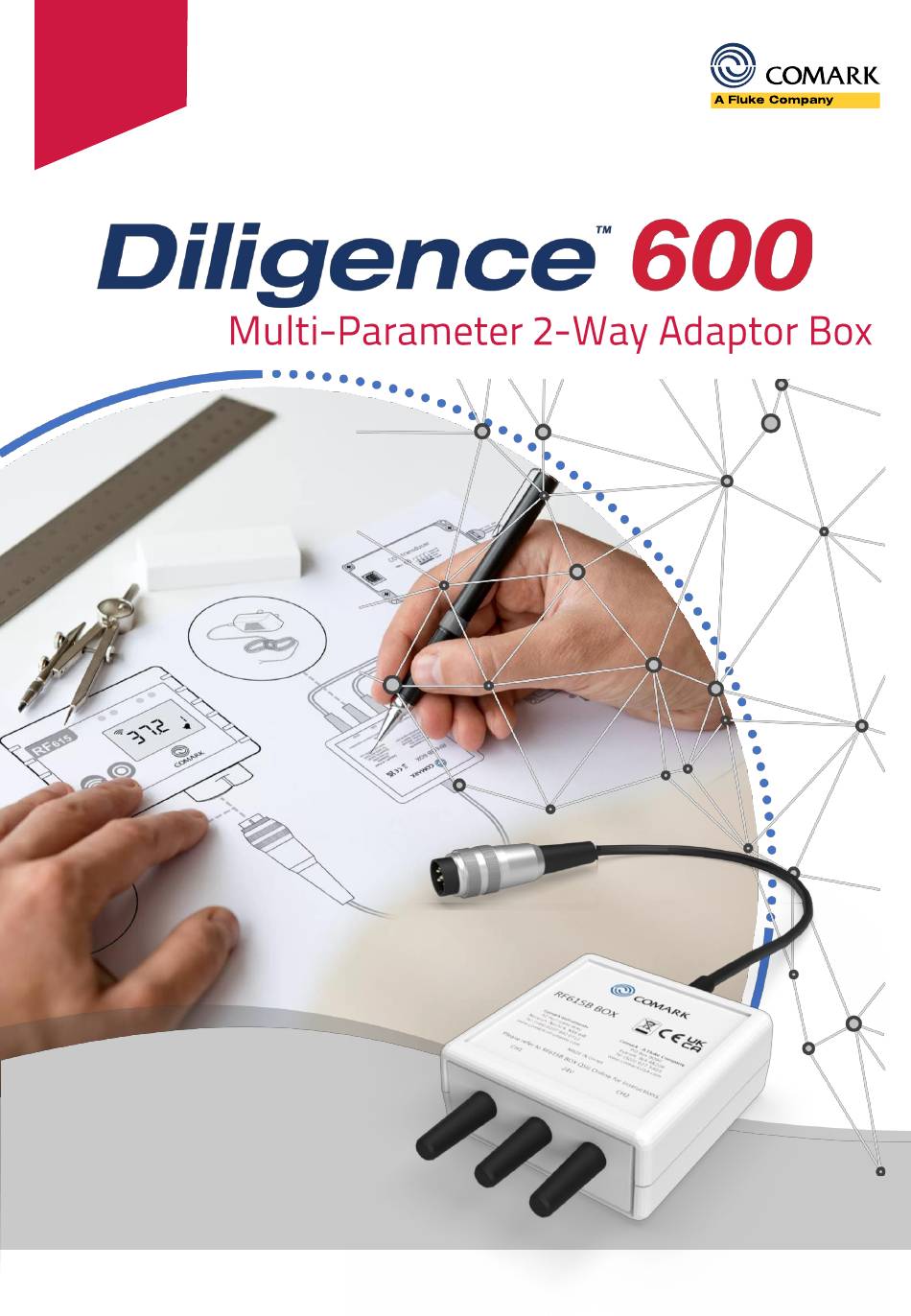

  • Page 1 NEW! Copyright © 2022 Comark Instruments 20825-1 | May 2022...
  • Page 2 Introduction Accessories Internal Configuration Sensor Selection Power Options Voltage Transducer Wiring Current Transducer Wiring Current Transducer Wiring (Loop-Powered) Important Notes Warranty Copyright © 2022 Comark Instruments...
  • Page 3 This user guide is designed to assist anyone wishing to install the Diligence 600 Multi-Parameter 2-Way Adaptor Box (RF615B) and sets out the various types of transducer that the adaptor can accommodate, as well as detail the relevant connectivity. It should be noted that the Diligence 600 Multi-Parameter 2-Way Adaptor Box (RF615B) is only designed to work with the Diligence 600 WiFi Multi-Parameter Transmitter (RF615) which itself is suited to a wide range of applications and is capable of measuring parameters such as current, voltage, pressure, gas,...
  • Page 4 For the Diligence 600 WiFi Multi-Parameter Transmitter (RF615) The Diligence 600 WiFi Multi-Parameter Transmitter (RF615) is capable of handling up to FOUR external transducers through a combination of adaptors. Part No: RF602Y (5306378) Part No: 18477 (3616817) Use the Y Adaptor should you wish to This 24V Power Supply with add TWO Multi-Parameter 2-Way interchangeable mains plugs to...
  • Page 5 The Multi-Parameter 2-Way Adaptor Box (RF615B) is opened by undoing the two screws located on the rear (underside) of the device. Inside you will see the PCB with several different terminals, as indicated below. All connections are made using the screw terminals provided. Please note that you might need to insert two wires into any of the screw terminals.
  • Page 6 The Adaptor Box is divided into two channels which are labelled (CH1 and CH2) as indicated below. If two adaptor boxes are used, via a Y Adaptor (RF602Y), then channel 1 will be reflected as channel 3 on the connected transmitter, and channel 2 as channel 4.
  • Page 7 The Multi-Parameter 2-Way Adaptor Box (RF615B) is pre-fitted with three cable grommets which should be used for bringing cables in and out of the housing. The Adaptor Box also includes connections for a 24V mains power supply unit (PSU) in order that power can be supplied to connected devices. It should be noted that some transducers require a separate PSU.
  • Page 8 The 24V PSU connection to the Adaptor Box (RF615B) includes two additional connectors, to allow power output to the transducer. The ground connection should be used for both the PSU and connections to 0V on the transducers. In some special cases, current (4-20mA) transducers do not have a separate output for the signal and rely on the two-wire connection for both sensor power and the output to the loop.
  • Page 9 Here the transducer has four connections, two for power in and two for the signal out. It is possible that the ground input may be shared with the 0V output thus having only three connections instead of four. It may not be necessary to use the power connections inside the Adaptor Box as power can be provided direct to the transducer.
  • Page 10 In this example, the transducer has four connections, two for power in and two for the signal out. It is possible that the ground input may be shared with the 0V output thus having only three connections instead of four. In this instance the 4-20mA current transducer is not loop-powered and has separate power input and current output.
  • Page 11 With this option, the transducer is powered by the loop current flowing around the circuit. Two loop-powered transducers can still be connected, but the wiring of each should be kept separate. The second transducer should be wired in parallel with the first to ensure that there are two current loops. If you are breaking into an existing current loop, i.e., in a factory environment, you do not need the additional PSU connection.

  • Page 12: Environmental Protection

    Environmental Protection The Multi-Parameter 2-Way Adaptor Box (RF615B) is not waterproof and therefore should not be used in damp or wet environments. Nor is it rated for intrinsically safe applications. Before Connecting Power We recommend that all wiring is checked thoroughly prior to connecting power.
  • Page 13 Each Comark product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is one (1) year, unless otherwise stated, and the warranty period begins on the date of shipment. Temperature probes are warranted for six (6) months. The warranty extends only to the original buyer or end-user of a Comark authorized reseller.
