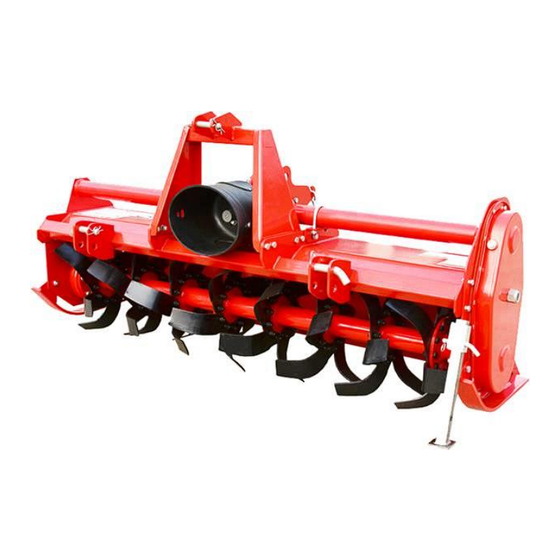

TXG / YCT / RXT Rotary Tillers
PTO SHAFTS:
TXG – All sizes
YCT- 60-66-74
YCT-082 (EARLY)
YCT-082 (LATE)
RXT – All Sizes
Operator's Manual
Parts Breakdown
Series 40 (slip Clutch 150mm)
Series 40 (slip Clutch 180mm)
Series 60 (slip Clutch 180mm)
Series 40 (slip Clutch 180MM)
Series 60 (slip Clutch 200mm)
Publication #: June 2013
Advertisement
Table of Contents
Related Manuals for Tar River 60 Series
Summary of Contents for Tar River 60 Series
- Page 1 TXG / YCT / RXT Rotary Tillers Operator’s Manual Parts Breakdown PTO SHAFTS: TXG – All sizes Series 40 (slip Clutch 150mm) YCT- 60-66-74 Series 40 (slip Clutch 180mm) YCT-082 (EARLY) Series 60 (slip Clutch 180mm) YCT-082 (LATE) Series 40 (slip Clutch 180MM) RXT –...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .......................... 2 SAFETY............................2 SAFETY SIGNAL WORDS ......................3 GENERAL SAFETY GUIDELINES ..................... 3 SAFETY DECAL CARE........................ 4 BEFORE OPERATION ........................4 DURING OPERATION ......................... 5 HIGHWAY AND TRANSPORT OPERATIONS ................. 6 OPERATION ..........................8 FOLLOWING OPERATION……………………………………………………………………..9 PREMORMING MAINTENANCE………………………………………………………………9 MAINTENANCE ......................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing your Tar River Equipment Tiller. Your rotary tiller is design to be used on 540 rpm tractors. It is important to properly maintain in keep in place all safety guards and shields that came with your machine. -
Page 4: Safety Signal Words
SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. -
Page 5: Safety Decal Care
SAFETY DECAL CARE Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: ... -
Page 6: During Operation
Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your new equipment. Practice operation of your equipment and its attachments. Completely familiarize yourself and other opera- tors with its operation before using. ... -
Page 7: Highway And Transport Operations
DO NOT operate near the edge of drop-offs or banks. DO NOT operate on steep slopes as overturn may result. Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops. HIGHWAY AND TRANSPORT OPERATIONS ... - Page 8 Watch for obstructions overhead and to the side while transporting. Always operate equipment in a position to provide maximum visibility at all times. Make allowances for increased length and weight of the equipment when making turns, stopping the unit, etc. ...
-
Page 9: Operation
Operation Before attaching the rotary tiller to the tractor, check the unit to ensure there is oil in the top and side gearbox. See Maintenance section for lubricant specifications. Before beginning operation, check oil and grease points. Oil level: Top gearbox 1 1/2” from the end of the dip stick. When sitting slightly tilted forward, oil should at the bottom of the fill plug on the side gearbox cover. -
Page 10: Following Operation
ture wearing of the slip clutch. Slip Clutch adjustments Slip Clutch must be adjusted before first use or after a storage period. Using a marker, scribe a line across the exposed edges of the clutch plate and friction discs. Back off compression nuts to free friction discs by turning each nut exactly 2 revolutions. Start the tractor and run the driveline at a low idle to slip the friction discs. -
Page 11: Premorming Maintenance
PERFORMING MAINTENANCE Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed build- ing. The exhaust fumes may cause asphyxiation. ... -
Page 12: Parts Breakdown - Yct
Tar River Equipment TXG-040 - TXG-050 - TXG-060... - Page 13 Tar River Equipment TXG-040 - TXG-050 - TXG-060 Position Part # Description RC400000 “R” Clip 4mm YT1066010204 Hitch Pin TX0202 Lower Hitch Bracket TX0203 “U” Bolt, Lower Hitch Bracket NM120000 Hex Nut 12MM BM101530 Bolt 10 x 30 TX0101 A Frame TX030402 Support—Gearbox Shield...
- Page 14 Tar River Equipment TXG-040 - TXG-050 - TXG-060...
- Page 15 Tar River Equipment TXG-040 - TXG-050 - TXG-060 Position Part # Description BM812520 Bolt 8 x 1.25 x 20 B3030500 Bearing 30305 SRI62000 Snap Ring 62 Internal TX0511 Spacer TX0508 Idler Gear NM24150 Nut—Rotor SW2400 Star Washer—Rotor TXC0509 Gear - Bottom...
-
Page 16: Parts Breakdown - Txg
Tar River Equipment YCT-060 - YCT-066 - YCT-074 - YCT-082... - Page 17 Tar River Equipment YCT-060 - YCT-066 - YCT-074 - YCT-082 Position Part # Description BM101525 Bolt 10 x 1.5 x 25 YT1058010100 YCT-060 Main Frame YT1066010100 YCT-066 Main Frame YT1074010100 YCT-074 Main Frame YT1082010100 YCT-082 Main Frame RC400000 “R” Clip 4mm...
- Page 18 Tar River Equipment YCT-060 - YCT-066 - YCT-074 - YCT-082...
- Page 19 Tar River Equipment YCT-060 - YCT-066 - YCT-074 - YCT-082 Position Part # Description YT10660211 Lifting Hook OS65408 Oil Seal 65 x 40 x 8 YT10660206 Output Gear DP1415000 Drain Plug M14 x 1.5 LNM2400 Lock Nut 24mm OR253 O-Ring...
-
Page 20: Parts Breakdown - Rxt
Tar River Equipment RXT-080 - RXT-088 - RXT-096... - Page 21 Tar River Equipment RXT-080 - RXT-088 - RXT-096 POS. Part # Description Lower Hitch Pin - Cat. 1 & 2 SB100755 RC400000 “R” Clip 4mm Lynch pin SB100756 A Frame RX0100 YT1066010204 Top Hitch Pin Cat. 1 RX0310 Cap - Front Gearbox...
- Page 22 Tar River Equipment RXT-080 - RXT-088 - RXT-096...
- Page 23 Tar River Equipment RXT-080 - RXT-088 - RXT-096 POS. Part # Description Skid Bracket RX0505 Bolt - 12 x 1.75 x 35 BM1217535 NM2415 Nut Lock - 24mm Side Drive Cover RX0503 BM812516 Bolt 8 x 1.25 x 16 DP1615000V Breather cap - Side housing Snap Ring Ext.
- Page 24 Tar River Equipment RXT-080 - RXT-088 - RXT-096...
- Page 25 Tar River Equipment RXT-080 - RXT-088 - RXT-096 POS. Part # Description Bearing - 6308 B6308 Flat Washer 30mm FW3000 Snap Ring Ext. 30mm SRE30000 O Ring - 92.5 x 3.55 OR925355 End Cap - Rotor Right side RX0405 Bolt 10 x 1.5 x 35...
-
Page 26: Pto Breakdown
PTO Shaft Pos. Part # Description DP1075-40 PTO Yoke - Series 40 DP1075-60 PTO Yoke - Series 60 DP1079-40 Female Yoke and Tube (tractor end) - Series 40 DP1079-60 Female Yoke and Tube (tractor end) - Series 60 DP1076-40 Cross and Bearings - Series 40 DP1076-60 Cross and Bearings - Series 60 DP1078-40... -
Page 27: Limited Warranty
Warranted parts shall be provided at no cost to the user at an authorized Tar River Equipment dealer during regular working hours. Tar River Equipment reserves the right to in-spect any equipment or parts which are claimed to have been defective in material or work-manship.
