- Page 1 USER MANUAL...
-
Page 2: Register Online

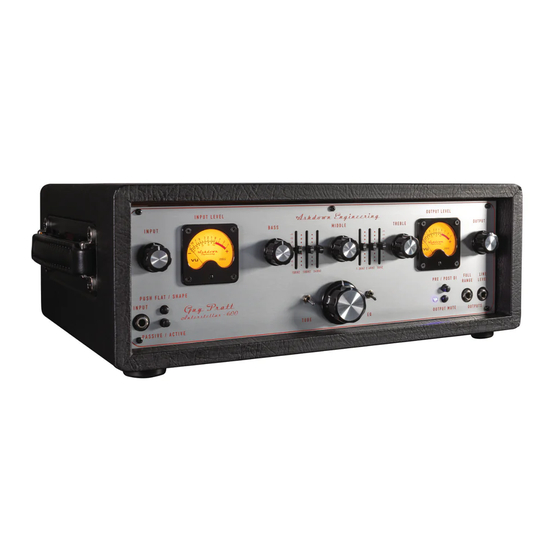

THANK YOU Thank you for purchasing your Ashdown Engineering Amplifier and welcome to the family! We really think you’ve made the right choice and know that this amplifier will give you years of great tone and service. It is a machine though and needs to be looked after, please read... - Page 3 USER GUIDE INTERSTELLAR-600 FRONT PANEL REAR PANEL...
-
Page 4: Front Panel
INTERSTELLAR-600 USER GUIDE FRONT PANEL INPUT - There is a single instrument input provided linked to a PASSIVE/ ACTIVE selector switch. The Passive input (switch out) is high sensitivity and also high impedance to suit the output from PASSIVE basses. The Active input (switch in) is low sensitivity and lower impedance to suit the output from ACTIVE basses. - Page 5 TUBE DRIVE ON/OFF - This toggle switches the valve drive section ON or OFF. This function may also be controlled from the Ashdown 4 way footswitch. For the footswitch to operate this button must be in its OFF position. E.Q. ON / OFF - This toggle switches the Equalisation section ON or OFF i.e.
- Page 6 INTERSTELLAR-600 USER GUIDE PUSH TO MUTE - When pushed IN this button mutes the output from the preamp to the power amp, mutes the output from the D.I. Socket and mutes the output from the LINE Out socket as well. A blue LED is provided next to this switch to indicate when the amplifier is muted.
- Page 7 INTERSTELLAR-600 USER GUIDE LINE LEVEL OUTPUT -This output socket provides a line level/post Output Level control signal for connection to an external power amplifier driving additional speaker cabinets. OUTPUT LEVEL - The OUTPUT control adjusts the overall level of the amplifier.
-
Page 8: Rear Panel
4-WAY FOOTSWITCH SOCKET - For the 4 way footswitch to operate it is essential that the corresponding front panel push buttons be in the OUT position. This is a mono jack socket for connection of the Ashdown 4 way footswitch (sold separately) only. Always connect this prior to turning on the... - Page 9 INTERSTELLAR-600 USER GUIDE FX SEND / RETURN - A serial effects loop is provided at a level of 0dB. The EFFECTS SEND socket can also be used as a Line Out socket if required as the signal path through the preamp is only broken when a jack plug is inserted into the EFFECTS RETURN socket.
-
Page 10: Specifications
INTERSTELLAR-600 USER GUIDE SPECIFICATIONS INPUTS High Input Impedance 3.9M Ohms Input range 150mV to 20V p-p Low Input Impedance 10K Ohms Input range 300mV to 40V p-p Line Input Impedance 22K Ohms Input level 0dBu nominal Effects Return Impedance 22K Ohms Input level 0dBu nominal OUTPUTS Tuner Output... - Page 11 INTERSTELLAR-600 USER GUIDE NOTES:...
