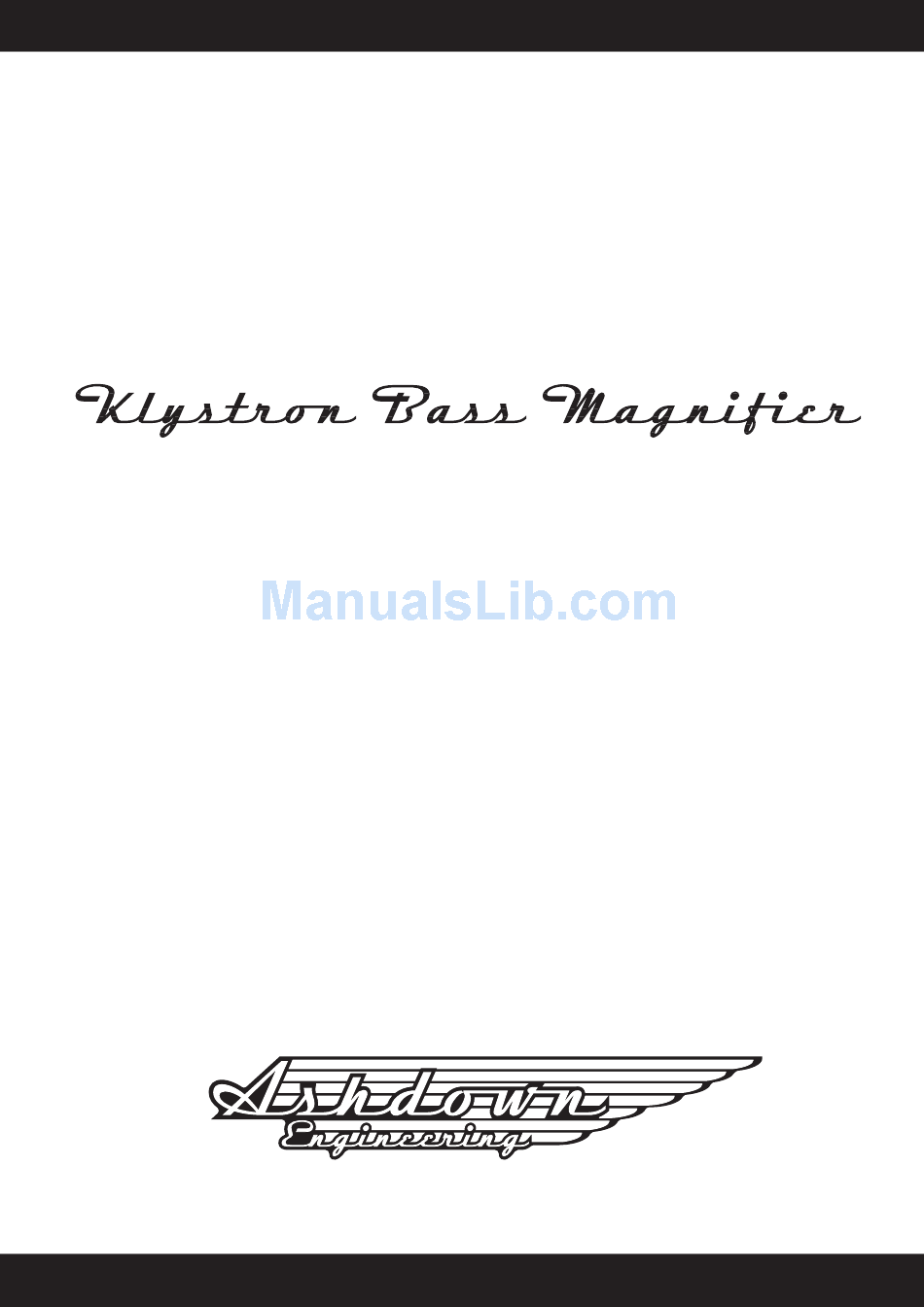

  • Page 1 PERATING NSTRUCTIONS...

  • Page 2: Important Safety Instructions

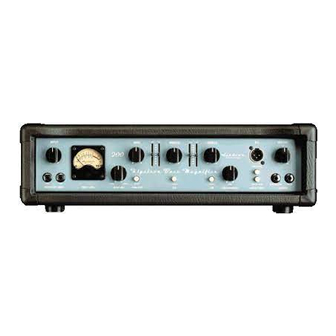

    ASHDOWN KLYSTRON BASS MAGNIFIER OPERATING INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING - When using electrical products, basic precautions should be followed, including the following: 1. Read all the instructions before using the product. 2. Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool, or the like.
  • Page 3 THE KLYSTRON BASS MAGNIFIER DESIGN PHILOSOPHY This is a NO COMPROMISE design using the best parts available wherever possible. Some examples of this are as follows:- • Gold plated jack sockets for reliability and long life. • Full Metal XLR sockets for strength and their positive latching facility.

  • Page 4: Rear Panel Facilities

    MEME TYPE ET CALIBRE. 115 V - CAUTION T4 A 230 V - T2 A ATTENTION MANUFACTURED IN ENGLAND BY:- MAINS INPUT 300V A 115V @ 2.5 A ASHDOWN ENGINEERING SERIAL No:- MUTE F/S LINE INPUT EFFECTS MODEL No:- OUTPUT LEFT RIGHT...
  • Page 5 The lightning flash with the arrow head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within this product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance ( servicing ) instructions in the literature accompanying this product.

  • Page 6: Front Panel Facilities

    FRONT PANEL FACILITIES 180Hz 340Hz 1.3KHz 2.6KHz D.I. OUTPUT INPUT BASS MIDDLE TREBLE PRE/POST EQ HIGH CLEAN GRIND IN/OUT IN/OUT IN/OUT LEVEL PUSH TO MUTE TUNER/LINE OUT SUB OUT INSTRUMENT INPUT INPUT LEVEL INPUT MIX PUSH FLAT E.Q. SUB-HARMONICS OUTPUT MUTE OUTPUTS INPUTS There are two choices of instrument input, these are marked HIGH and LOW.The HIGH input is...
  • Page 7 Secondly, If more control is required then the sliders can also be used to tailor the E.Q. in the regions between the main tone controls. This provides a very versatile Equalisation section, it is simple to understand and operate, yet provides a wide degree of variation.

  • Page 8: Specifications

    SPECIFICATIONS PREAMPLIFIER Inputs High Input Impedance - 3.9M Ohms Input Range 150mV to 20V p-p Low Input Impedance - 10K Ohms Input Range 300mV to 40V p-p Stereo Line Inputs Impedance - 22K Ohms Input Level 0dBu Nominal Effects Return Impedance - 22K Ohms Input Level 0dBu Nominal Outputs...
