Summary of Contents for Ashdown Tone Pocket
- Page 2 EQ, line input (to connect to your smart phone or music player) and a headphone output. From the top, the Tone Pocket is the answer to all of your practice needs. Connect your music device via the line-in, plug in your bass and monitor through your headphones with a sound specially optimised for bass guitar.
- Page 3 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP Front Panel: Front Panel: 26mm INPUT - Instrument input socket for use with VOLUME - Rotary control master volume output level Jack to Jack control. LINE IN - 3.5mm Jack socket for use PHONES - 1/4”...

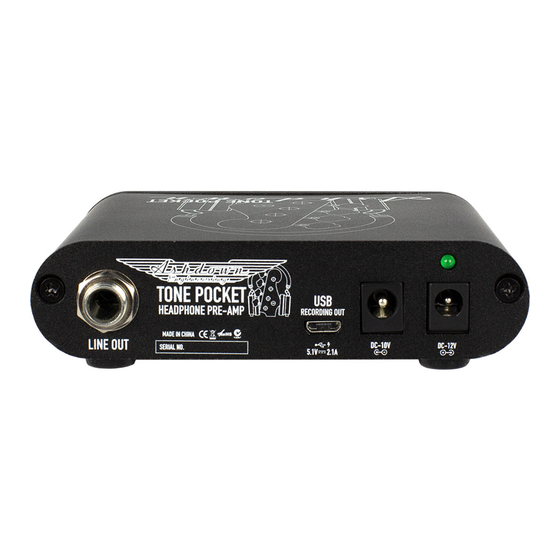

- Page 4 LINE OUT - Balanced line out DC 10v - Centre pin negative 10v power supply input for charging. USB - Use the Tone Pocket as a sound card with its built in USB codec record DC-12v - Centre pin positive 12v power and monitor your recordings on the go.
- Page 5 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP Top View: 108mm 95mm...
- Page 6 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP USB CODEC SPECIFICATIONS: - Compliant with USB 2.0 Full Speed Operation - 48K / 44.1KHz Sampling Rate for Both Playback and Recording - Soft Mute Function - Embedded High Performance 16-Bit Audio DAC - Embedded 16-Bit ADC Input - Embedded 5V to 3.3V Regulator for Single External 5V Operation...
- Page 7 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP ELECTRICAL PARAMETERS:...
