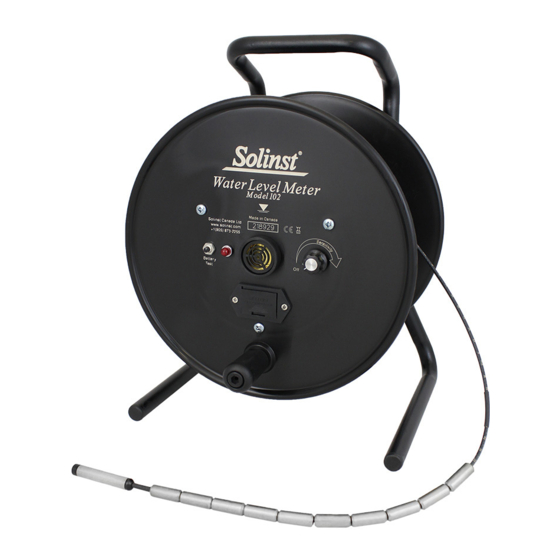

Solinst 102 Quick Start Manual

More Info | Instructions | Get Quote
Tools and Materials Needed
1. Model 102 or 102M Replacement Cable
• Available with P4 or P10 Probe attached
• Jumper Cable (New Cable - 3 Pin to 2 Pin) (#110508)
• 3 Pin Cable Molex Connector
• Grommet
2. Phillips or Robertson Screwdriver
3. Wire Cutters
Note: The Jumper Cable is required if you are connecting the new
cable to a Mk1 Model 102 Water Level Meter that has a
Molex connector from the faceplate electronics with a 2 pin
connection.
Instructions
1. Remove the battery. Unwind the old cable, and cut the cable
at the end near the grommet.
2. Place the reel on a flat workbench with the faceplate up.
Undo the three screws from the faceplate, and slowly
remove it from the reel.
3. For Mk1 Model 102 Water Level Meters, disconnect
old Cable Molex Connector from the Faceplate Molex
Connector.
Wires Connected
to Faceplate
Grommet
Black Plastic Bridge

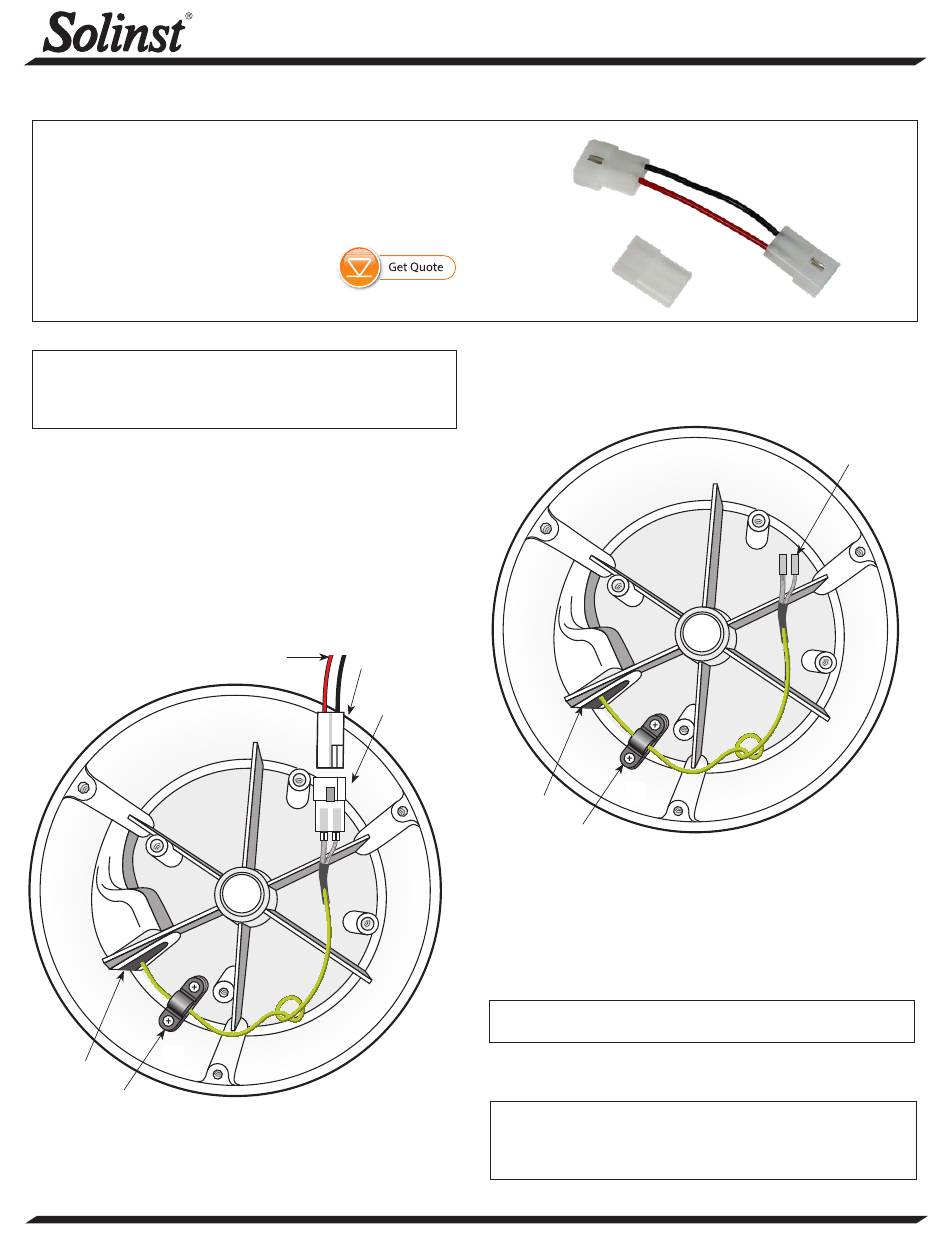

Inside View of Mk1 Model 102 Reel Hub
Showing Connection Detail
(Page 1 of 2)
Connecting Laser Marked Replacement Cable to Reel
Faceplate Molex
Connector
Cable Molex
Connector
High Quality Groundwater and Surface Water Monitoring Instrumentation
3 Pin Cable
Molex Connector
4. For the Mk2 Model 102 Water Level Meters, press down on
the white terminals of the push-release fittings on the circuit
board to remove the cable leads.
Grommet
Black Plastic Bridge
Inside View of Mk2 Model 102 Reel Hub
Showing Connection Detail
5. Undo the two screws from the black plastic bridge holding
the cable inside the reel hub, and remove the top piece of
the bridge.
Note: There is no black plastic bridge in a 102M Mini reel.
6. Pull the cable through the grommet and remove from the
reel.
Note: The replacement cable comes with a new grommet.
The old grommet may be replaced with the new one,
or left in if not damaged.
Model 102 and 102M
Jumper Cable
Cable Leads
