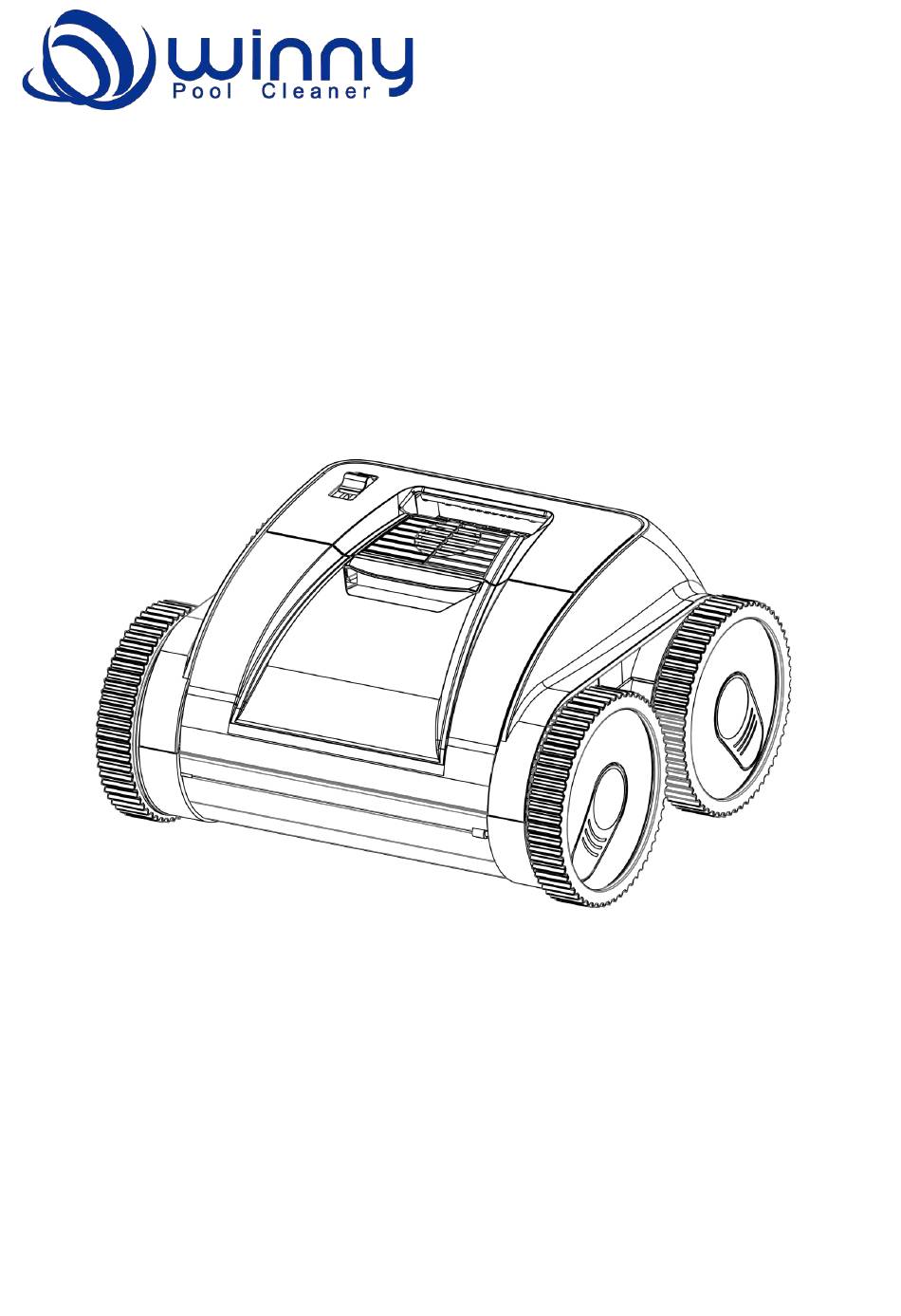

- Page 1 ROBOTIC POOL CLEANER Model: HJ3172 USER MANUAL...
-
Page 3: Important Precaution
Important Precaution Thank you for purchasing Winny Robotic Pool Cleaner. Please read through the entire manual before using your new robotic pool cleaner. We are not held liable for any loss or injury caused by improper use. READ AND FOLLOW ALL INSTRUCTIONS... - Page 4 14. Charge the cleaner before battery is exhausted. Stop the cleaner and charge it when power is decreased. 15. Do not over charge the cleaner which will reduce the battery life. 16. Grease is contained in pump motor seals, if ever there is leakage, water can be slighted contaminated.
-
Page 5: Table Of Contents
Contents Important Precaution ..............1 Attention ..................4 1. Brief Introduction ..............5 2. security ..................5 3. General Specification ............. 6 4. Operation ................7 4.1 Switch button and indicator ........7 4.2 How to charge ............... 8 4.3 Filter cleaning ............... 9 5. -
Page 6: Attention
Attention 1. Put into the pool with the cleaner bottom towards the wall. Hold the top handle and switch on the cleaner. The cleaner will start working after 20 seconds when emptying trapped air inside (make sure to empty the inside air in order to make the robot work well), then the cleaner can immerse into the pool floor. -
Page 7: Brief Introduction
1. Brief Introduction The robotic pool cleaner HJ3172 is a new type of highly efficient and energy-saving swimming pool cleaning robot. It cleans the pool walls and bottom automatically without replacing the pool water. It is totally environmental-friendly. For safe operation, the cleaner is powered by a rechargeable lithium battery (12.6V, 8.6Ah). -
Page 8: General Specification
3. General Specification Rated input voltage of charger 100VAC-240VAC Rated input frequency of charger 50Hz/60Hz Max. charging voltage 12.6VAC Charging current 1.8A Running time max. 90min Flow rate max. 10m³/h (appr. 2642gal/h) Filter density 180μm Running speed max. 11m/min (appr. 36ft/min) IP Grade IPX8 Max. -
Page 9: Operation
4. Operation 4.1 Switch button and indicator ② Indicator ① Switch button Item Function Description Push the button to to power on the cleaner; Switch to power Push the button to to power off the cleaner. ① on/off Remark: the cleaner starts to clean the wall firstly for around 15 minutes, then the floor, then a second cycle. -
Page 10: How To Charge
4.2 How to charge 4.2.1 Remove the cleaner from the pool ① Switch off (No indictor flashes) the cleaner ② Charge the cleaner indoor and at least 3m (appr. 10ft) from the edge of the pool for charging. ③ Red light indicates the battery is being charged. ④... -
Page 11: Filter Cleaning
4.3 Filter cleaning 4.3.1 Open the top cover: Put the robot aside the pool and open the top cover (Figure 4-1), the filter basket is located as show in Figure 4-2. Figure 4-1 Figure 4-2 4.3.2 Take out the filter basket (Figure 4-3) Figure 4-3 4.3.3 Wash filter basket (Figure 4-4) 4.3.4 Re-install the filter basket in reverse steps... -
Page 12: Packing List
5. Packing list Item Name Model QTY (pc) Remark Cleaner HJ3172 In carton Charger In plastic bag User manual In plastic bag Hook In plastic bag... -
Page 13: Warranty
6. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the manufacturer. Warranty information: 1. The warranty is covered for motors and PCB for 12 months from the date of its original purchase.
