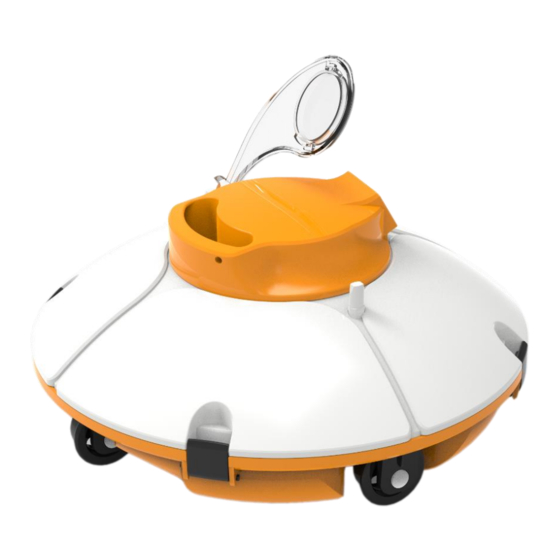

Winny FRISBEE-HJ1101J User Manual

Robotic pool floor cleaner for flat floor only
Hide thumbs

Advertisement

Table of Contents

ROBOTIC POOL FLOOR CLEANER
FRISBEE©-HJ1101J
FOR FLAT FLOOR ONLY
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRISBEE-HJ1101J and is the answer not in the manual?

Questions and answers

John Bridger.
May 28, 2025

Price of replacement charger unit.

1

Subscribe to Our Youtube Channel

Related Manuals for Winny FRISBEE-HJ1101J

Summary of Contents for Winny FRISBEE-HJ1101J

  • Page 1 ROBOTIC POOL FLOOR CLEANER FRISBEE©-HJ1101J FOR FLAT FLOOR ONLY USER MANUAL...

  • Page 2: Table Of Contents

    Thank you for purchasing Winny Robotic Pool Cleaner. If you have any questions or issues, please contact your local dealer for customer service. Table of Contents Important Precautions....................1 Introduction ......................2 Appearance characteristics & structure ............III. Specifications ......................3 IV.

  • Page 3: Important Precautions

    Important Precautions 1. Please read the manual carefully, and use the cleaner according to the manual. We are not held liable for any loss or injury caused by improper use. 2. Use the accessories recommended or sold by the manufacturer only. 3.

  • Page 4: Introduction

    pay more attention to it. 19. Do not use or store the cleaner near any heat source. 20. It is forbidden to pierce the shell of the cleaner with nails or other sharp objects. It is forbidden to hammer, impact or throw the cleaner. I.

  • Page 5: Specifications

    Chassis Scraper III. Specifications 1. Name: Cleaner 2. Model: HJ1101J 3. Working voltage: 12.6V 4. Power: 30W 5. Working Cycle: 60min 6. Rated input voltage of adapter: 100Vac-240Vac 7. Input power of adapter: 47Hz-63Hz 8. Rated output current of adapter: 1A 9.
  • Page 6 10. Charging time: 3-4h 11. Battery capacity: 2500mAh 12. Max. cleaning surface: 50m² 13. Filter capacity: appr. 42L/min 14. Filter capability: 180μm 15. Pool water temperature: 10°-35°C 16. Moving speed: appr. 16m/min 17. IP Grade: IPX8 18. Charging environment temperature: 0°-45°C 19.

  • Page 7: Operation Instruction

    IV. Operation instruction 4.1. Precautions a. When putting the cleaner into the pool, the air inside the cleaner should be discharged as follow: ① Hold the cleaner and submerge it vertically for 5-6 seconds until no bubbles come out (Fig. 1). ②...
  • Page 8 Install the swing plate and floating handle before use.  d. Install the scraper before use to avoid possible dirt leaks. e. Please ensure that the top cover of the cleaner is tightly assembled to its chassis.
  • Page 9 f. When fastening the top cover and chassis, please focus more on the installation direction as shown in the below figure: the arrow position near the buckle of top cover should be aligned with the hole position near the buckle of chassis. g.
  • Page 10 h. Power off the cleaner after use. Do not touch the wall to avoid scratching the wall or damaging the cleaner when putting into or lifting out of the pool. Hold the cleaner on the water surface for 10-15 seconds until it empties before removing from the pool.
  • Page 11 a. Setting wheel angle and running path Groove for wheel limit piles A, B, C are printed on the groove of the wheel limit pile of the chassis. Wheel limit piles will be installed by default on C (left) and A (right). Wheel buckle...
  • Page 12 Wheel limit pile As shown in the figure, push the wheel buckle, pull down the wheel components, and remove them. Then re-install the limit pile into chassis to realize the different running paths. b. Four settings for wheels are recommended: Setting 1: default setting: B-C, for most of pools...
  • Page 13 Wheel Angle Running path Setting 2: C-A, when the turning angle is too large...
  • Page 14 Wheel Angle Running path...
  • Page 15 Setting 3: C-C, when the length and width of the swimming pool are large Wheel Angle Running route...
  • Page 16 Setting 4: B-A, for round pools Wheel Angle Running route Note: These are the recommended settings. Different settings may work better for your pool.
  • Page 17 4.4 Cleaning the filter tray a. Open the cleaner by the clips b. Take off the filter tray...
  • Page 18 Clean the filter tray and chassis d. Reassemble the cleaner...
  • Page 19 e. Clap on the clips...

  • Page 20: Trouble Shooting

    V. Trouble shooting Symptom Possible reason Solution Low battery Recharge the battery Buzzer silent or impeller rotating after power on Internal fault Contact after-sales service The buzzer still alarms or the impeller does not rotate after the Internal fault Contact after-sales service cleaner is fully immersed in the water Remove the cleaner from the pool...

  • Page 21: Buzzer Information

    VI. Buzzer information State Expression Buzz before not fully immersed in the water; Stop buzzing after fully Power on immersed in the water Power off Stopping buzzing VII. Packing list Item Name Model QTY (pc) Application Remark Cleaner body HJ1101J In carton Adapter In carton...

  • Page 22: Warranty

    VIII. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the factory. Warranty information: 1. The warranty is covered for 12 months from the date of its original purchase. 2. This warranty is void if the product has been altered, misused, or has been repaired by unauthorized personnel.
