FCP-PA-701-NF
Risk of Electric Shock
Disconnect the power supply before making electrical connections. Contact with components carrying hazardous
voltage can cause electric shock and may result in severe personal injury or death.
Risque de décharge électrique
Débrancher l'alimentation avant de réaliser tout branchement électrique. Tout contact avec des composants
conducteurs de tensions dangereuses risque d'entraîner une décharge électrique et de provoquer des blessures
graves, voire mortelles.
Mounting
You can mount the FCP thermostat directly on the wall or to a junction box.
To mount the thermostat directly on the wall, complete the following steps:
1. To mark the screw holes, hold the back housing of the thermostat against the wall and use a pencil to lightly mark the holes. Ensure
the opening in the center of the back housing aligns with the wires in the wall. Figure 2 shows the back housing.
2. Drill the holes.
3. Optional: Insert drywall anchors into the holes.
4. Use the mounting screws to attach the back housing to the wall. See Figure 2.
5. Connect the wires to the front of the thermostat according to your equipment. See Wiring for diagrams.
6. Attach the front of the thermostat to the back housing. See Figure 3.
7. Optional: Insert the lock screw. See Figure 3.

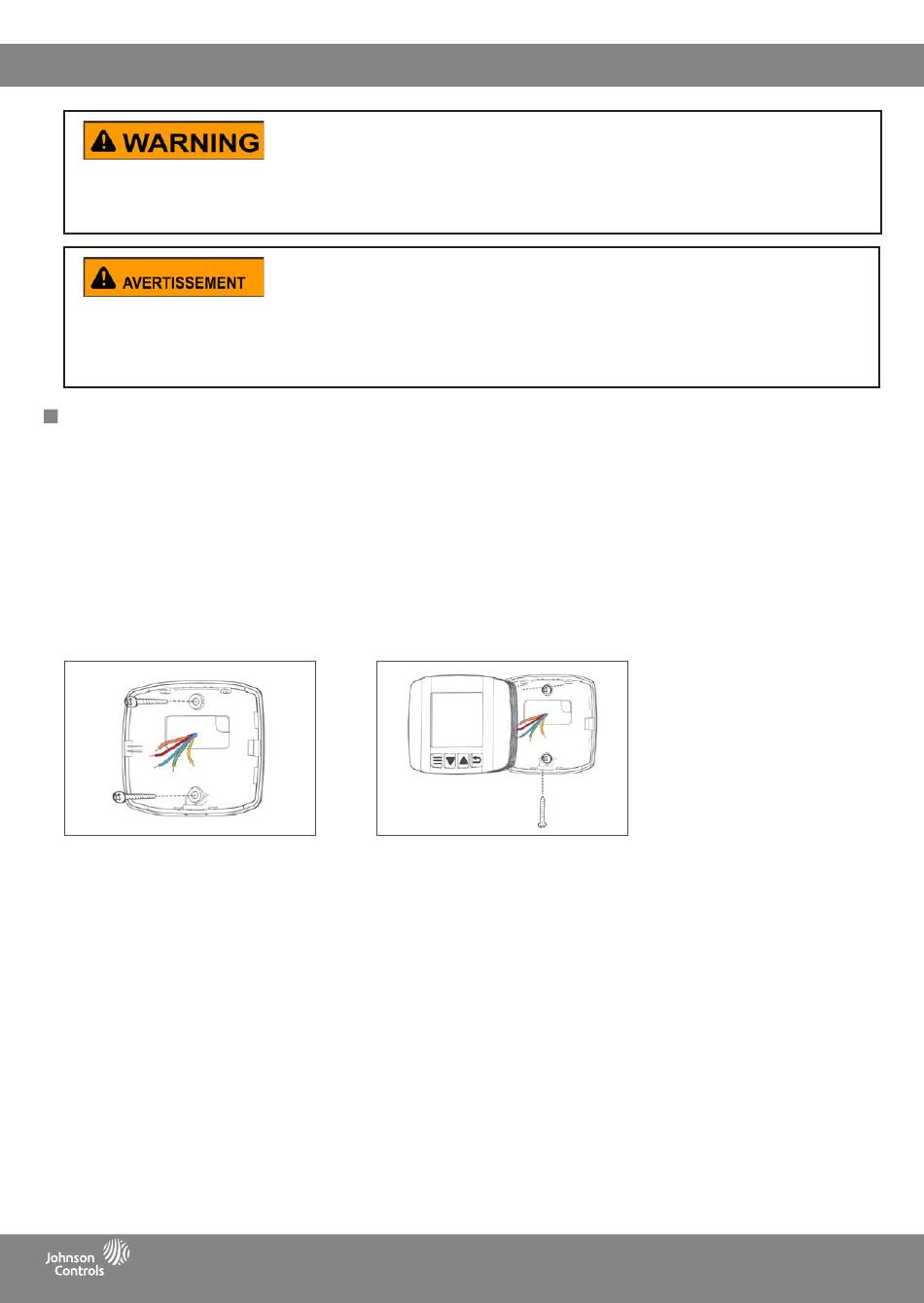

Figure 2: Mounting the back housing to the wall
To mount the thermostat to a junction box, complete the following steps:
1. Pull the wires through the hole in the junction box.
2. Insert the mounting screw in the top screw hole of the junction box. Drive the screw partially in, leaving it protrude 0.07 in. to 0.12 in.
(2 mm to 3 mm).
3. Place the top screw hole of the trim plate over the partly inserted screw in the junction box, then pull the wires through the trim plate
opening.
4. Slide the trim plate down to hook the plate onto the screw. See Figure 4.
5. Place the back housing in the trim plate opening.
6. Use the included screws to attach the back housing to the trim plate. The bottom screw joins with the junction box. See Figure 5.
7. Connect the wires to the front of the thermostat according to your equipment. See Wiring for diagrams.
8. Attach the front of the thermostat to the trim plate. See Figure 6.
9. Optional: Insert the lock screw.
Figure 3: Attaching the front housing to the back housing
2
LIT-12013797
