Rev. F, October 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the thinklogical Velocitykvm-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Belden thinklogical Velocitykvm-4

Summary of Contents for Belden thinklogical Velocitykvm-4

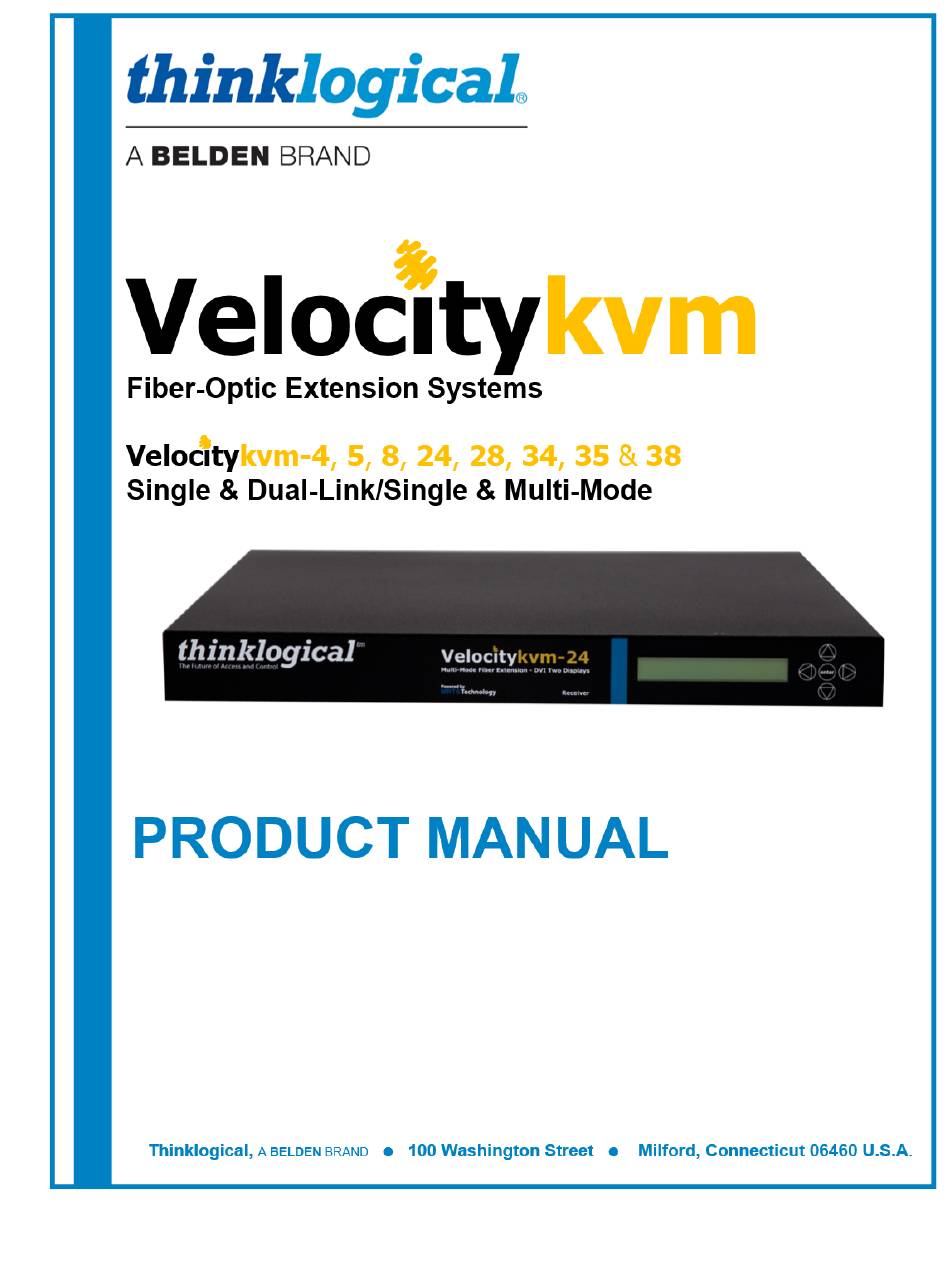

  • Page 1 Rev. F, October 2021...
  • Page 2 Copyright Notice Copyright © 2021. All rights reserved. Printed in the U.S.A. Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 All trademarks and service marks are property of their respective owners. ® Subject: VelocityKVM Fiber-Optic Extension Product Manual...

  • Page 3: Table Of Contents

    Table of Contents PREFACE........................... 4 About Thinklogical, ................... 4 A BELDEN BRAND Note and Warning Symbols ......................5 Class 1 Laser Information ......................5 INTRODUCTION ........................6 The Logical Solution ........................6 Theory of Operation ........................6 The Fiber Extension System ....................6 Multi-Mode Fiber .......................
  • Page 4 REGULATORY & SAFETY COMPLIANCE ................42 Safety Requirements ........................ 42 Symbols Found on Our Products ..................42 Regulatory Compliance ......................42 North America ........................42 Australia & New Zealand ...................... 42 European Union ........................42 Declaration of Conformity ....................42 Standards to Which Our Products Comply ................

  • Page 5: Preface

    Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001:2015 standard. Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis, MO (http://www.belden.com). For more information about Thinklogical products and services, please visit https://www.thinklogical.com.

  • Page 6: Note And Warning Symbols

    Note and Warning Symbols Throughout this document you will notice certain symbols that bring your attention to important information. These are Notes and Warnings. Examples are shown below. Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, as shown here.

  • Page 7: Introduction

    INTRODUCTION The Logical Solution VelocityKVM Fiber-Optic Extension Systems are designed for high performance visual applications that require video as well as peripheral support. The system allows users, via fiber- optic cable, to station and operate video monitors and peripherals up to 40 kilometers away from the controlling computer, securely and without loss of resolution.

  • Page 8: Multi-Mode Fiber

    Why Fiber? In heavy-volume, metropolitan area networks, the limit on how much bandwidth or data that can be carried across a copper line can become a bottleneck for enterprise access and ultimately, for revenue. Fiber Optic Cable alleviates this problem by offering substantially greater bandwidth. Multi-Mode Fiber Transmission Distance (up to 350m using 50/125µm fiber) Multi-mode is designed for transmission distances such as those found within a single building or facility...

  • Page 9: System Features

    System Features Each VelocityKVM Fiber system includes the following features: • Supports all single-link DVI video resolutions (VelocityKVM-5 analog RGB resolutions as well). • Supports all Dual-Link DVI resolutions (VelocityKVM-8, -28, -38). • 6.25 Gbps signal transmission via fiber optic cable; No RF interference. •...

  • Page 10: Velocitykvm Extender Options

    VelocityKVM Extender Options VelocityKVM Extenders come with a variety of peripheral device options that include or eliminate several types of USB and FireWire, Network ports and Separate Data Paths. The examples on pgs. 10-12 are shown with the VelocityKVM-24 Tx and Rx with LC-type connectors.
  • Page 11 V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 10...
  • Page 12 V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 11...

  • Page 13: Professional Audio

    VelocityKVM-24P DVI 2 Display/KVM Professional Audio Extender Option The VelocityKVM-24P Professional Audio option includes six audio modules with each unit. Any two types will fit at once into each transmitter and each receiver unit. The modules include TOSLINK IN, AES IN, S/PDIF IN, TOSLINK OUT, AES OUT and S/PDIF OUT. The VelocityKVM-24A Professional Audio option includes the same features as the -24P but eliminates USB 2.0 for increased security (USB HID only).

  • Page 14: No Router Mode

    No Router Mode Switching Thinklogical Extenders without a Matrix Switch Router The No Router Mode on many Velocity Receivers allows hot-key strokes to switch KMASS data control and video sources when (Keyboard, Mouse, Audio, Serial, Stereo 3D) directly connected to multiple Velocity Transmitters. Do not use No Router Mode when connecter to a router.
  • Page 15 DDC Differences A Transmitter gets its DDC table from the Receiver. Typically, the Transmitter and Receiver tables match, but in the KM and KMA modes, there will be a mismatch. A Vel-4 Transmitter uses DDC Table 1, a Vel-24 Transmitter uses Tables 1 and 2, etc. A Vel-34 Receiver will return 4 DDC tables to a Transmitter.
  • Page 16 VEL-34 No Router Mode VEL-W0NM34-LCRX V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 15...

  • Page 17: Using Hot Keys

    VEL-35 No Router Mode VEL-W0NM35-LCRX Using Hot-Keys VelocityKVM Receivers that support No Router Mode have default Hot-Keys already installed. At Turn-on, the unit ID will be displayed. • Ensure OOB (Out of Band) is off when in No Router Mode. •...

  • Page 18: Technical Specifications (Table 1)

    Technical Specifications Thinklogical VelocityKVM systems are designed to the following specifications: PHYSICAL TRANSMITTER Video System 4, 8 DVI-D (2); System 24, 28, 34, 38 DVI-D (4); System 35 DVI-D (3); System 5 DVI-I (2) Audio MIC/Line 3.5mm Jack Serial Port DB9 Female 50Ω...

  • Page 19: Velocity Unbalanced Audio Specifications (Table 2)

    Optical Cable Multi-mode Fiber Type: 50 or 62.5 µm (Not supplied) Single-mode Fiber Type: SM/UPC, 9 µm Up to 65 meters with Type OM1 Up to 350 meters with Type OM2 Optical Distance Up to 650 meters with Type OM3 Up to 1000 meters with Type OM4 Height: 1.72”...

  • Page 20: Velocitykvm-5 Supported Rgb Resolutions (Table 3)

    VelocityKVM-5 Supported RGB Resolutions Vertical Horizontal Pixel Clock Active Resolution Total Freq Freq Freq Video Standard Pixels Lines Lines (Hz) (kHz) (MHz) 31.2 Honeywell 31.5 25.175 Industry Standard 37.9 31.5 VESA 37.5 31.5 VESA 43.3 VESA 31.5 28.32 Industry Standard 35.1 VESA 37.9...

  • Page 21: Hardware

    HARDWARE Contents When you receive your Thinklogical VelocityKVM Extender , you should find the following items: ® • VelocityKVM Extender Transmitter • VelocityKVM Extender Receiver • AC power cord, PWR-000006-R (International connections may differ) – Qty 2 • VelocityKVM Extender Cables ✓...

  • Page 22: Front Panel Display And Buttons

    Front Panel Display and Buttons The front-panel LCD display should be visible and accessible for system setup. The front panel buttons are used to configure special video settings and to review existing VelocityKVM Extender configurations. More detailed information on the Front Panel can be found in the Front Panel Usage section (Pg. 30). VelocityKVM-24 Extender Front Panel LCD Display Connecting the VelocityKVM Extender Types of Connections...

  • Page 23: Connection Diagram

    Rear Panel Views and Hardware Connections Velocitykvm-24 Multi-Mode Fiber Extension System – DVI Two Display Local USB HID or PS2 Keyboard/Mouse Fiber-Optic Cables: L1: Data Tx to Rx and Video 1 L2: Data Rx to Tx L3: Video 2 USB HID or PS2 Keyboard/Mouse Copper Cables: Data...

  • Page 24: Peripheral And Update Ports

    Peripheral and Update Ports The following Transmitter and Receiver rear panel diagrams denote the functions of the various peripheral device ports, including the FireWire and Network options and their LED indicators for all VelocityKVM Extender models. Refer to the Quick Start Guides in Appendix B for more information. Standard VelocityKVM Transmitters and Receivers Peripheral and Update Ports, LED Indicators Local Keybd/Mouse (HID or PS2)

  • Page 25: Network Option

    The Network Option The Network option extends 10/100 Mbps Ethernet between the Transmitter and the Receiver over fiber. There are two Network Ports on each extender, labeled 1 and 2. A single network can uplink directly to any Network Port on the Transmitter or Receiver with a CATx cable. Up to three 10/100 Mbps Ethernet devices can be connected to the other ports;...
  • Page 26 Velocity-5 KVM Multi-Mode Extender Single-Head, Single-Link RGB/DVI L1 Fiber: Data Tx to Rx & Video L2 Fiber: Data Rx to Tx Transmitter VEL-W00M05-LCTX RGB/DVI OUT (local) RGB/DVI IN (from source) L2 Fiber: Data Rx to Tx L1 Fiber: Data Tx to Rx & Video Receiver VEL-W00M05-LCRX RGB/DVI OUT (Secondary)
  • Page 27 Velocity-24 KVM Multi-Mode Extender DVI 2 Display L1 Fiber: Data Tx to Rx & Video 1 L2 Fiber: Data Rx to Tx L3 Fiber: Video 2 Transmitter VEL-W00M24-LCTX DVI OUT 2 (local) DVI IN 2 (from source) DVI OUT 1 (local) DVI IN 1 (from source) L2 Fiber: Data Rx to Tx L1 Fiber: Data Tx to Rx &...
  • Page 28 Velocity-34 KVM Multi-Mode Extender DVI, 4 Display L1 Fiber: Data Tx to Rx & Video 1 L2 Fiber: Data Rx to Tx L3 Fiber: Video 2 L4 Fiber: Video 3 Transmitter L5 Fiber: Video 4 VEL-W00M34-LCTX DVI IN 4 (from source) DVI IN 3 (from source) DVI IN 2 (from source) DVI IN 1 (from source)

  • Page 29: Cables

    Velocity-38 KVM Multi-Mode Extender 2 Dual-Link DVI Displays L1 Fiber: Data Tx to Rx & Video 1 Primary L2 Fiber: Data Rx to Tx L3 Fiber: Video 1 Secondary L4 Fiber: Video 2 Primary Transmitter L5 Fiber: Video 2 Secondary VEL-W00M38-LCTX Dual-Link DVI OUT 2 (local) Dual-Link DVI IN 2 (from source)
  • Page 30 Video Cables Depending on the VelocityKVM Extender model, use the following video cables: Single-link: DVI-D Male Cable, 2 Meters (CBL000009-002MR) Single-link: DVI-I Male Cable, 2 Meters (CBL000013-002MR) RGB: HD15 to DVI-A Male Cable, 2 Meters (CBL000022-002MR) - VelocityKVM-5, Qty 1 Dual-link: DVI-D Male Cable, 2 Meters (CBL000023-002MR) V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v .

  • Page 31: Installation

    Installation All physical connections to the product use industry-standard connectors. Non-supplied cables are commercially available. All connections are found on the rear of the unit. Refer to the Quick Start Guides in Appendix B (pgs. 49-56) for more information. Set-Up Firmware Updates Firmware updates are available through Thinklogical.

  • Page 32: Sfp Los And Sfp Des Ok Signals

    SFP LOS and SFP Des OK Signal In the *System root menu, scrolling right or left will bring you to the SFP Loss of Signal and SFP Des OK Signal menus. The SFP Loss of Signal menu provides confirmation of lost or unused video signals at the Receiver and of lost or unused data-return signals at the Transmitter.
  • Page 33 The following table shows the expected SFP Loss of Signal and Des OK Signal indications for each model of a properly connected VelocityKVM Transmitter: V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 32...
  • Page 34 Velocitykvm Receivers EXAMPLE 1: VelocityKVM-4 Rx Front Panel LCD Display Modifiable Description Thinklogical Displays current revision (Scroll Up or Down to access top level *Menus.) Velocity RX4 V21.27 *System Scroll Right or Left within the System menu SFP LOSS # 9 8 7 6 5 4 3 2 1 1 indicates no signal/loss of signal.
  • Page 35 The following table shows the expected SFP Loss of Signal and Des OK Signal indications for each model of a properly connected VelocityKVM Receiver: V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 34...

  • Page 36: Menu Functionality

    Menu Functionality (Some menu options may not be available on all models.): TRANSMITTER: Display Modifiable Description *System LS Connected Indicates fiber status from TX to RX. (0=connected). Tx Ctrl Name (Tx only) Name entered on TX unit is displayed on RX unit. Load Defaults Loads factory default video configurations.
  • Page 37 *DDC DDC PROM Emula. Mode Options are Dynamic, Static and Passthru. In Dynamic mode, the EDID table* of the monitor connected to the RX is read and stored on the TX. After any change in monitor type a new EDID table will be stored on the TX. An EDID table is always presented to the video source, whether the TX is ON or OFF.
  • Page 38 VelocityKVM 5 Video Front Panel Menu TRANSMITTER Display Modifiable Description * Video VGA Connected An indication of whether VGA video is input to the Vis TX. Resolution input Active pixels x active lines vertical rate. Hor. Freq Horizontal frequency. Auto Phase Automatically adjusts the Sampling Phase to the best setting.
  • Page 39 *Display Modifiable Description Aux. Card ID Hardware ID of Auxiliary Card. Aux. Card FPGA Rev. FPGA Rev. of Auxiliary Card. Original KMASS Option to use previous Interface revisions. Allow Out Of Band Allows On-screen Display when used with Routers.* Alt. HOT Key Used to modify Out Of Band Hot Key.

  • Page 40: Saving Changes

    Saving Changes Save analog video configurations so that, following power up, the device can recall custom video settings. Thinklogical Velocity Tx24 VXX.XX Using the down arrow, scroll down to *System as shown below. *System Using the right arrow, scroll right until Store Values is displayed as shown below, then press enter. Store Values Yes/No.= Using the up arrow or down arrow scroll until Yes appears as shown below.

  • Page 41: Restoring Factory Defaults

    Restoring Factory Defaults Load the factory default video configurations. Thinklogical Velocity Tx24 VXX.XX Using the down arrow, scroll down to *System (below). *System Using the right arrow button, scroll right until Load Defaults is displayed (below), then press enter. Load Defaults Yes/No= Using the up arrow or down arrow, scroll until Yes appears (below), then press enter.

  • Page 42: Naming The Transmitter Unit

    Naming the Transmitter Unit Modify the name of the unit through the Transmitter. The name entered on the Transmitter will display on the Receiver unit. Thinklogical Velocity Tx24 VXX.XX Using the arrow down button, scroll down to *System as shown below. *System Using the right arrow, scroll right until Tx Ctrl is displayed (below), then press enter.

  • Page 43: Regulatory & Safety Compliance

    European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 USA Thinklogical’s products comply with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU, the WEEE Directive...

  • Page 44: Supplementary Information

    Electromagnetic Immunity EN 55024:2011+A1 CENELEC EN 55032:2015 EN 61000-3-2:2000 Harmonics EN 61000-3-3:2008 Flicker EN 61000-4-2:2009 Electro-Static Discharge Test EN 61000-4-3:2006 A1:2008, A2:2010 Radiated Immunity Field Test EN 61000-4-4:2004 Electrical Fast Transient Test EN 61000-4-5:2006 Power Supply Surge Test EN 61000-4-6:2009 Conducted Immunity Test EN 61000-4-11:2004 Voltage Dips &...

  • Page 45: How To Contact Us

    1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address: Please include the Return Merchandise Authorization number: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, CT 06460 USA Attn: RMA# V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v .

  • Page 46: Appendix A: Thinklogical's Full Line Of Velocitykvm Extenders

    Appendix A In the following part number examples, the inclusion of the USB 2.0 option is shown. (This is the U immediately following the VEL-). If no option is included, the U will be replaced by a 0. For the FireWire option, this will be an F and for the HID option, it will be a leading H.
  • Page 47 VelocityKVM-24 Multi-Mode Fiber Extenders Part Number Velocity KVM Extender Receiver, Dual Head Single Link DVI, USB 2.0, KMAS, Multi-mode, LC VEL-W00M24-LCRX Velocity KVM Extender Transmitter, Dual Head Single Link DVI, USB 2.0, KMAS, Multi-mode, LC VEL-W00M24-LCTX Velocity KVM Extender Receiver, Dual Head Single Link DVI, USB 2.0, KMAS, Multi-mode, SC VEL-W00M24-SCRX Velocity KVM Extender Transmitter, Dual Head Single Link DVI, USB 2.0, KMAS, Multi-mode, SC VEL-W00M24-SCTX...
  • Page 48 Thinklogical's Full Line of VelocityKVM and Video Single-Mode Fiber Extenders Description Part Number VelocityKVM-4 Single-Mode Fiber Extenders Velocity KVM Extender Rx, Single Head Single Link DVI, USB 2.0, KMAS, Single-mode, SC/APC VEL-W00S04-SCRX Velocity KVM Extender Tx, Single Head Single Link DVI, USB 2.0, KMAS, Single-mode, SC/APC VEL-W00S04-SCTX VelocityKVM-5 Single-Mode Fiber Extenders Velocity KVM Extender Rx, Single Head Dual Link DVI/RGB, USB 2.0, KMAS, Single-mode, SC/APC...

  • Page 49: Part Number Reference Guide

    V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 48...

  • Page 50: Appendix B: Quick Start Guides

    Appendix B- Quick Start Guides A.B.1 VelocityKVM-4 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 49...
  • Page 51 A.B.2 VelocityKVM-5 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 50...

  • Page 52: Velocitykvm-8

    A.B.3 VelocityKVM-8 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 51...

  • Page 53: Velocitykvm-24

    A.B.4 VelocityKVM-24 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 52...

  • Page 54: Velocitykvm-28

    A.B.5 VelocityKVM-28 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 53...

  • Page 55: Velocitykvm-34

    USB 2.0 USB HID (Kybd/Mouse) PS/2 Keyboard PS/2 Mouse Audio OUT ► ◄ Audio IN Stereo Emitter IN A.B.6 VelocityKVM-34 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 54...

  • Page 56: Velocitykvm-35

    A.B.7 VelocityKVM-35 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 55...

  • Page 57: Velocitykvm-38

    USB 2.0 USB HID (Kybd/Mouse) PS/2 Keyboard PS/2 Mouse Audio OUT ► ◄ Audio IN Stereo Emitter IN A.B.8 VelocityKVM-38 Quick Start Guide V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 56...

  • Page 58: Appendix C: Automatic Fail-Over Option

    Appendix C- Automatic Fail-Over Option For applications in need of an Auto Fail-Over system, Thinklogical offers a solution to meet this need in each of our VelocityKVM models. This option features two separate fiber paths for each signal and the ability to select which of the two paths is the viable path.
  • Page 59 Typical VelocityKVM-24WR and VX160 System with Automatic Fail-Over V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 58...

  • Page 60: Appendix D: Keyboard Mouse Audio Control Options

    Appendix D- Keyboard/Mouse/Audio Control Options Selectable KMASS/Separate KMASS Original: All KMASS data (keyboard, mouse, audio, serial. stereo 3D) sent from the TX unit is on fiber L1 along with the video data. User RX unit receives all KMASS data on fiber L1 along with video data. Standard (Selectable KMASS): The Tx unit is the same as above.

  • Page 61: Appendix E: Separate Data Path, Separate Audio Path And Multi-Path Video Options

    Appendix E- VelocityKVM Extender Series: Separate Data Paths, Separate Audio Paths and Multi-Path Video Options Thinklogical’s line of Separate Data Path, Separate Audio Path and Multi-Path Video ® Options are designed to accommodate systems that require data transmission security and for systems with a lower video transmission rate, or for systems not transmitting video through a Thinklogical KVM Matrix Switch.
  • Page 62 Separate Data Paths Option: VelocityKVM-24K Extender Transmitter (VEL-W0DM24-LCTX) & Receiver (VEL-W0DM24-LCRX): DVI 2 Display, USB HID, USB 2.0, RS-232 Serial, Stereo Emitter, Audio, Separate Data Paths (Allows KMASS data to be transmitted on one fiber and received on another fiber, separate from video data, which is transmitted on a separate, third fiber).
  • Page 63 Separate Audio Paths Option: VelocityKVM-24WA Extender Transmitter & Receiver (VEA-W00M24-LCTX) (VEA-W00M24-LCRX): DVI 2 Display, USB HID, USB 2.0, RS-232 Serial, Stereo Emitter, Audio, Separate Audio Paths (Allows audio data to be transmitted on one fiber and received on another fiber, separate from Video, USB, PS2, RS-232 and Stereo data, which are transmitted on two independent fibers).
  • Page 64 Multi-Path Video Option: VelocityKVM-4WX Extender Transmitter & Receiver (VEL-W00X04-LCTX) (VEL-W00X04-LCRX): DVI 1 Display, USB HID, USB 2.0, RS-232 Serial, Stereo Emitter, Audio, Multi-Path Video (Allows one 6.22 Gbps DVI signal to be transmitted across two fibers at a bandwidth of 3.11 Gbps per fiber). Thinklogical’s VX line of KVM Matrix Switch Routers, unlike other routers on the market, supports each 6.25 Gbps bandwidth video connection from our Velocity line of extender products.

  • Page 65: Appendix F: Edid Definitions And Ddc Modes

    Appendix F: EDID Definition and DDC Modes V e l o c i t y K V M E x t e n d e r P r o d u c t M a n u a l , R e v . F , O c t . 2 0 2 1 Page 64...

  • Page 66: Appendix G: Flex Keys

    Appendix G: Flex Keys Flex Keys is a Thinklogical Tool featuring a set of default hot keys that installs onto a Windows PC. Flex Keys also allows the administrator to create unique hot keys to enable actions that are not in Thinklogical’s default Hot Key Manager Legend. Create Unique Flex Key Actions 1.
  • Page 67 4. Left-click on the pull-down menus under Key1, Key2 and Key3 to select an action key. These are the hot keys that will be pressed on the keyboard. 5. Under LOSOUT1, select the code desired or create a unique code for a specific application. Selecting Double Tap (as in “Scroll lock/Scroll lock”) requires only one key.
  • Page 68 6. When the desired settings are selected, click on Send Keys to Host to apply the new settings. 7. To restore a Receiver to its default settings: a. Open Flex Keys without reading the device. (No USB cable to the PC as shown in Step 1.) b.
  • Page 69 Create Custom Actions By left-clicking on an “unused” Key1 drop-down menu, users can select from a list of key sequences. In this case, Left Ctrl is selected for Key 1. Left-click on the Key2 drop-down menu to select the Key 2 sequence. In this case, F1 is selected for Key 2.
  • Page 70 Left-click on the LOSOUT1 drop-down menu and select from a list of hex values, so that pressing L-Ctrl and F1 will execute the function associated with that value. Only choose 77 for No Router Mode. User’s Note: A non-hex value can be entered by scrolling to the bottom of the list and clicking on Spec1. By selecting Spec1, the LOSOUT2 value will automatically become Rd Kb (Read Keyboard), meaning it will “read”...
