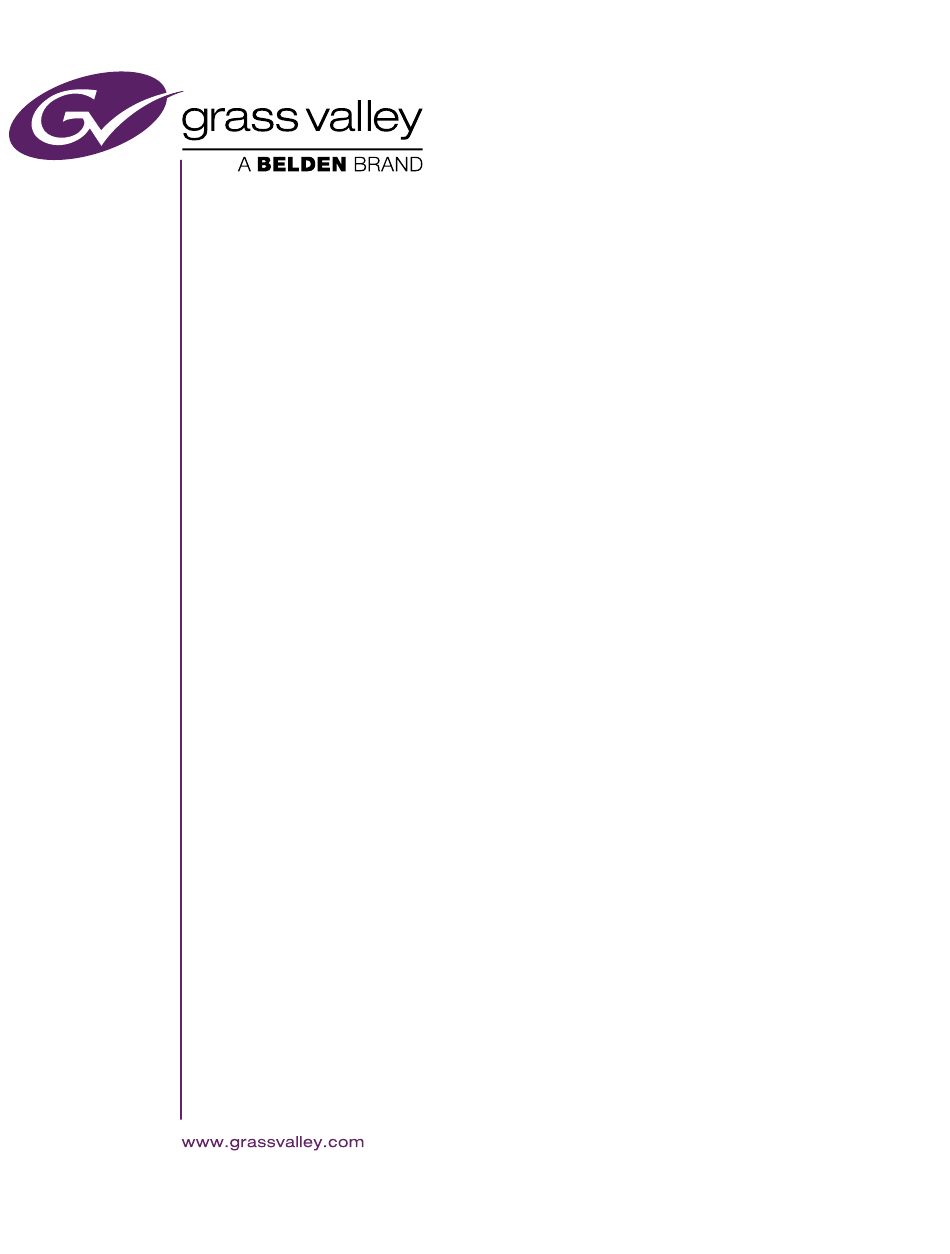

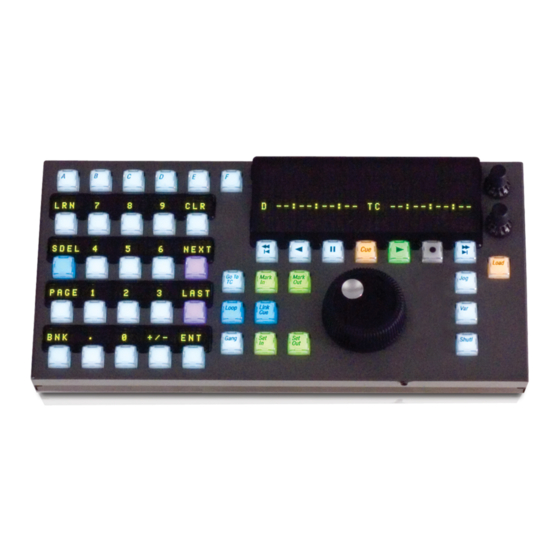

  • Page 1 KAYENNE/KARRERA VIDEO PRODUCTION CENTER Release Notes Software Version 8.0 071888306 NOVEMBER 2014...
  • Page 2 CERTIFICATE Certificate Number: 510040.001 The Quality System of: Grass Valley USA, LLC and its Grass Valley Affiliates Headquarters: 400 Providence Mine Road 15655 SW Greystone Ct. Nevada City, CA 95945 Beaverton, OR 97006 United States United States Kapittelweg 10 2300 So. Decker Lake Blvd. 4827 HG Breda Salt Lake City, UT 84119 The Nederlands...
  • Page 3 KAYENNE/KARRERA VIDEO PRODUCTION CENTER Release Notes Software Version 8.0 071888306 NOVEMBER 2014...

  • Page 4: Copyright

    Copyright © 2014 Grass Valley. All rights reserved. This product may be covered by one or more U.S. and foreign patents. Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated compa- nies in the United States and other jurisdictions.

  • Page 5: Table Of Contents

    Contents Copyright ............Recycling.
  • Page 6 Contents Deployment Archive Files..........Calibrate the Kayenne Lever Arm and Joystick.

  • Page 7: Kayenne And Karrera K-Frame Release Notes

    Version NOVEMBER 2014 KAYENNE and KARRERA K-Frame Release Notes Introduction This document describes installation and other information specific to Kayenne/Karrera K-Frame Video Production Center Release 8.0 software. page 25 for system update instructions. New in Release 8.0 • 2D-DPM Edge Pinning (see About 2D-DPM Edge Pinning on page •...

  • Page 8: About 2D-Dpm Edge Pinning

    Version 8.0 About 2D-DPM Edge Pinning Edge Pinning is the 2D version of Corner Pinning and is designed to work in conjunction with cropping. Each time Edge Pinning is turned on, the pinned edges will be adjusted to match the current 2D-DPM crop settings. After pinning the edges of an image you can crop it to select the exact portion of the source video to display or, conversely, you can crop the image and then pin the edges by stretching the image to the target location.

  • Page 9: Create An Edge Pinning Effect (Example)

    About 2D-DPM Edge Pinning Crop enables/disables and crop edge parameter changes are reflected across 2DPM menu tabs. For example, if crops are enabled in the Trans- form, Keyers 2DPM menu tab and the top crop edge parameter was changed, the effect would be mirrored in the Pinning, 2DPM menu tab and vice versa.

  • Page 10: Adjusting A 2D-Dpm Image With Edge Pinning Pan And Scan

    Version 8.0 11. Use the Pan and Scan features to reposition the shot clock if the camera is moved. Adjusting a 2D-DPM Image with Edge Pinning Pan and Scan To ‘Pan’ a cropped image means to move the crop sideways which simul- taneously trims the value of the Left Crop and Right Crop.
  • Page 11 About 2D-DPM Edge Pinning 3. On the MFM, press and the button just below 2DPM Crop Crop Figure 2. Multi-Function Module—2D-DPM Edge Pinning, Crop 4. Adjust the crop edges using the soft knobs to include the portion of the video you want in the box (key); the shot clock in this example. 5.

  • Page 12: Using Pan And Scan To Adjust A 2D-Dpm Image With The Kayenne Multi-Function Module

    Version 8.0 7. On the MFM, press and then the button directly below to turn EPin on Edge Pinning. Figure 3. Multi-Function Module—2D-DPM Edge Pinning, EPin 8. Press the , or button and use the soft knobs to pin Right Left Bottom the edges to the cropped box;...
  • Page 13 About 2D-DPM Edge Pinning Note Panning or scanning beyond (+ 16:9 for example) can have unexpected results, i.e. the picture may begin to stretch. Figure 4. Multi-Function Module—2D-DPM Edge Pinning, Pan/Scan KAYENNE/KARRERA — Release Notes...

  • Page 14: About The E-Mem Enables Tab

    Version 8.0 About the E-MEM Enables Tab The E-MEM & Timeline, Timeline Edit, E-MEM Enables menu tab allows the operator to review and edit each ME level in an E-MEM register, for all MEs at once. Additionally, the operator can view the states of all ME sub- levels for an effect from one location.

  • Page 15: Definable Sub-Levels

    About the E-MEM Enables Tab Figure 6. E-MEM Enables Menu—Assigned Sub-Levels Definable Sub-levels Definable sub-levels are not displayed in the E-MEM Enables tab. If there are defined sub-levels enabled, the > symbol will be displayed; white for primary and green for secondary, both to the lower right of the ME to which it is assigned.

  • Page 16: Enabling E-Mem Levels From The E-Mem Enables Tab

    Version 8.0 Enabling E-MEM Levels from the E-MEM Enables Tab ME levels for an E-MEM can be enabled/disabled from the E-MEM & Timeline, Timeline Edit, E-MEM Enables menu tab. Proxy eDPM control is also provided, however eDPM sub-levels are in the eDPM menus. Levels updated in either the Master E-MEM or E-MEM Enables tab are reflected in both.

  • Page 17: 4K Sample Show Files Available For Download

    4K Sample Show Files Available for Download 4K Sample Show Files Available for Download A sample of a 4K show with video is included with the 8.0 software on the GV Download site. By downloading, reading the included instructions, and running the sample show you can learn how to create your own 4K show.

  • Page 18: About Updating The Had Fpga

    Version 8.0 About Updating the HAD FPGA HAD (Host Address Decoder) FPGA (Field Programmable Gate Array) updates are to be performed by qualified personnel only, i.e. an EIC (Engi- neer In Charge). Each CPU or Image Store board installed in a Grass Valley K-Frame Video Processing Frame has a PCI Express endpoint for communication with the host processor.

  • Page 19: Update The Had Fpga

    About Updating the HAD FPGA Update the HAD FPGA The HAD FPGA update can be performed using either a serial console attached to the front edge of the Controller board using the DB9 connector or a Telnet session. CAUTION It is recommended that HAD (Host Address Decoder) FPGA (Field Program- mable Gate Array) updates are performed by qualified personnel only, i.e.
  • Page 20 Version 8.0 Figure 10. Debug Menu 6. Enter the number fifteen [15] for the Flash HADs menu, at the prompt: ->15 Result: Figure 11. Flash HADs Menu 7. Enter the letter m [M] for the Multi Boot Configuration menu, at the prompt: ->M Result: Figure 12.

  • Page 21: Update The Had Fpga Using A Telnet Session

    About Updating the HAD FPGA CAUTION Do not power down or reset the Frame during the update process, HAD pro- gramming takes several minutes to complete. 9. Once the programming is completely finished, power cycle the Frame to complete the HAD update process. 10.
  • Page 22 Version 8.0 Figure 16. Telnet Debug Menu 5. Enter the number fifteen [15] for the Flash HADs menu, at the prompt: ->15 Result: Figure 17. Telnet Flash HADs Menu 6. Enter the letter m [M] for the Multi Boot Configuration menu, at the prompt: ->M Result: Figure 18.
  • Page 23 About Updating the HAD FPGA Figure 19. Successfully Installed HAD Example CAUTION Do not power down or reset the Frame during the update process, HAD pro- gramming takes several minutes to complete. 10. Once the programming is completely finished, power cycle the Frame to complete the HAD update process.

  • Page 24: About The Kayenne/Karrera K-Frame Software Update

    Version 8.0 About the Kayenne/Karrera K-Frame Software Update Kayenne/Karrera K-Frame systems are shipped with the current software version installed. Updates to K-Frame system software are available for download from the Grass Valley website. Software installation tools are provided with each update package. The K-Frame Deployment Tool extracts and copies Grass Valley switcher system files to a Menu Panel or PC.

  • Page 25: Materials Required

    Update the Kayenne/Karrera K-Frame Software visit www.grassvalley.com. The installer places the K-Frame samples in the C:\K_Frame\user\Samples directory on the GV Switcher system. New K-Frame systems are shipped with the sample directory installed. Note For Compact S-series Frames, samples that are built using more than four keyers will need some customization before incorporating those elements into a production.

  • Page 26: Deploy Switcher Update Package Files And Installer

    Version 8.0 Deploy Switcher Update Package Files and Installer 1. Exit the Menu application and any other applications that may be running on the Menu Panel or PC. 2. Disable any virus protection, Windows firewall, and any other firewall protections that may have been installed on the Menu Panel or PC. Firewalls must be inactive to allow switcher system software installation over the network.

  • Page 27: K-Frame Installer Program Description

    Update the Kayenne/Karrera K-Frame Software 8. When the deployment completes the K-Frame Installer Program will launch automatically. After the switcher files have been deployed, the K-Frame Installer Program Figure 22. Installer Icon can be launched at any time by clicking on its desktop icon. K-Frame Installer Program Description The K-Frame Installer Program initial screen has buttons on the left used to select various installers.
  • Page 28 Version 8.0 Navigate to the Kayenne or Karrera device in the hierarchy to display infor- mation for that device or install software. The same methods of installation work for both products. Figure 24. K-Frame Installer Program Expanded Hierarchy Window is at the top of the hierarchy window. Clicking on that item System Devices displays the types of switchers ( and/or...

  • Page 29: Update The System

    Update the Kayenne/Karrera K-Frame Software - (System selected) Updates software to all devices for the selected Update All system, excluding Menus. - Allows the creation of a Control Panel Compact Flash Card onto Create CF another CF Card. CAUTION This formats the CF card. Update the System A system’s Video Processor Frame, Control Panels, and optional Image Stores can be updated with one operation.

  • Page 30: About Updating Spare Kayenne Control Panel Modules

    Version 8.0 3. Click . The following reboot message appears. Update All Figure 26. K-Frame Installer, Reboot Screen 4. If the box is checked, the Video Processor Frame, Reboot when complete optional Image Store, and all associated Control Panels will automatically reboot after the software update.
  • Page 31 Update the Kayenne/Karrera K-Frame Software CAUTION For Menu on PC, you must be logged on as administrator or the installation will fail. 1. Click on the K-Frame Switcher Installer desktop icon, if necessary, to Figure 27. Installer Icon launch the K-Frame Switcher Installer Program. Figure 28.
  • Page 32 Version 8.0 4. In either the Karrera or Kayenne Control Panel area, choose either Menu (the Touch Screen Menu Panel) or , and click Platform User PC Next Figure 30. K-Frame Menu Installer, Hardware Selection 5. Enter a name and organization in the User Information screen, leave the setting selected, and click Anyone who uses this computer Next...

  • Page 33: About Updating The Had Fpga

    Update the Kayenne/Karrera K-Frame Software 8. When done, the Menu Successfully Installed screen appears, Click Finish If you installed onto Menu hardware you will be prompted to reboot the computer. Figure 31. K-Frame Menu Installer Success 9. Click Exit and answer to the prompt to exit the K-Frame Installer.

  • Page 34: Install .Net For First Time Menu On Pc Installation

    Version 8.0 Note A new Menu Panel or PC that has not been used with the switcher system will need to be configured as a Control Surface Node before it can operate with a Karrera or Kayenne Installation and Service switcher system.

  • Page 35: Soft Panel Installation

    Update the Kayenne/Karrera K-Frame Software 3. When done, the message Download complete. You can now disconnect from the will be displayed. Exit the .NET installer application and Internet relaunch the K-Frame Installer Program. 4. You will now be able to install the Menu application onto the PC (see Update/Install the Menu Panel Application on page 30).

  • Page 36: Check Software Versions

    Version 8.0 Check Software Versions Launch the Menu application. The Status Menu will list the switcher system devices. Ensure all the components are running the same software version. Mismatched versions will be reported with red text. Figure 34. Mismatched Software Versions—K-Frame Confirm System Operation 1.

  • Page 37: Backup New Configuration And Effects Files

    K-Frame Software Removal With Windows OS Backup New Configuration and Effects Files 1. When you are satisfied with system operation, save the new configuration files and effects as a Show file to a folder you’ve created on that version’s K-Frame Software USB stick. 2.

  • Page 38: Deployment Archive Files

    Version 8.0 Deployment Archive Files When new software versions are installed with the K-Frame Deployment tool, older version deployment files are not automatically removed. Each K-Frame deployment creates its own software version folder. If the default installation location, or the same alternative destination, is always chosen, all the version folders will be listed together.

  • Page 39: Calibrate The Karrera Lever Arm And Joystick

    Calibrate the Karrera Lever Arm and Joystick Calibrate the Karrera Lever Arm and Joystick It is recommended that the Karrera Control Panel Lever Arm (for each Transition area) and Joystick be calibrated after a software update. 1. On any Karrera panel EMEM area, press Menu Page 2.

  • Page 40: Ip Addresses And Single Control Surface Systems

    Version 8.0 Note Customer orders with multiple Control Panels will be pre-configured to the listed IP addresses. However, if one of these additional Control Panels is reset to factory defaults, it will be given the standard 1A default 192.168.0.173 address. IP Addresses and Single Control Surface Systems A new Grass Valley system will operate on an isolated network with the default IP addresses configured at the factory (except for 32 Crosspoint...
