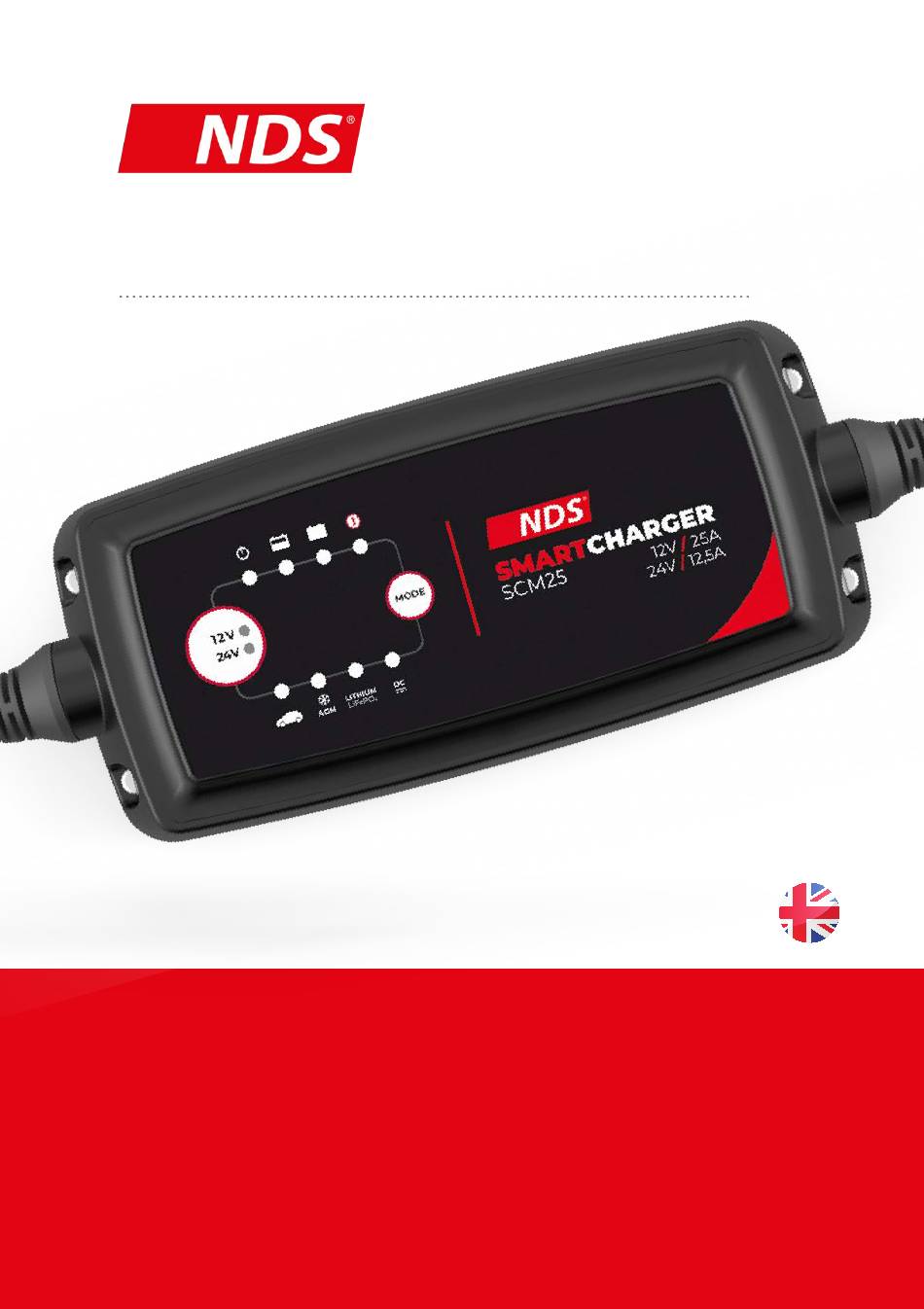

- Page 1 SMARTCHARGER User manual Valid for the following model SCM25...
- Page 2 instructions for the proper disposal This electronic device is subject to the European Directive 2012/19/EU. According to the local waste disposal rules, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.
-
Page 3: Table Of Contents
INDEX 1. Introduction 2. Contents of the pack 3. main features 4.Preliminary process 5. Installation 6. Start the charge 7. Charging curves 8. Technical features 9. warranty... -
Page 4: Introduction
1. Introduction Easy to use, Automatic, Professional battery charger with advanced microcontroller and the whole New OPTICHARGE firmware algorithm. SMARTCHARGER is perfect for daily battery charging and every technology, and maintenance in every application, including: Cars, Motorcycles, Nautical, Campers, Work vehicles, etc… SAFETY INSTRUCTIONS •... -
Page 5: Contents Of The Pack
• The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without obligation to apply these changes to the devices previously distributed. -
Page 6: Main Features
3. main features Plug and play. • OPTICHARGE the new firmware algorithm to check • the battery status and optimize the charge. Specific Charging curve Ideal for every battery • technology, lithium batteries included. Up to 9 charging steps. • IP20 protection. -
Page 7: Installation
5. Installation SMARTCHARGER MODE LITHIUM LiFePO 1. CONNECT THE DEVICE CLAMP CONNECTORS TERMINALS TO THE BATTERY The Red terminal to the positive battery pole and black terminal to the positive battery pole. Switching the connection polarity on the battery poles will stop the charge and SMARTCHARGER will... -
Page 8: Start The Charge
6. Start the charge SMARTCHARGER led menu let immediately understand the selected charging curve and the running charge step. 1 2 V SMARTCHARGER MODE SCM25 12,5A LITHIUM LiFePO SCM25 ICON STATE OF CHARGE MODE Selection Button - Curve selection and reset during charge Power status Led Error Led - short circuit, reverse polarity, bad battery Battery is Charging... - Page 9 See the charging curve full description (Page 9). Follow this steps to start the charge: 1. Connect the SMARTCHARGER to the battery (P.5), then plug the AC power socket. The power status led will turn on. NOTE If the AC power socket is connected before connecting the clamps to the battery, the error led will be turned on...
- Page 10 Charge will turn to “Normal charge” (step 6) when the battery is recovered. If battery can’t be recovered the error led will be light up. 6. If everything is ok the “Normal charge” will start and the charging led will light up. ...
-
Page 11: Charging Curves
With OPTICHARGE you will have the best charging experience ever created by NDS, the easiest way: just p l u g t h e d e v i c e i n t o t h e p o w e r s o c k e t , SMARTCHARGER will do the rest! ... - Page 12 SCM25 at 12V/25A - PHASES DISCUSSION Battery status Check. Charge will not start with voltage under 2.0V PRELIMINARY CHECK and more then 15,5V For deeply discharged battery: current will be 500-800mA at 16V for 5 seconds until RESCUE voltage reduces to 14V (2 hours max timeout) If battery voltage is between 2.0V–6.0V a 5A current is delivered to re-activate the battery SOFT START...
- Page 13 SCM25 at 24V/12,5A - PHASES DISCUSSION Battery status Check. Charge will not start with voltage under 2.0V PRELIMINARY CHECK and < 31V For deeply discharged battery: current will be 500-800mA at 16V for 5 seconds until RESCUE voltage reduces to 28V (2 hours max timeout) If battery voltage is between 2.0V–12.0V a 2.5A current is delivered to re-activate the...
- Page 14 SCM25 LITHIUM (12V only) - PHASES DISCUSSION Battery status Check. Charge will not start with voltage under 2.0V PRELIMINARY CHECK and < 14V For deeply discharged battery: current will be 500-800mA at 13,8V until voltage will be RESCUE >11,5V (2 hours max timeout) If battery voltage＞10.8V, Smartcharger CHECK moves to next step...
-
Page 15: Technical Features
9. Technical features SMARTCHARGER SCM25 Output rated voltage Output charging current 12,5A Input rated voltage 220-240V 220-240V Input rated current 2,4A 2,4A 14,4V / 25A 28,8V / 12,5A 14,7V / 25A 29,4V / 12,5A 14,4V / 8A Not supported LITHIUM... -
Page 17: Warranty
10. warranty ... - Page 20 ALL THE ENERGY YOU NEED TUTTA L’ENERGIA CHE TI SERVE 0053_MANU_SmartCh_GB01 NDS ENERGY s.r.l. Via Pascoli, 169 65010 Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 Fax: +39 085 9112263 Web: www.ndsenergy.it Email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
