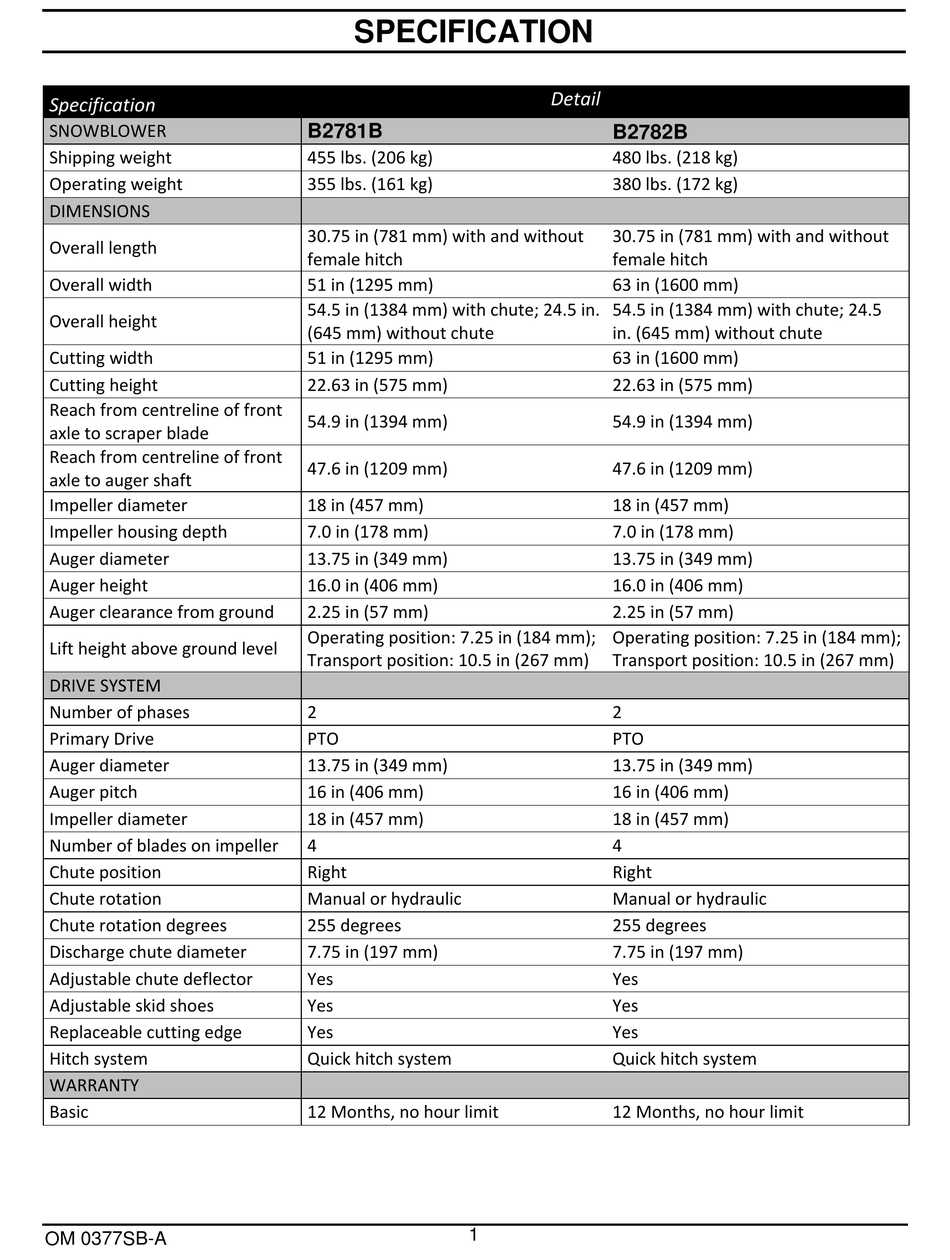

Specification - Kubota B2781B Operator And Parts Manual

Specification
SNOWBLOWER
Shipping weight
Operating weight
DIMENSIONS
Overall length
Overall width
Overall height
Cutting width
Cutting height
Reach from centreline of front
axle to scraper blade
Reach from centreline of front
axle to auger shaft
Impeller diameter
Impeller housing depth
Auger diameter
Auger height
Auger clearance from ground
Lift height above ground level
DRIVE SYSTEM
Number of phases
Primary Drive
Auger diameter
Auger pitch
Impeller diameter
Number of blades on impeller
Chute position
Chute rotation
Chute rotation degrees
Discharge chute diameter
Adjustable chute deflector
Adjustable skid shoes
Replaceable cutting edge
Hitch system
WARRANTY
Basic
OM 0377SB-A

SPECIFICATION

B2781B
455 lbs. (206 kg)
355 lbs. (161 kg)
30.75 in (781 mm) with and without
female hitch
51 in (1295 mm)
54.5 in (1384 mm) with chute; 24.5 in.
(645 mm) without chute
51 in (1295 mm)
22.63 in (575 mm)
54.9 in (1394 mm)
47.6 in (1209 mm)
18 in (457 mm)
7.0 in (178 mm)
13.75 in (349 mm)
16.0 in (406 mm)
2.25 in (57 mm)
Operating position: 7.25 in (184 mm);
Transport position: 10.5 in (267 mm)
2
PTO
13.75 in (349 mm)
16 in (406 mm)
18 in (457 mm)
4
Right
Manual or hydraulic
255 degrees
7.75 in (197 mm)
Yes
Yes
Yes
Quick hitch system
12 Months, no hour limit
1
Detail
B2782B
480 lbs. (218 kg)
380 lbs. (172 kg)
30.75 in (781 mm) with and without
female hitch
63 in (1600 mm)
54.5 in (1384 mm) with chute; 24.5
in. (645 mm) without chute
63 in (1600 mm)
22.63 in (575 mm)
54.9 in (1394 mm)
47.6 in (1209 mm)
18 in (457 mm)
7.0 in (178 mm)
13.75 in (349 mm)
16.0 in (406 mm)
2.25 in (57 mm)
Operating position: 7.25 in (184 mm);
Transport position: 10.5 in (267 mm)
2
PTO
13.75 in (349 mm)
16 in (406 mm)
18 in (457 mm)
4
Right
Manual or hydraulic
255 degrees
7.75 in (197 mm)
Yes
Yes
Yes
Quick hitch system
12 Months, no hour limit
