Manual Rotation Installation

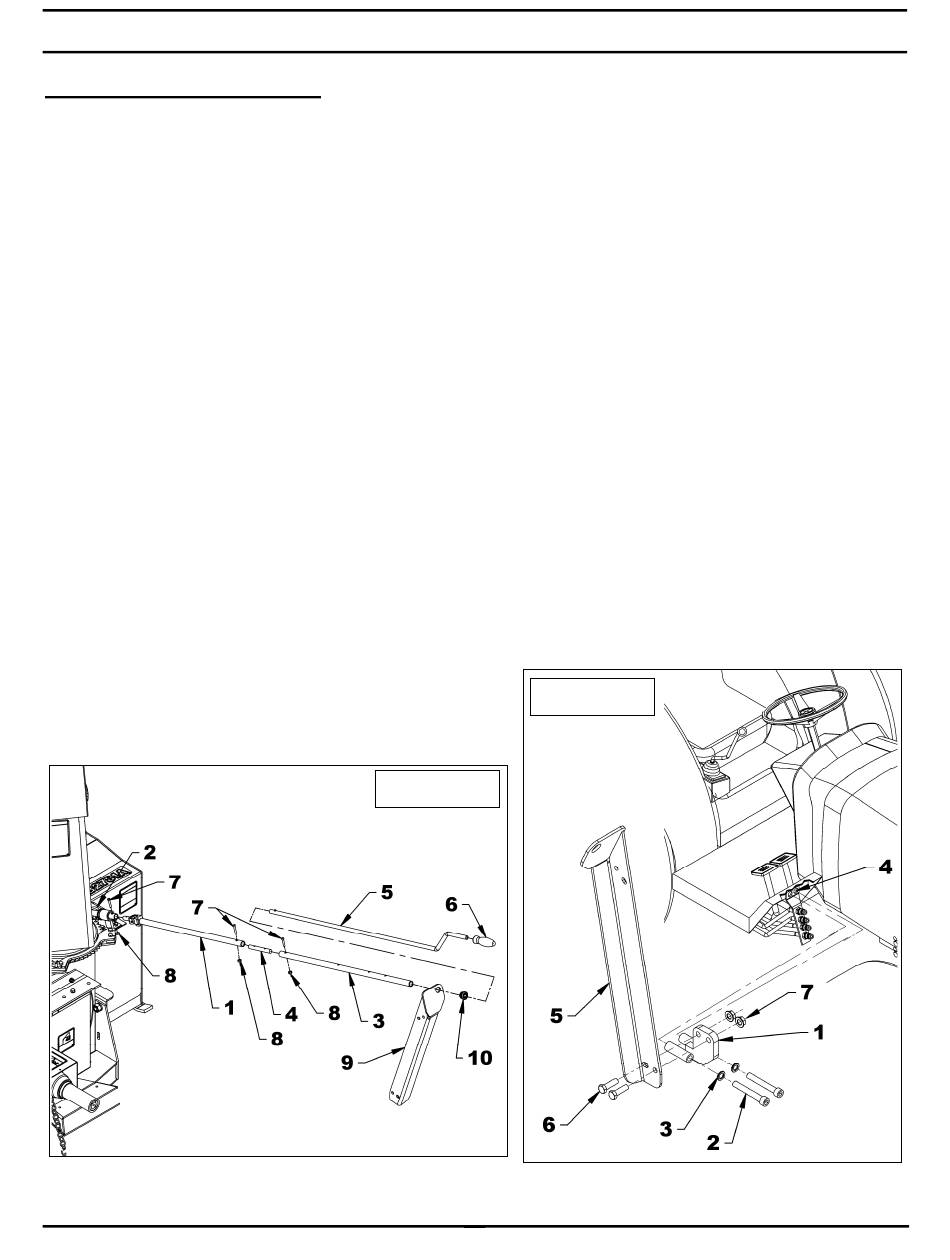

(Figure 3a-3b)
(For tractor models B2320, B2620, B2920, B2301 & B2601 only)
1. Figure 3a: Insert the plastic grommet
(item 10) in the upper hole of the handle
support (item 9).
2. Figure 3b: Remove the two existing bolts
from the hydraulic pipe support (item 4).
3. Figure 3b: Install the support bracket with
two 10 mm x 1.25 x 80 mm allen socket
head cap screw (item 2) and two 10 mm
lockwashers (item 3).
immediately.
4. Figure 3b: Attach the handle support
(item 5) with two 3/8" NC x 1 1/4" hex. bolts
(item 6) and two 3/8" serrated flange nuts
(item 7). Tighten these two bolts according
to the "Torque Specification Table" at the
end of the
5. Figure 3b: Tighten the two 10 mm bolts
(item 2) while pulling slightly on the support
(item 5) to keep it well distanced from the
hood.
OM 0377SB-A
ASSEMBLY
Do not tighten
Figure 3a
13
6. Figure 3b: Insert the universal joint end of
the rotation rod (item 1) in the rotation worm
(item 2), and secure with a 10-24 x 1" allen
setscrew and 10-24 nylon insert locknut
(items 7-8). Attach the rotation tube (item 3)
to the coupling rod (item 4) then to the
rotation rod (item 1) using two 10-24 x 1"
allen setscrews and 10-24 nylon insert
locknuts (items 7-8).
7. Figure 3b: Install the plastic handle (item 6)
on the rotation handle (item 5) and insert
handle in the handle support (fig. 2a,
item 2), and then in the rotation tube
(item 3) and secure in one of the holes with
the snap button.
Figure 3b
