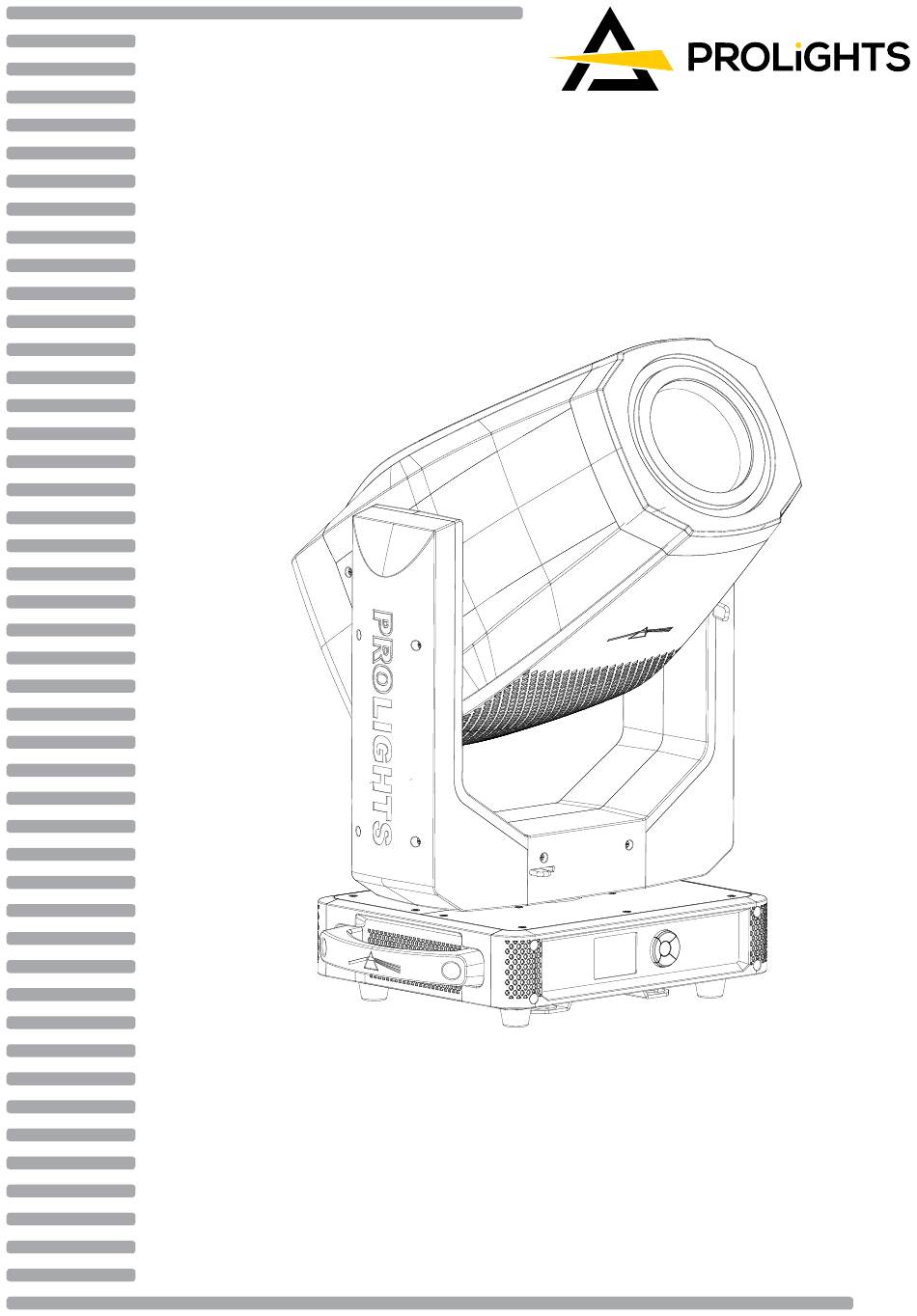

RA2000PROFILEHB
LED MOVING PROFILE
USER MANUAL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA2000PROFILEHB and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights RA2000PROFILEHB

Summary of Contents for ProLights RA2000PROFILEHB

  • Page 1 RA2000PROFILEHB LED MOVING PROFILE USER MANUAL...
  • Page 2 All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be reproduced in any form or by any means for any commercial use. In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.

  • Page 3: Table Of Contents

    3. 20 Color - Gobos wheel 4 Maintenance 4. 1 Maintenance and cleaning the unit 4. 2 Fuse replacement 4. 3 Trouble shooting Packing content • RA2000PROFILEHB • Power cable • OS25 (2 pcs) • Safety cable • User manual...

  • Page 4: General Instructions

    RA2000PROFILEHB WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with and approved for the North American Market.

  • Page 5: Introduction

    RA2000PROFILEHB - 1 - INTRODUCTION 1.1 TECHNICAL DRAWING Technical drawing Fig.1...

  • Page 6: Operating Elements And Connections

    RA2000PROFILEHB 1.3 OPERATING ELEMENTS AND CONNECTIONS 1. MOVING HEAD 2. TILT Mechanism Lock and Release 3. ROTARY ARM 4. PAN Mechanism Lock and Release 5. BASE 6. HANDLE 7. CONTROL PANEL with TFT display and 5 button used to access the control panel functions and manage them.

  • Page 7: Installation

    2.1 MOUNTING The RA2000PROFILEHB may be set up on a solid and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a cross arm. The base plate is shown in fig.3. For fixing, stable mounting clips are required.

  • Page 8: Functions And Settings

    Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to reset all motors to their home position. Shortly after that the RA2000PROFILEHB is ready for operation. To switch off, disconnect the mains plug from the socket. For a more convenient operation it is recom- mended to connect the unit to a socket which can be switched on and off via light switch.

  • Page 9: Menu Structure

    RA2000PROFILEHB 3.3 MENU STRUCTURE MENU CONNECT ð ð Address Value (1-512) ð DMX Mode Standard 38Ch Standard 38Ch Standard 40Ch Extended 39Ch Extended 41Ch Extended 42Ch SET UP ð Movement ð ð Pan Reverse NO/YES Default: No ð Tilt Reverse...
  • Page 10 RA2000PROFILEHB Fr.shutters Rot. ð Value (000-255) for each function Fr.shutter 1 Move. Fr.shutter 1 Swiv. Fr.shutter 2 Move. Fr.shutter 2 Swiv. Fr.shutter 3 Move. Fr.shutter 3 Swiv. Fr.shutter 4 Move. Fr.shutter 4 Swiv. ADVANCED ð Reset ð ð Value (000-255) for each function...
  • Page 11 RA2000PROFILEHB ð ð Adjust Value (000-255) for each function Tilt Cyan Magenta Yellow Color Gobo RGobo Prism Rot Prism Effect Focus Zoom Frost 1 Frost 2 Iris Fr.shutters Rot. Fr.shutter 1 M1 Fr.shutter 1 M2 Fr.shutter 2 M1 Fr.shutter 2 M2 Fr.shutter 3 M1...

  • Page 12: Linking

    For operation via a light control unit with DMX512 protocol, simply connect RA2000PROFILEHB to the controller. The projector has a DMX channel configuration that can be accessed from the control panel. In order to control RA2000PROFILEHB with a light control unit, the DMX start address must be set for the first DMX channel.

  • Page 13: Movement

    RA2000PROFILEHB Number of Start address DMX Address Next possible start Next possible start Next possible start DMX channels (example) occupied address for unit No. 1 address for unit No. 2 address for unit No. 3 33-70 33-71 33-72 33-73 33-74...

  • Page 14: Screen

    RA2000PROFILEHB 3.9 SCREEN • It is possible to modify the following parameters, related to the display, following the same procedure: • Press the ENTER button to access the main menu. • Press the UP/DOWN button to scroll through the menu, select Set Up, then press the ENTER button ac- cess the next menu.

  • Page 15: Fans Mode

    RA2000PROFILEHB 3. 11 FANS MODE • Select this function to set the fan operating mode: • Press the ENTER button to access the main menu. • Press the UP/DOWN button to scroll through the menu, select Set Up, then press the ENTER button ac- cess the next menu.

  • Page 16: Dmx View

    NOTE: if the Motor fast mode is active, the speeds of all the engines increase to the maximum possible. The RA2000PROFILEHB manages all the motors in a “smooth” mode by default, when the Motor fast mode is activated the speeds increase to max and the smooth is lost.

  • Page 17: Connection Of The Dmx Line

    RA2000PROFILEHB 3.17 CONNECTION OF THE DMX LINE DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped- ance and low capacity. The following diagram shows the connection mode: DMX - INPUT DMX - OUTPUT XLR plug XLR socket...

  • Page 18: Dmx Control

    RA2000PROFILEHB 3.19 DMX CONTROL 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value PAN 8bit 0~100% 000 - 255 PAN 16bit 0~100% 000 - 255 TILT 8bit 0~100% 000 - 255 TILT 16bit 0~100% 000 - 255...
  • Page 19 RA2000PROFILEHB 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value COLOR Open 000-004 Open+Color1 005-009 Color1 010-013 Color1+Color2 014-018 Color2 019-022 Color2+ Color3 023-027 Color3 028-031 Color3+ Color4 032-036 Color4 037-040 Color4+Color5 041-045 Color5 046-049 Color5+ Color6...
  • Page 20 RA2000PROFILEHB 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value RGOBO FINE 000 - 255 PRISM ROT Open 000 - 005 Insertion and Positioning from 0-360(Index) 006 - 191 Slowest to fastest (Forward Spin) 192 - 223...
  • Page 21 RA2000PROFILEHB 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value EFFECT WHEEL 0~100% 000 - 255 ROT EFFECT Open/No Function 000 - 003 Forward stop to fastest 004 - 127 Stop 128 - 131 Reverse stop to fastest...
  • Page 22 RA2000PROFILEHB 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value SHUTTERS MACROS No Function 000 - 003 Macro 1 004 - 011 Macro 2 012 - 018 Macro 3 019 - 025 Macro 4 026 - 032...
  • Page 23 RA2000PROFILEHB 38 Ch 39 Ch 40 Ch 41 Ch 42 Ch FUNCTION Value FAN CONTROL No Function 000-001 Linear fan speed 100 to 0% 002-201 Auto Mode 202-207 Silent Mode 208-213 Studio Mode 214-219 Performance Mode 220-225 Follow output/A Kind of auto mode...

  • Page 24: Color - Gobos Wheel

    RA2000PROFILEHB 3.20 COLOR - GOBOS WHEEL OPEN CRI 85 CONGO BLUE DARK RED ORANGE DEEP GREEN BLUE BRILLANTE 2.80 mm...

  • Page 25: Maintenance

    RA2000PROFILEHB - 4 - MAINTENANCE 4.1 MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • Switch off the unit, unplug the main cable and wait until the unit has cooled down.

  • Page 26: Troubleshooting

    RA2000PROFILEHB 4.3 TROUBLESHOOTING Problems Possible causes Checks and remedies No mains supply Check the power supply voltage • • Dimmer fader set to 0 Increase the value of the dimmer channels • • All color faders set to 0 Increase the value of the color channels •...
