ProLights Astra Hybrid420IP User Manual

ProLights Astra Hybrid420IP User Manual

Ip65 hybrid moving beam-spot, with a 420w ushio nsl421 lamp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

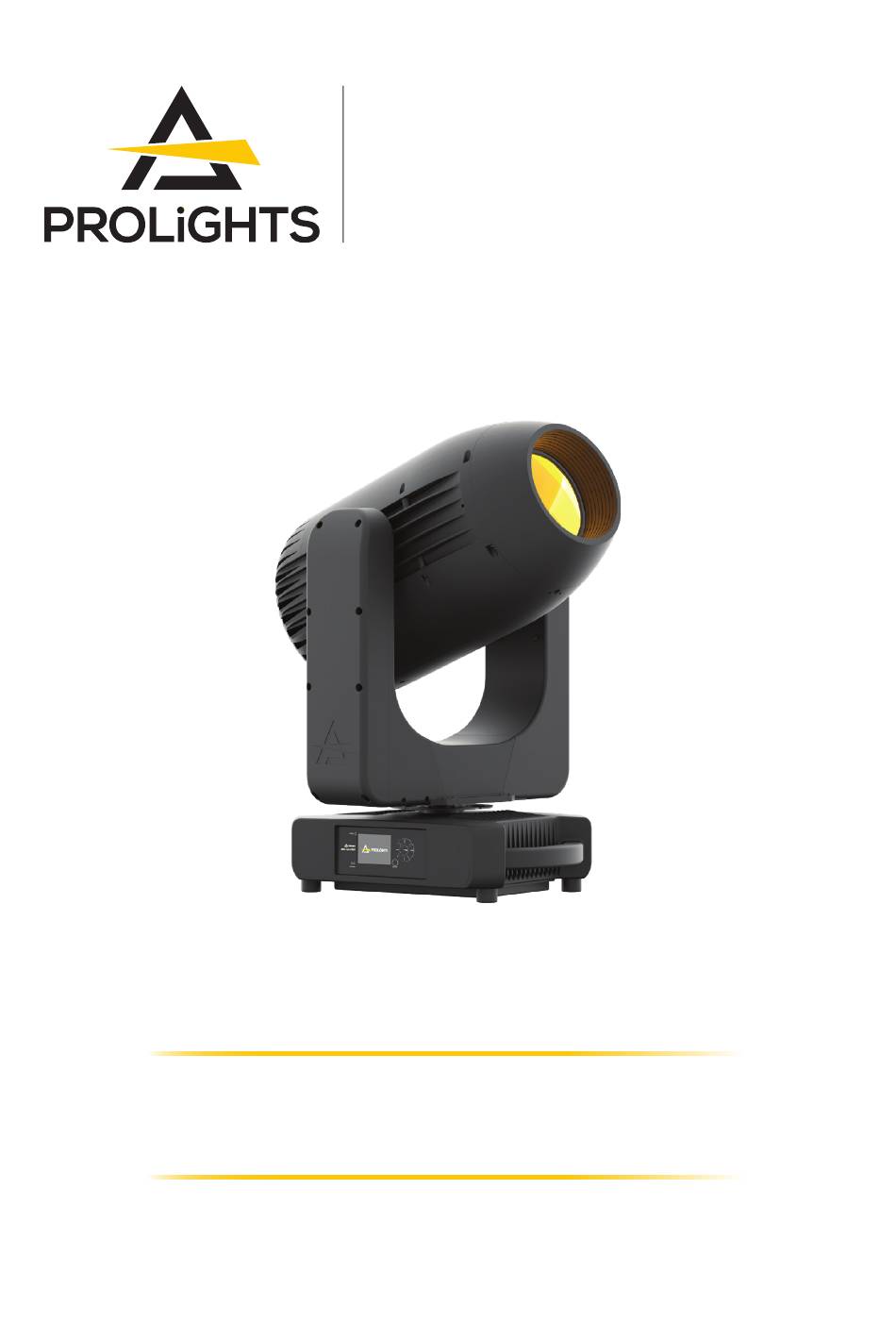

Astra Hybrid420IP
IP65 Hybrid moving beam-spot, with a 420W
USHIO NSL421 lamp
USER MANUAL
English version
REV.01-09/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Hybrid420IP and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Astra Hybrid420IP

Summary of Contents for ProLights Astra Hybrid420IP

  • Page 1 Astra Hybrid420IP IP65 Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp USER MANUAL English version REV.01-09/22...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
  • Page 3 19 - PERIODICAL CLEANING 20 - GOBOS REPLACEMENT 21 - TEST OF IP65 RATING 22 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............40 REPLACING THE FUSE ....................40 VISUAL CHECK OF PRODUCT HOUSING ..............40 TROUBLESHOOTING ..................... 41 PROLIGHTS - Astra Hybrid420IP...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 4. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Astra Hybrid420IP...

  • Page 7: Package Content

    • FCLASTRAH420IP: flight case for 2 pcs of ASTRAHYB420IP. • OSIP: IP65 quick-lock omega bracket compatible with IP65 moving heads. • IPTESTBOX: portable vacuum and pressure tester for ProLights IP fixtures. • UPBOX2P5: firmware uploader kit, USB IN, 5-pin XLR DMX OUT...
  • Page 8 3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Astra Hybrid420IP...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0670A/B C6002 Steel security cable clamp OSIP 108 mm 4.2 in Fig. 03 PROLIGHTS - Astra Hybrid420IP...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Hybrid420IP...

  • Page 11: Product Overview

    7. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 8. ANTENNA of Wireless DMX Receiver internal module. 9. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 10. PAN Mechanism lock and release. 11. TILT Mechanism lock and release. Fig. 04 PROLIGHTS - Astra Hybrid420IP...

  • Page 12: Connection Of The Dmx Line

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 25 DMX channels configuration PROLIGHTS - Astra Hybrid420IP...
  • Page 13 (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Hybrid420IP...
  • Page 14 If the ASTRAHYB420IP protocol selected is ArtNet / sACN, the WDMX module will retransmit the DMX values contained in the ArtNet / sACN signal received from the ASTRAHYB420IP. NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. PROLIGHTS - Astra Hybrid420IP...
  • Page 15 • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Hybrid420IP...

  • Page 16: Control Panel

    • Used to access the menu tree or to return a previous menu window. • To switch on the display throught the battery. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Hybrid420IP...

  • Page 17: Menu Structure

    Set IP address of the fi xture. UNIVERSE Set Universe for sACN protocol. OFF/HTP/ MERGE MODE Merge Mode sACN protocol. ETHERNET TO Enable Disable retrasmission from sACN/ArtNet signal to DMX out port. PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 18 Invert zoom values. TRANSFER WITHOUT DMX To transfer the same menu CONFIGURATION ADDRESS settings of one fixtures to all the other in the daisy chain, WITH DMX including or not the dmx ADDRESS address. PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 19 To see any error messages. MESSAGE FIXTURE XXXXXXXXXX View informations about fi xture MODEL model. RDM UID (READ ONLY) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about soft- VERSION ware version. PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 20 DOWN Reset without Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. ENTER + UP Bootloader Force fi rmware upgrade. then power on PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...

  • Page 21: Rdm Functions

    0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 22 0x1000 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 IP & DNS IPV4_CURRENT_ADDRESS 0x0705 Confi guration IPV4_STATIC_ADDRESS 0x0706 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...

  • Page 23: Dmx Charts

    4f Circular Prism 4f Circular Prism Insertion 8f Circular Prism 8f Circular Prism Insertion Frost Display Display Display Zoom Zoom Fine Focus Focus Fine Animation Insertion Animation Rotation Beam / Spot Filter Control PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 24 140 ÷ 153 Dark Red + Open 154 ÷ 167 Forward Spin From fast to slow 168 ÷ 210 Stop Stop 211 ÷ 212 Reverse Spin From slow to fast 213 ÷ 255 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 25 000 ÷ 127 Forward Spin From fast to slow 128 ÷ 190 Stop Stop 191 ÷ 192 Reverse Spin From slow to fast 193 ÷ 255 R. GOBO ROTATION FINE 000 ÷ 255 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 26 Indexed Lineary from 0° to 360° 000 ÷ 127 Forward Spin From fast to slow 128 ÷ 190 Stop Stop 191 ÷ 192 Reverse Spin From slow to fast 193 ÷ 255 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 27 RESET SHUTTER 128 ÷ 129 RESET OTHER 130 ÷ 131 LAMP OFF 132 ÷ 133 LAMP ON 134 ÷ 135 Reserved 136 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 28 RESET SHUTTER 128 ÷ 129 RESET OTHER 130 ÷ 131 LAMP OFF 132 ÷ 133 LAMP ON 134 ÷ 135 Reserved 136 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Astra Hybrid420IP PROLIGHTS - Astra Hybrid420...
  • Page 29 14 - FIXED GOBOS WHEEL Open Fig. 09 PROLIGHTS - Astra Hybrid420IP...
  • Page 30 • Ø of image (ID)= 12 mm • Thinckness= 1.1 mm Slot 02 Slot 03 Slot 01 Slot 04 Open Slot 05 Slot 09 Slot 06 Slot 08 Slot 07 ATTENTION! Load with mirror surface toward the light source. Fig. 10 PROLIGHTS - Astra Hybrid420IP...

  • Page 31: Color Wheel

    CYAN - COLOR WHEEL 1 MAGENTA - COLOR WHEEL 2 DARK GREEN LAVANDER 3200K DARK BLUE 2500K H.M.GREEN BLUE DARK WOOD YELLOW - COLOR WHEEL 3 LIGHT GREEN PINK AQUAMARINE DARK ORANGE LIGHT ORANGE Fig. 11 PROLIGHTS - Astra Hybrid420IP...

  • Page 32: Lamp Replacement

    PAN and TILT locks for added stability while replacing the lamp (1). See the "PAN AND TILT LOCK" paragrap. Then remove the six market screws to remove rear cover (2). Unclip the rear cover safety cable. PROLIGHTS - Astra Hybrid420IP...
  • Page 33 Loosen the two marked screws (5) and open the module with the two fan. (6) PROLIGHTS - Astra Hybrid420IP...
  • Page 34 Carefully remove any debris found on gasket and screw holes of the heatsink module using a nonabra- sive brush before installing! Carefully inspect gaskets for signs of wear such as cracking or hardening, deformities, or alignment issues before replacing the lamp. Then insert the new lamp using the reverse procedure. Fig. 12 PROLIGHTS - Astra Hybrid420IP...
  • Page 35 WARNING! Never touch the lens and use the goggles. Move the screwdriver upwards, downwards, right or left into a marked slot (1) to center the hotspot of the lamp on the center of the projection (2). Fig. 13 PROLIGHTS - Astra Hybrid420IP...

  • Page 36: Error Messages

    [LED DRIVER overheating in the head has occurred and the Yellow TEMPERATURE ERROR] lamp has been switched OFF by the product protection system. [LED PCB ERROR] LED PCB 1 not detected during reset Yellow PROLIGHTS - Astra Hybrid420IP...
  • Page 37 IDENTIFICATION OF ELECTRONIC BOARDS 3U PCB 2U PCB 1U PCB 5U PCB 4U PCB Fig. 14 PROLIGHTS - Astra Hybrid420IP...

  • Page 38: Periodical Cleaning

    Loosen the marked screws and opening the head covers (2) from both sides. Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, the lenses and filters. Fig. 15 PROLIGHTS - Astra Hybrid420IP...

  • Page 39: Gobos Replacement

    Loosen the marked screws and opening the head cover (see the "PERIODICAL CLEANING" paragraph, point 2). Detach the gobo holder flap from the gobo wheel (2). Then remove the gobo holder (3). Remove the spring (4) and the gobo (5). Fig. 16 PROLIGHTS - Astra Hybrid420IP...
  • Page 40 21 - TEST OF IP65 RATING To check sealing after servicing use the IPTESTBOX. Remove the gore valve from the connections panel. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. PROLIGHTS - Astra Hybrid420IP...
  • Page 41 Remove the gore valve on the rear connection heatsilk module (4) and insert the hex socket cap head included in the IPTESTBOX box (5). For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 15 PROLIGHTS - Astra Hybrid420IP...

  • Page 42: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 43: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 44 Note...
  • Page 45 Note...
  • Page 46 Note...
  • Page 48 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
