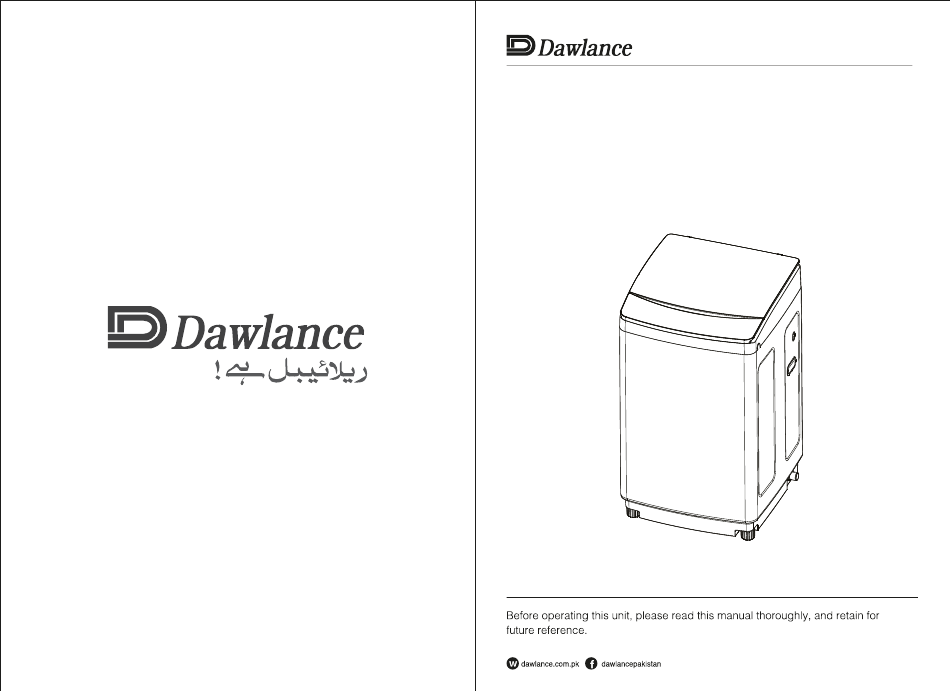

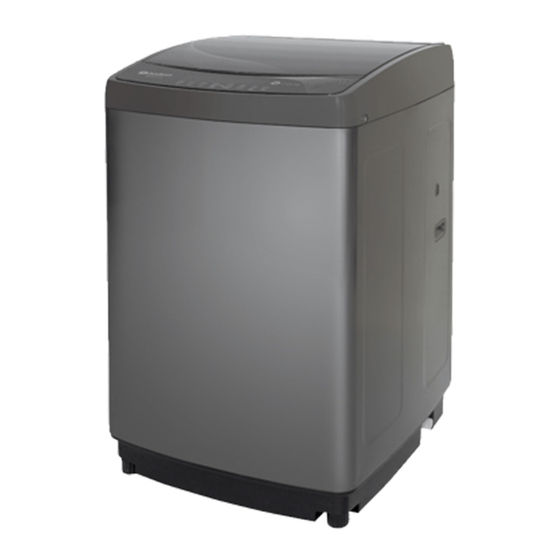

- Page 1 Fully Automatic Washing Machine User Manual MODEL: DWT 1775 PL...
-
Page 2: Table Of Contents
Contents Before using Parts name....................1 Cautions..................... 2 Installation and adjustment................ 4 How to use drainpipe................. 5 Water inlet installation................6 Operation Preparation before operation..............8 Load laundry..................Use of detergent..................9 Control panel instructions................. 10 Operation steps..................12 Maintenance.................... 13 Troubleshooting.................. -
Page 3: Before Using
Before using Parts name Cautions Before using Before using Top lid Please insert the plug into the power socket with rated voltage Always unplug the appliance and turn off the water when Feed valve Top frame 220V A/C. the power is cut, moving or cleaning the washing machine, or it is not in use. -
Page 4: Installation And Adjustment
Installation and adjustment Cautions Before using Before using Please install and adjust the machine according to the requirements of the manual. It is very important to your safety and correct operation. Unpacking Do not put hands into the working machine. It is dangerous to alter the speci cations or It is dangerous even if the speed is very slow. -
Page 5: How To Use Drainpipe
How to use drainpipe Water inlet installation Before using Before using Cautions: W hen install the washing machine, please use the new hose assy along with the washing machine, old hose assy can not reuse. Tap selection Suitable tap Not suitable tap Elbow Less than 1.2m The front end should be longer than 10mm. -
Page 6: Operation
Preparation before operation Load laundries Operation Operation Preparation before washing The capacity of washing and spinning of the machine refer 1. Connect the inlet hose and open the tap. to the largest weight of the standard laundries under dry condition .Washing quantity shall be lower than the rated 2. -
Page 7: Use Of Detergent
Control panel instruction Use of detergent Operation Mode and meaning of the indicator light on: indicate the selected mode Use of detergent ashing: indicate the program is running Withdraw the dispenser box before adding detergent Additional functions Pour concentrated synthetic washing powder into At the beginning of start, pressing WATER LE VEL , at the same time press PRES ET, Detergent box the box directly as shown in the left illustration. -
Page 8: Operation Steps
Operation steps Operation Operation Operation steps 1. Press power switch, put through power, the machine is in state of beginning: Before washing, the digital timer After select program, process and water level, press 1). if there is no water in inner tub,washing machine is in state of "FUZZY",the state details shows prest time, unit is HOUR. -
Page 9: Maintenance
Troubleshooting Operation Maintenance Maint ena nce me tho ds Before contacting the technicians, please make the following checks: After the end of the programme External cleaning Clean the exterior cabinet of the appliance with The machine stops automatically ,and music soft cloth. -
Page 10: Other Functions
Other functions Settlement 1. Give an alarm Display Explanation Settlement The top lid is opened Close the top lid and clear up the alarm when preset is started Settlement Open top lid, according to before After draining 7 minutes, troubleshooting and settlement to it still does not reach to settle it ,then close the top lid and water level... -
Page 11: Speci Cations
Speci cations Model DWT 1775 PL 220V~50Hz Rated voltage and frequency 10/112L 9/104L 8/96L 7/90L Water level/water volume (about) 6/82L 5/74L 4/68L 3/60L 2/54L 1/48L Inlet pressure 0.03 MPa - 0.3 MPa Rated input power Wash:460 Spin:370 About 53kg Weight...
