Concealed quick response sprinkler

Advertisement

Quick Links

Features:
1.
Quick response performance.
2.
Push on, thread off, sturdy convenient
cover plate.
3.
Factory assembled sprinkler and cup,
shipped complete with protective cap.
4.
Sprinkler assembly and cover plate
separately packaged.
5.
Two versions:
½² (13mm) Adjustment.
"
5
(8mm) Adjustment.
16
6.
Rugged damage resistant assembly.
No exposed thermal element.
7.
Utilizes Model F1FR Pendent
Sprinkler.
8.
Aesthetic ceiling profile.
9.
Available in white or other color
painted or brass, chrome or black
plated finishes.
Product Description
The Reliable Model F1FR/CCP Quick Response
Concealed Sprinkler is an attractive, low profile
concealed sprinkler assembly.
assembly utilizes a Model F1FR pendent sprinkler in
a Model CCP cup and cover plate assembly. The cup
is securely factory threaded on the sprinkler inlet
end. The assembly is shipped with a protective cap.
The sprinkler and cup are easily installed into the
drop nipple using the Model RC1 Sprinkler Wrench.
The cover plate assembly is attached to the sprinkler
cup using a cover plate assembly with flexible tabs
for threaded engagement. Simply push on the cover
plate, then turn to adjust or remove the cover plate
assembly.
The cover plate is attached to the skirt using 135°F
(57°C) or 165°F (74°C) ordinary temperature classification
solder. When the ceiling temperature rises, the solder
holding the cover plate melts, allowing the release of this
part and thus exposing the Model F1FR sprinkler inside to
the rising ambient temperature.
The Reliable Automatic Sprinkler Co., Inc.,103 Fairview Park Drive, Elmsford, New York 10523
frangible glass bulb. This sprinkler has demonstrated
response times in laboratory tests which are five to ten
times faster than standard response sprinklers. This
quick response enables the Model F1FR sprinkler to
apply water to a fire much faster than standard sprinklers
This sprinkler
of the same temperature rating.
amount of special fluid hermetically sealed inside a
precisely manufactured glass capsule. This glass bulb is
specially constructed to provide fast thermal response.
The other sprinkler parts are made of brass, copper and
beryllium nickel.
fluid in both the liquid phase and vapor phase. The vapor
phase can be seen as a small bubble. As heat is applied
the liquid expands, forcing the bubble smaller and
smaller as the liquid pressure increases.
heating forces the liquid to push out against the bulb,
causing the glass to shatter, opening the waterway and
allowing the deflector to distribute water.
the color of the glass bulb.
Model F1FR/CCP
Concealed
Quick Response
Sprinkler

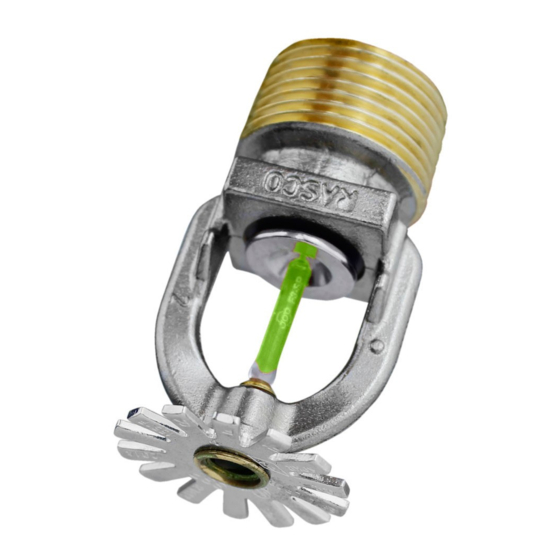

The Model F1FR automatic sprinkler, utilizes a 3mm
The glass bulb consists of an accurately controlled
At normal temperatures, the glass bulb contains the
The temperature rating of the sprinkler is identified by
Bulletin 143
D
Rev.
Continued
