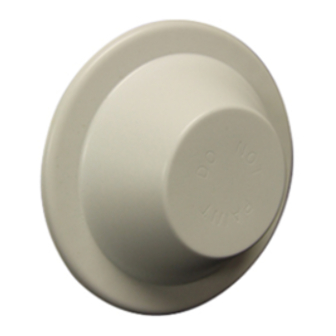

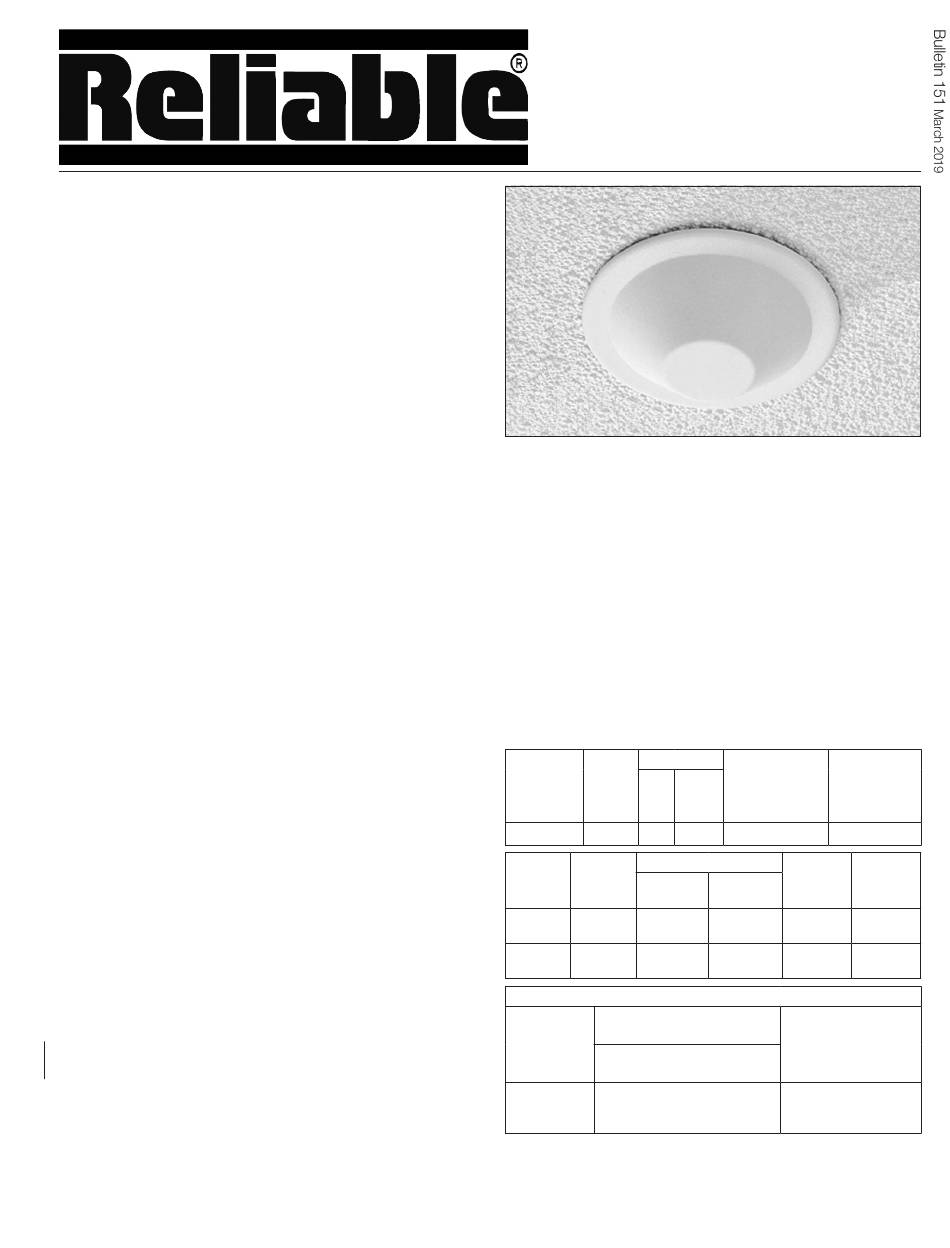

Concealed quick response extended coverage sprinkler

Advertisement

Quick Links

Concealed Quick Response
Sprinkler Coverage
to 20' x 20' (6.0 m x 6.0 m)

Features

1. Quick response performance.
2. Push on, thread off, sturdy convenient
cover plate.
3. Factory assembled sprinkler and
cup, shipped complete with protec-
tive cap.
4. Sprinkler assembly and cover plate
separately packaged.
5. Two Versions:
• ½" (13mm) Adjustment
/
" (8mm) Adjustment
5
16
6. Rugged damage resistant assembly.
No exposed thermal element.
7. Utilizes the Model F1FR QREC
Pendent Sprinkler.
8. Aesthetic ceiling profile.
9. Standard finishes in white painted or
chrome plated. Other color-painted
and specialty finishes available.
For Model F1FR QREC CCP ½" K 5.6 (80) Sprinkler Types
refer to Bulletin 028 for technical specifications and
approvals.

Product Description

Model F1FR QREC Quick Response Extended Coverage
Concealed Sprinkler is an attractive, low profile concealed
sprinkler assembly. This sprinkler assembly utilizes a Model
F1FR QREC pendent sprinkler in a Model CCP cup and push-
on thread-off cover plate assembly. The cup is securely factory
threaded on the sprinkler' s inlet end. The assembly is shipped
with a protective cap. The sprinkler and cup are easily installed
into the sprinkler fitting using the Model GFR2 Sprinkler Wrench.
The cover plate assembly is attached to the sprinkler cup us-
ing a flexible tooth threaded engagement. The cover plate is
attached to the skirt using 135°F (57°C) ordinary temperature
classification solder.
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1FR QREC CCP
Concealed Quick Response
Extended Coverage
Sprinkler
When the ceiling temperature rises, the solder holding the
cover plate melts, allowing the release of this part and thus
exposing the Model F1FR QREC sprinkler inside to the rising
ambient temperature. The Temperature rating of the sprinkler
identified by the color of the glass bulb.
Model F1FR QREC automatic sprinkler utilizes a 3.0 mm fran-
gible glass bulb. This sprinkler has demonstrated response
times in laboratory tests which are five times faster than stan-
dard response sprinklers. This quick response enables the
Model F1FR QREC sprinkler to apply water to a fire faster than
standard sprinklers of the same temperature rating.
Approval Type:
Quick Response Extended Coverage — Light Hazard
Technical Data:
K Factor
Nominal
Thread
Orifice
Size
US Metric
/
" (20mm) ¾" (R¾) 8.0
115.3
17
32
Temp. Rating
Thread
Model
Size
Sprinkler
¾" NPT
F1FR
135°F
(R¾)
QREC
57°C
¾" NPT
F1FR
155°F
(R¾)
QREC
68°C
Coverage Area
Pressure
psi (bar)
Flow Rate
gpm (L/m)
K=8.0
(Metric 115.3)
26 (98.4)
10.6 (0,7)
33 (125.0)
17.0 (1,2)
40 (151.4)
25.0 (1,7)
135°F (57°C) Only
(1)
Note: 1 bar = 100 kPa
Bulletin 151
March 2019
Sprinkler
Approval
Ident.
Organizations
Number
(SIN)
1,2,3
R4842
Max.
Bulb
Ceiling
Color
Cover
Temp.
135°F
100°F
Orange
57°C
38°C
135°F
100°F
Red
57°C
38°C
Max. Enclosure Area
Width x Length
ft. x ft. (m x m)
16 x 16 (4.9 x 4.9)
18 x 18 (5.5 x 5.5)
20 x 20
(6.0 x 6.0)
(1)
(1)
