Lantronix EMG 8500 Quick Start Manual

™
EMG
!
Thank you for choosing Lantronix. Please register the EMG 8500 in order to receive notifications for
firmware and documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX
Quick Start Guide
START

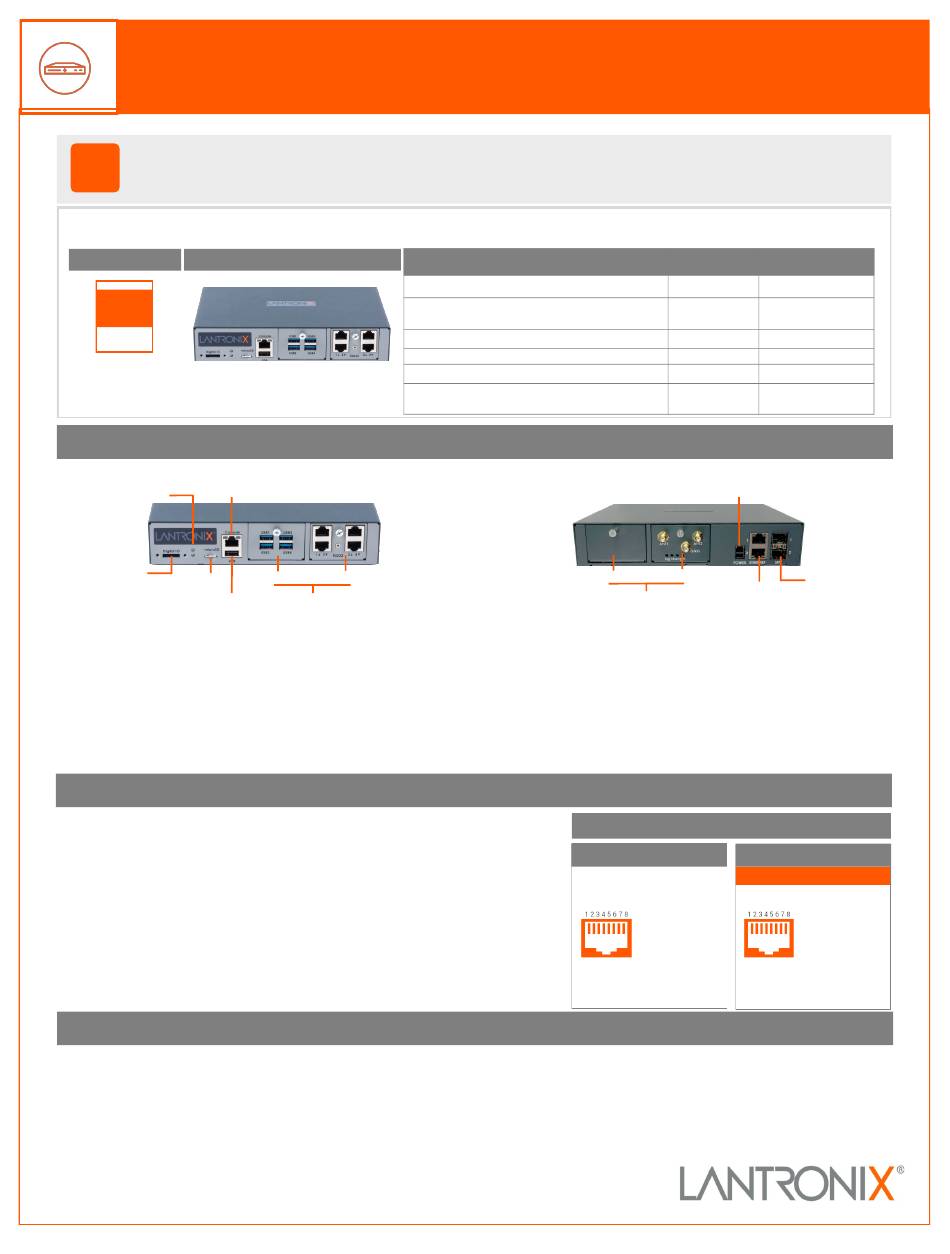

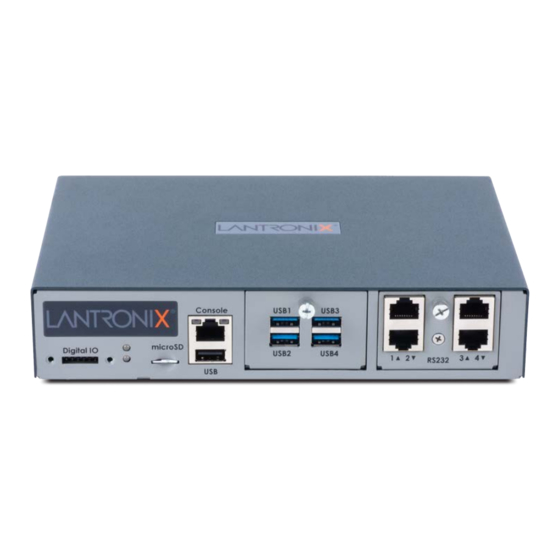

EMG851210SP with USB and RJ45 FRUs shown.
Additional FRU combinations are available.

1. HARDWARE OVERVIEW

Front View
Console Port
LEDs
DIO*
Micro SD
USB Port
The EMG 8500 unit offers up to 8 RJ45 (RS-232) or USB serial device port connections in two user-swappable, front I/O module device bays. The
attached equipment requires an available console, AUX, or serial port (RS-232). Dual Ethernet or dual SFP ports provide in-band management access,
allowing remote management of equipment using familiar tools such as Telnet or Secure Shell (SSH). Two user-swappable connectivity module bays
on the back of the EMG unit provide out-of-band management access via LTE cellular modem FRU, or a local terminal can be used. In the event that
the IP network is unavailable, the EMG 8500 unit can fail-over to the secondary connectivity interface. Once connected, the user has access to the
server or IT equipment's command line interface (CLI) via the console port to perform maintenance or management tasks.
*DIO adapter is available and sold separately.
All EMG 8500 models are compatible with a variety of equipment, including:
• Switches • Routers • Firewalls • Servers • UPS systems • PBX systems • Telecom switches • PDU (supported brands)

2. CONNECTING THE EMG 8500

The front console port allows a dumb terminal or PC with terminal emulation software to
locally access management functions and connected devices.
The device ports allow simple and flexible connections to serial devices using adapters and
a standard CAT5 cable. Connect one end of the CAT5 cable to the device port and the other
end to an adapter that attaches to the serial console of the target system.
For example, to connect a PC to the console port of the EMG 8500, you need the RJ45 to
DB9F Adapter and a standard CAT5 cable which is supplied with the unit.
The default communication parameters for the device ports and console ports are:
• 9600 baud • 1 stop bit • 8 data bits • No flow control • No parity

3. HARDWARE INSTALLATION

1. Install the unit on a desktop or other flat, horizontal surface. You may optionally mount the EMG 8500 in a 19-inch rack or on a wall using the
optional mount kit accessories.
rack, it is recommended that the rack have a ventilation fan.
2. Connect the equipment to the numbered device ports on the front of the unit using the appropriate cables and adapters.
3. Connect the unit to the network using the upper network port (Ethernet 1).
4. Connect the power cord to apply power. The top front LED turns green to indicate that power is ON and at least one of the Ethernet ports has a link
or both Ethernet ports are disabled. The LED blinks red if none of the enabled Ethernet ports has a link.
5. Wait about a minute and a half for the boot process to complete. The first time you power up the EMG unit,
Eth1 tries to obtain its IP Address via DHCP. View this IP Address by running Lantronix Provisioning Manager
application or by connecting a terminal to the console port to access the command line interface.
8500 Quick Start Guide
EMG 8500
External Universal AC (100W, 12V) Power Supply
North American Power Cord - 110V AC power cord, 8
ft (2.43m), RoHS
RJ45 to DB9F Adapter
RJ45 to RJ45, CAT5 Cable, 6.6 ft (2 m)
RJ45 Loopback Cable
Additional I/O and Connectivity FRUs are available
and sold separately.
Bay 1 Bay 2
Device Ports (Modular)
Warning: If rack mounting the EMG, do not block the air vents on the sides of the unit. If mounted in an enclosed
Accessories
Bay 1
Connectivity Ports (Modular)
Console Port (RS-232)
1. RTS
2. DTR
3. TX
4. GND
5. GND
6. RX
7. DSR
8. CTS
Not Reversible
1
Edge Management
Gateway
Part Number Quantity
520-0164-00 1
500-041-R 1
200.2070A 1
200.0062 1
500-153 1
varies varies
Back View
Power input
Bay 2
SFP
Ethernet
Default Pin Assignments
Device Ports (RS-232)
Reversed by Default
(Out) 1. CTS
(Out) 2. DSR
(Out) 3. RX
4. GND
5. GND
(In) 6. TX
(In) 7. DTR
(In) 8. RTS
Software Reversible
(In)
(In)
(In)
(Out)
(Out)
(Out)
