Item #317526607/317526608
Model #IS01a012NK-50W1/IS01a012NK-50B1

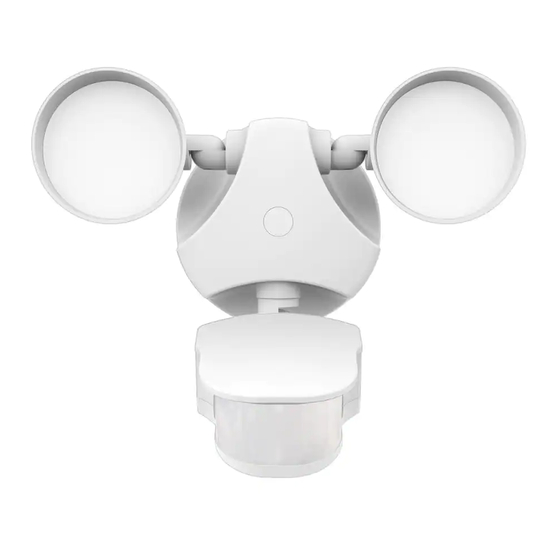

USE AND CARE GUIDE
MOTION SECURITY LIGHT
Questions, problems, missing parts?
8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-866-308-3976
HOMEDEPOT.COM
THANK YOU
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Defiant IS01a012NK-50W1
Summary of Contents for Defiant IS01a012NK-50W1
- Page 1 Item #317526607/317526608 Model #IS01a012NK-50W1/IS01a012NK-50B1 USE AND CARE GUIDE MOTION SECURITY LIGHT Questions, problems, missing parts? 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-866-308-3976 HOMEDEPOT.COM THANK YOU We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of...
-
Page 2: Table Of Contents
Table of Contents Tools Required ........3 Table of Contents ........2 Hardware Included .........4 Safety Information ........2 Package Contents ........4 Warranty ...........2 Installation ..........5 5-Year Limited Warranty ......2 Operation...........8 Pre-Installation .........3 Care and Cleaning ........10 Planning Installation ......3 Troubleshooting ........10 ........3 Safety Information PRECAUTIONS WARNING: Turn the power off at the circuit breaker or... -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this SPECIFICATIONS Up to 40 ft. (12.2 m) (Varies with surrounding temperature) Range Up to 240° Sensing angle 12 Watts Wattage... -
Page 4: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware shown to actual size. Part Description Quantity Rubber plug Mounting bracket screw Mounting bracket screw Wire nut Mounting bolt Mounting bracket (not to scale) PACKAGE CONTENTS Part Description Quantity Lamp head Motion sensor... -
Page 5: Installation
Installation Determining the mounting location NOTE: mounted higher than recommended, aiming the sensor down will reduce the coverage area. Wall Mount □ Determine the mounting location – wall or eave mount. Eave Mount □ Position the lamp heads (A) in the general direction of the desired light coverage. - Page 6 Installation (continued) Mounting the light fixture □ Align the xture (B) with the mounting plate (FF). And then tighten the mounting bolt (EE) securely through the center of the mounting plate (FF). Do not over tighten. □ Push the rubber plug (AA) rmly into the mounting bolt hole on the light xture (B).
-
Page 7: Operation
Operation Adjusting the lamp heads WARNING: □ Turn the power on at the circuit breaker or fuse and turn on the wall switch. □ If needed, gently grasp the lamp heads (A) and tilt them up or down or side to side to adjust the light coverage area. - Page 8 Operation (continued) Adjusting the SENSITIVITY control □ To increase the sensitivity, turn the “SENSITIVITY” control counterclockwise. □ To decrease the sensitivity, turn the “SENSITIVITY” control clockwise. NOTE: The motion sensor (C) is more sensitive to motion moving across the front of the sensor. The motion sensor (C) is less sensitive to motion moving directly toward the front of the sensor.
-
Page 9: Care And Cleaning
Care and Cleaning □ □ □ Troubleshooting Problem Possible Cause Solution □ □ The light will not come on. The light switch is turned off. Turn the light switch on. □ □ The fuse is blown or the circuit breaker Replace the fuse or turn the is turned off. - Page 10 Troubleshooting (continued) Problem Possible Cause Solution □ □ The lights stay on continuously. The motion sensor may be picking up a Decrease the “SENSITIVITY” heat source, such as an air vent, dryer setting or reposition the motion sensor. surface. □ □...
