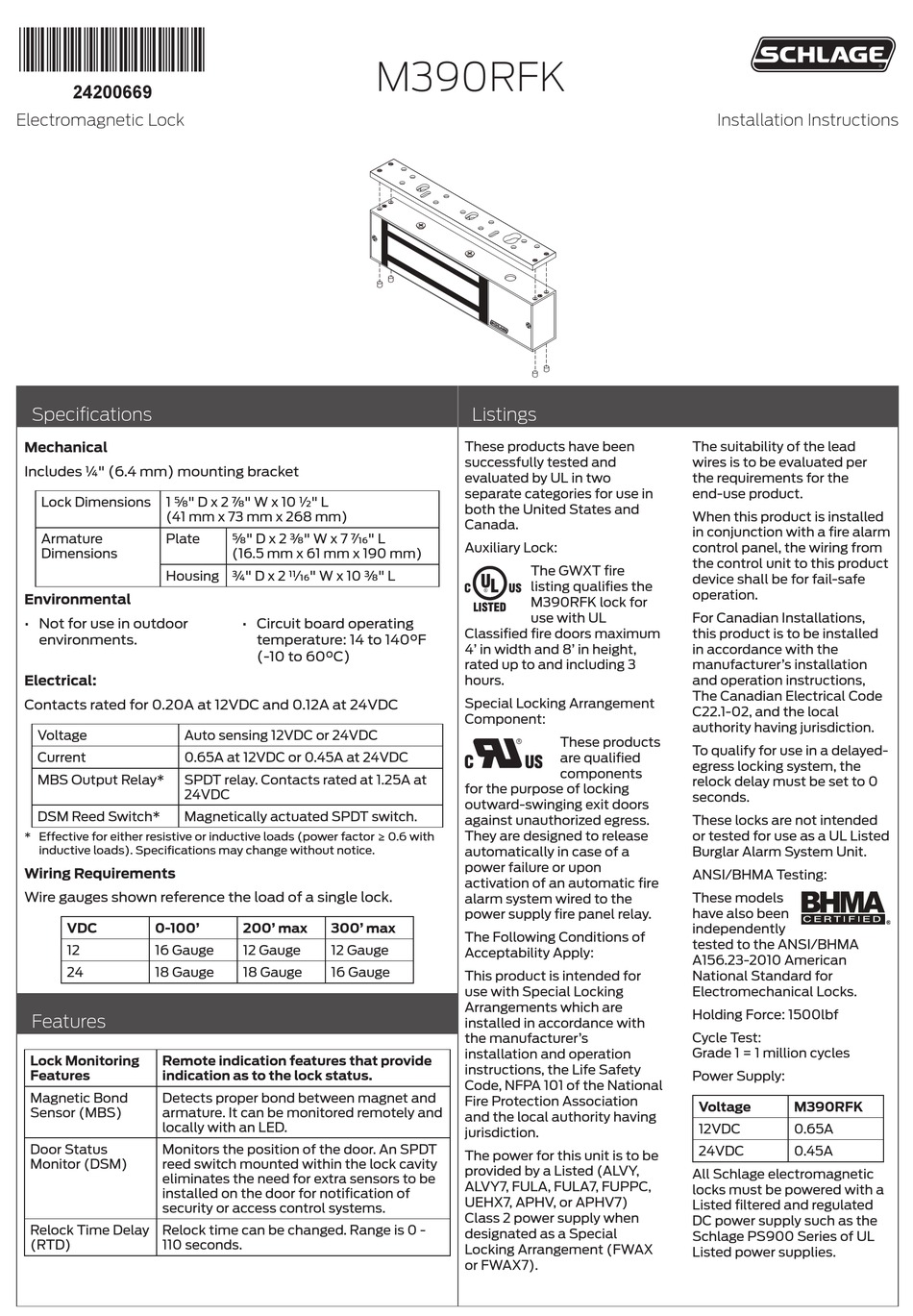

Schlage M390RFK Installation Instructions

*24200669*
24200669
Electromagnetic Lock
Specifications
Mechanical
Includes 1/ 4" (6.4 mm) mounting bracket
Lock Dimensions 1 5/8" D x 2 7/8" W x 10 1/2" L
(41 mm x 73 mm x 268 mm)
Armature Plate
Dimensions
Housing 3/ 4" D x 2 11/16" W x 10 3/8" L
Environmental
• Not for use in outdoor
environments.
Electrical:
Contacts rated for 0.20A at 12VDC and 0.12A at 24VDC
Voltage Auto sensing 12VDC or 24VDC
Current 0.65A at 12VDC or 0.45A at 24VDC
MBS Output Relay* SPDT relay. Contacts rated at 1.25A at
24VDC
DSM Reed Switch* Magnetically actuated SPDT switch.
* Effective for either resistive or inductive loads (power factor ≥ 0.6 with
inductive loads). Specifications may change without notice.
Wiring Requirements
Wire gauges shown reference the load of a single lock.
VDC 0-100'
12 16 Gauge
24 18 Gauge
Features
Lock Monitoring Remote indication features that provide
Features indication as to the lock status.
Magnetic Bond Detects proper bond between magnet and
Sensor (MBS) armature. It can be monitored remotely and
locally with an LED.
Door Status Monitors the position of the door. An SPDT
Monitor (DSM) reed switch mounted within the lock cavity
eliminates the need for extra sensors to be
installed on the door for notification of
security or access control systems.
Relock Time Delay Relock time can be changed. Range is 0 -
(RTD) 110 seconds.
M390RFK
5/8" D x 2 3/8" W x 7 7/16" L
(16.5 mm x 61 mm x 190 mm)
• Circuit board operating
temperature: 14 to 140°F
(-10 to 60°C)
200' max 300' max
12 Gauge 12 Gauge
18 Gauge 16 Gauge
Listings
These products have been
successfully tested and
evaluated by UL in two
separate categories for use in
both the United States and
Canada.
Auxiliary Lock:
The GWXT fire
listing qualifies the
M390RFK lock for
use with UL
Classified fire doors maximum
4' in width and 8' in height,
rated up to and including 3
hours.
Special Locking Arrangement
Component:
These products
are qualified
components
for the purpose of locking
outward-swinging exit doors
against unauthorized egress.
They are designed to release
automatically in case of a
power failure or upon
activation of an automatic fire
alarm system wired to the
power supply fire panel relay.
The Following Conditions of
Acceptability Apply:
This product is intended for
use with Special Locking
Arrangements which are
installed in accordance with
the manufacturer's
installation and operation
instructions, the Life Safety
Code, NFPA 101 of the National
Fire Protection Association
and the local authority having
jurisdiction.
The power for this unit is to be
provided by a Listed (ALVY,
ALVY7, FULA, FULA7, FUPPC,
UEHX7, APHV, or APHV7)
Class 2 power supply when
designated as a Special
Locking Arrangement (FWAX
or FWAX7).
Installation Instructions
The suitability of the lead
wires is to be evaluated per
the requirements for the
end-use product.
When this product is installed
in conjunction with a fire alarm
control panel, the wiring from
the control unit to this product
device shall be for fail-safe
operation.
For Canadian Installations,
this product is to be installed
in accordance with the
manufacturer's installation
and operation instructions,
The Canadian Electrical Code
C22.1-02, and the local
authority having jurisdiction.
To qualify for use in a delayed-
egress locking system, the
relock delay must be set to 0
seconds.
These locks are not intended
or tested for use as a UL Listed
Burglar Alarm System Unit.
ANSI/BHMA Testing:
These models
have also been
independently
tested to the ANSI/BHMA
A156.23-2010 American
National Standard for
Electromechanical Locks.
Holding Force: 1500lbf
Cycle Test:
Grade 1 = 1 million cycles
Power Supply:
Voltage M390RFK
12VDC 0.65A
24VDC 0.45A
All Schlage electromagnetic
locks must be powered with a
Listed filtered and regulated
DC power supply such as the
Schlage PS900 Series of UL
Listed power supplies.
