I
Manuale Operativo
COLLEGAMENTI RS232C e
COLLEGAMENTI ALIMENTAZIONE ESTERNA (a richiesta)
Cablaggio del cavo schermato
Idroscan:
Pin 1  RTS
Pin 2  RX
Pin 3  TX
Pin 5  GND
Pin 7  +V (Alimentazione
esterna 12÷24 VDC)
Pin 8  -V (Alimentazione
esterna)
PC-HOST:
Pin 4  RTS
Pin 3  TX
Pin 2  RX
Pin 5  GND
MO.IDRO.533.R5
Idroscan
page 21
Operating Manual
GB

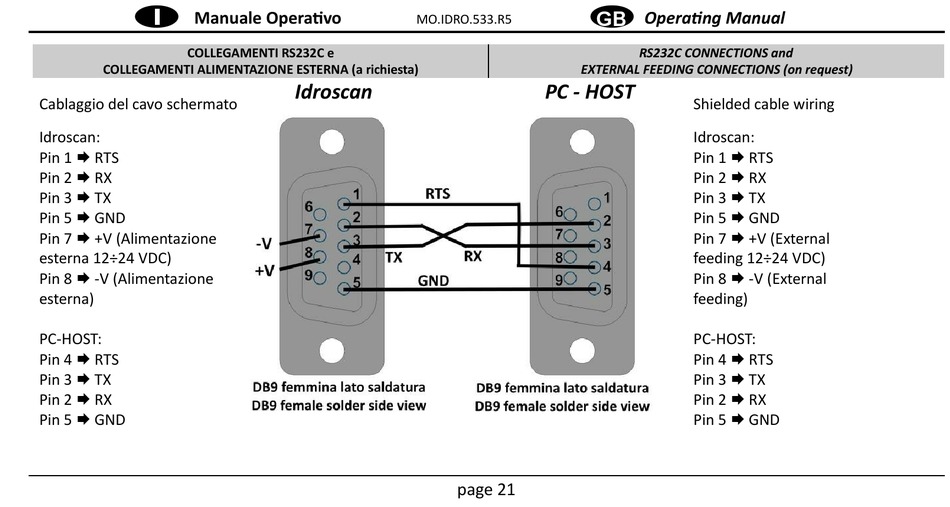

RS232C CONNECTIONS and
EXTERNAL FEEDING CONNECTIONS (on request)
PC - HOST
Shielded cable wiring
Idroscan:
Pin 1  RTS
Pin 2  RX
Pin 3  TX
Pin 5  GND
Pin 7  +V (External
feeding 12÷24 VDC)
Pin 8  -V (External
feeding)
PC-HOST:
Pin 4  RTS
Pin 3  TX
Pin 2  RX
Pin 5  GND
