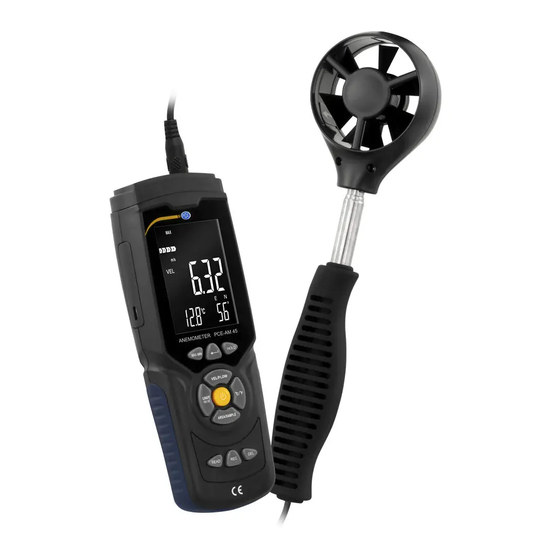

- Page 1 User Manual PCE-AM 45 Anemometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 30 December 2021 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Lowest, highest and average measured value ........ 10 Highest measured value ....................10 Average reading ......................11 Lowest measured value ....................11 Wind direction .........................11 Freezing the measured value ..................12 Recording the measured values ..................12 Software ....................13 10 Warranty ....................16 11 Disposal ....................16 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Specifications
70 x 194 x 35 mm / 2.7 x 7.6 x 1.3" Weight 400 g / 14.1 oz Delivery scope 1 x handheld anemometer PCE-AM 45 1 x micro USB cable 1 x carrying case 4 x 1.5 V AAA battery 1 x user manual ©... -
Page 5: Device Description
Device description © PCE Instruments... - Page 6 Numeric keypad digit: 0 Clear memory Numeric keypad digit: . USB interface for data transfer LC display Connection for the flow sensor Connection cable of the flow sensor Handle of flow sensor Telescopic arm of flow sensor Flow sensor © PCE Instruments...
-
Page 7: Display Description
Display description © PCE Instruments... -
Page 8: Numeric Keypad
It may happen that a number has to be entered; for example, when entering the memory interval. To enter this function, each key changes its function to a specific numerical key. All four cells must always be completed for each entry. A comma key is also available for volume flow measurement. © PCE Instruments... -
Page 9: Switching The Meter On And Off
Enter key when switching on and switch on the meter. The display shows "no". The automatic power off function is now deactivated. Now release all keys to make a measurement. The automatic power off function reactivates whenever the meter is switched off. © PCE Instruments... -
Page 10: Making A Measurement
To make a measurement, align the flow sensor with the flow direction. An arrow inside the sensor indicates the orientation in relation to the wind flow. Wait for at least two seconds for the reading to stabilise. © PCE Instruments... -
Page 11: Beaufort Scale
100 or 10 accordingly. Setting the unit of the volume flow measurement To select the unit FT³ or m³, press and release the "UNIT" key once. Hint: The function also has an effect on the area specification. © PCE Instruments... -
Page 12: Area Specification For Volume Flow Measurement
Highest measured value When displaying the highest measured value, only the highest measured value is displayed after activating this function. When "MAX" is displayed, this function is active. When the function is changed, the value expires. © PCE Instruments... -
Page 13: Average Reading
Pay attention to the marking inside the sensor for the flow direction. The display shows the current angle degree and the compass direction as letters: E: East W: West S: South N: North ES: Southeast EN: Northeast WS: Southwest WN: Northwest © PCE Instruments... -
Page 14: Freezing The Measured Value
"READ" key, the next memory value is displayed. Now press the "AREA/SAMPLE" key and type in the memory location you want to read out. To return to normal measuring mode, keep the "READ" key pressed until "READ" disappears from the display. © PCE Instruments... -
Page 15: Software
The window for viewing the saved readings on the meter has an identical structure. "Erase Storage" Clearing the memory of the meter. As soon as you click on this button, all measured values are immediately deleted. There is no warning in advance. © PCE Instruments... - Page 16 This function is only available when reading out the meter. Close window Delete all displayed measured values Close programme The scaling of the current graph is adjusted so that all measured values in the current measurement period are visible in one window. © PCE Instruments...
- Page 17 The exported data is saved in XLS format. This could look like this, for example: After you have selected "Real Time Measure", a new window opens for live measurement on the PC. From here, the measurement data is transferred directly to the PC. © PCE Instruments...
-
Page 18: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 19 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
