Operating Instructions

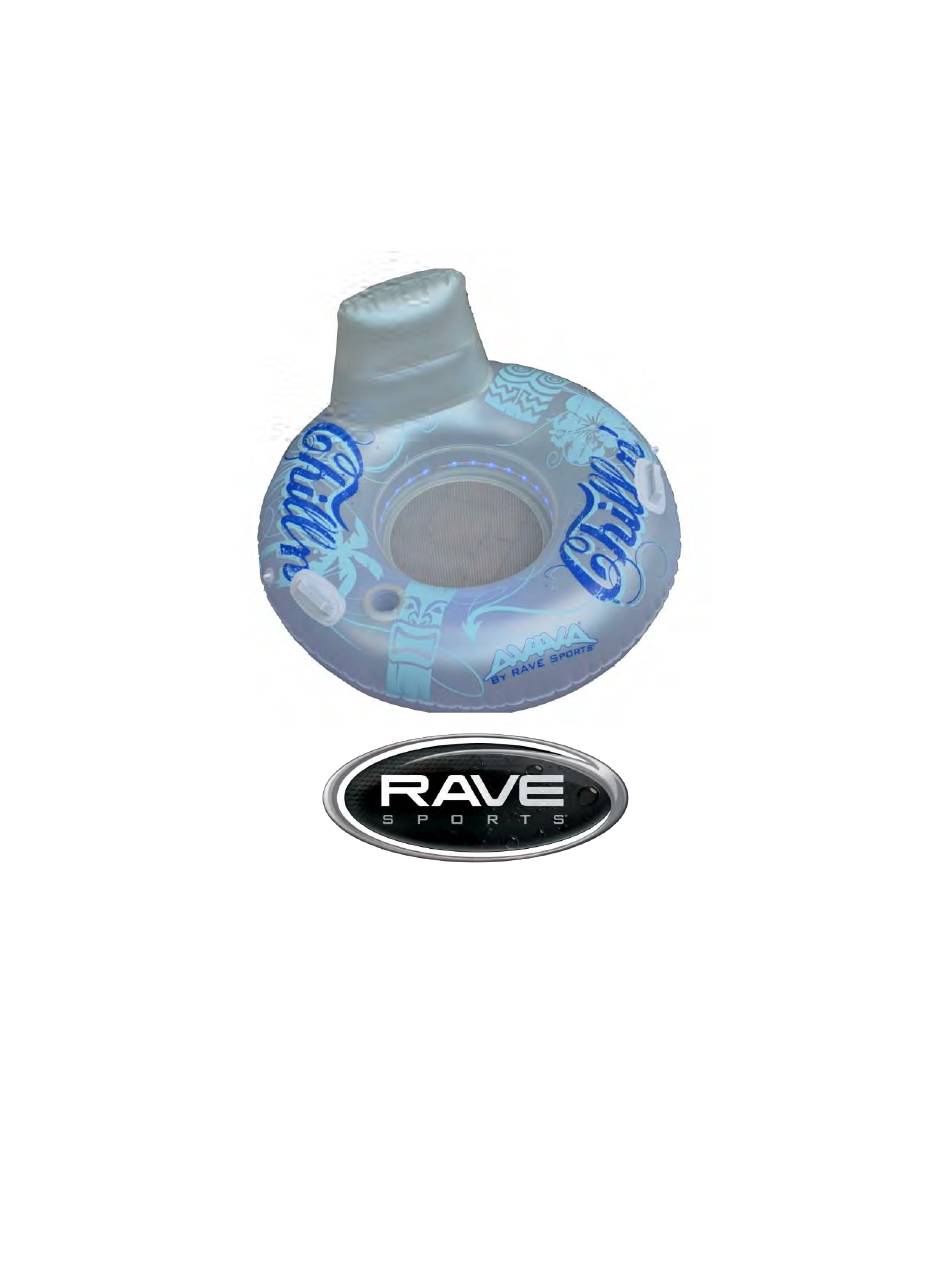

Chillin' Glow Float Tube
(Item # 02812)
WWW.RAVESPORTS.COM
Copyright © 2017
All rights reserved. No part of this publication may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopy, recording, or any
information storage and retrieval system, without permission in writing from the
publisher. Requests should be mailed to RAVE Sports, 985 Aldrin Drive #301, Eagan,
MN 55121.
1
Advertisement
Related Manuals for Rave Sports Chillin' Glow Float Tube
Summary of Contents for Rave Sports Chillin' Glow Float Tube
- Page 1 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording, or any information storage and retrieval system, without permission in writing from the publisher. Requests should be mailed to RAVE Sports, 985 Aldrin Drive #301, Eagan, MN 55121.
- Page 2 Float Tube™ will create a whole new level of fun and excitement to your time on the water. We at RAVE Sports want your experience with our products to be the best it can be. Therefore, please take a few minutes to read the information contained in this manual before inflating and using your product.
-
Page 3: Main Components
Main Components Chillin’ Glow Float Tube Battery Holder / Controller (#20934 tube only) (#WP-0189) IMPORTANT: The inflated tube and the controller are separate components so each can easily be replaced, if damaged. -
Page 4: Battery Information And Installation
Battery information and installation Use 4 - AA size batteries only (not included). For maximum life and performance, use 1.2V NiMH (2400 mAH rated capacity or higher) rechargeable batteries. Charge fully before using. Examples: 2550 mAh Panasonic Eneloop 2450 mAh Duracell (DC1500) Pro NiMH Rechargeable NiMH Rechargeable 2400 mAh Powerex Imedion... - Page 5 Insert batteries into the battery holder. Always insert the negative end of the battery (flat end) against the spring in the battery holder. Depress the spring to swing the positive end into place. Ensure the battery is fully engaged at both ends and it is squarely in place.
- Page 6 Installing controller into Chillin’ Glow Float Tube 1. Inflate tube first. 2. Plug the two ends of the connector together. IMPORTANT: Ensure the connector latch is secured. The LED’s will not function if this connection is not done correctly. 3. Orient the controller so that the locking screw and tab on the controller are lined up with the nut and tab receiver on the base cup.
- Page 7 Controller Operation Remove protective film on faceplate before use. Photocell Master ON/OFF MODE control (hidden button) Photocell ON/OFF (hidden button)
- Page 8 5 Modes of Operation: 1. All BLUE LED’s constant ON. 2. All GREEN LED’s constant ON. 3. All RED LED’s constant ON. 4. Slow transition between BLUE/GREEN/RED. 5. Strobe flash between BLUE/GREEN/RED. Depress the hidden button to switch between modes. NOTE: The mode button is hidden to prevent unwanted tampering or switching the preferred illumination setting of the tube.
- Page 9 Maximizing Illumination Time/Battery Life Fully charged 2400mAH NiMH batteries should provide approximately 9-11 hours of illumination time (when in Mode #1: BLUE LEDs constant ON). TIPS: • Blue LED’s draw the most power. RED LED’s draw the least. Therefore, you may notice that tubes set on Mode 1 will have shorter battery life than tubes set at Mode 3.
- Page 10 Battery Charging IMPORTANT: Use “Smart” chargers only to maximize battery life of rechargeable batteries. Lower cost consumer chargers are available at your local retailer. Good chargers provide an LCD display showing the charge status for each battery independently. Additional features to look for: •...
-
Page 11: Warranty
Repair and maintenance Small punctures in a Chillin’ Glow Float Tube can easily be repaired. Order Tear Aid Patch (#20100) from RAVE Sports. This self-adhesive material quickly and permanently repairs most punctures in PVC tubes. Storage When the Chillin’ Glow Float Tube is not being used, remove controller, remove batteries, and dry the tube completely before storing. - Page 12 WWW.RAVESPORTS.COM RAVE SPORTS A Revel Match, LLC Company 985 Aldrin Drive #301 Eagan MN, 55121 800.659.0790 June 2017...
