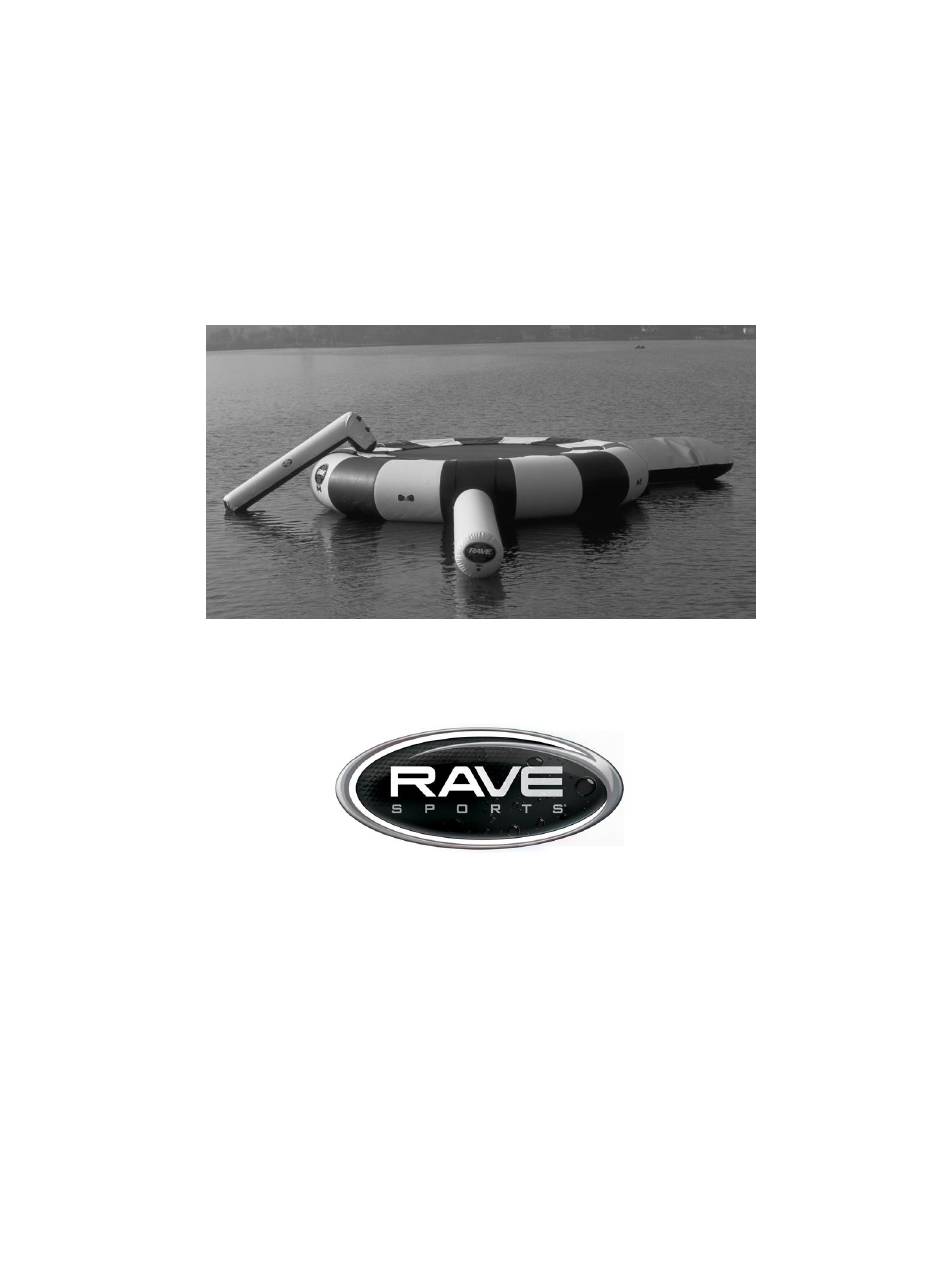

Classic Aqua Jump
25
Owner's Manual
WWW.RAVESPORTS.COM
Copyright © 2017
All rights reserved. No part of this publication may be reproduced or transmitted in any form or
by any means, electronic or mechanical, including photocopy, recording, or any information
storage and retrieval system, without permission in writing from the publisher. Requests
should be mailed to RAVE Sports, 985 Aldrin Drive #301 Eagan, MN 55121. 800.659.0790

Advertisement

loading

Related Manuals for Rave Sports Classic Aqua Jump 25

Summary of Contents for Rave Sports Classic Aqua Jump 25

  • Page 1 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording, or any information storage and retrieval system, without permission in writing from the publisher. Requests should be mailed to RAVE Sports, 985 Aldrin Drive #301 Eagan, MN 55121. 800.659.0790...

  • Page 2: Table Of Contents

    Table of Contents Introduction ................3 Safety Rules and Information ..........4 Classic™ 25 ............ 9 ® Aqua Jump Classic™ ......10 ® Assembling Your Aqua Jump Anchoring ................16 Cleaning and Storage ............18 Repairs ................20 Package Contents Aqua Jump 25’...

  • Page 3: Introduction

    Aqua Jump. If you have any questions regarding this product, please call RAVE Sports at 1-800-659-0790. Please have your serial number available.

  • Page 4: Safety Rules And Information

    W A R N I N G UNSAFE USE OF THE BONGO CAN RESULT IN PERSONAL INJURY OR DEATH. To reduce the risk of injury, read and follow all instructions and warnings in this manual. Do not use this product unless you understand and accept the risk of injury involved with this activity.
  • Page 5 • Choose a location for your product that is most protected from wind, of sufficient water depth, and free of obstructions above and below the water. • Always anchor the Aqua Jump securely before it is used. • Always wear a U.S. Coast Guard approved Type III (PFD) vest when using the products.
  • Page 6 • When not in use, secure the product against unauthorized or unsupervised use. • Never use the Aqua Jump unless the safety pad is in place and securely fastened to the trampoline frame. • Inspect your product for any worn, defective, or missing parts. •...
  • Page 7 • Ensure proper air pressure is maintained while the product is in use. Check air pressure frequently especially on very hot/cold days. • This device is not designed to be used as a life saving device. • Take off watches, rings and other sharp objects before use. •...
  • Page 8 W A R N I N G • Misuse and abuse of the Aqua Jump is dangerous and can cause serious injuries including broken bones, cuts, nerve damage, spinal cord and brain injury, or death. • Trampolines, being rebound devices, propel the performer to unaccustomed heights and into a variety of body movements.

  • Page 9: Aqua Jump Classic™ 25

    Aqua Jump Classic 25 (Item #02011 & #02086) Product Minimum Maximum Maximum Working Pressure Water Depth Capacity Weight AJ25 10ft 10 Users 2000lb 2 psi (0,14bar (3,1m) (907kg)

  • Page 10: Assembling Your Aqua Jump

    Locate the valve of the Aqua Jump and unscrew the cap. Note: The AJ25’ has two valves to speed inflation/deflation. We recommend using the High Speed Inflator/Deflator from RAVE Sports to inflate and deflate (Part # 01083). To lock open valve, depress stem and OPEN rotate ¼...
  • Page 11 NOTE: This inflation adaptor will automatically open the valve when inserted and will close the valve when removed. You do not need to manually open/close the valve when using this special adaptor. If you will be using a shop vacuum or other inflation device with a larger nozzle, use the 1 ¼”...
  • Page 12 It is normal for the air pressure within the tube to fluctuate depending on air and water temperatures. It may be necessary to increase or decrease the air pressure in your product accordingly. To avoid damage on extremely hot days it may be necessary to check and release the air pressure from your product throughout the day.
  • Page 13 Attach the frame to the tube With another person helping, place the trampoline frame onto the inflated tube. IMPORTANT! Align the frame joints as close as possible to the junctions of the blue and yellow panels. This placement prevents the hardware from rubbing against the tube.
  • Page 14 Attach the jumping mat Lay the jumping mat inside the assembled frame with the warning labels of the mat facing up. Attach the mat to the frame by hooking one end of the spring to the V-ring on the mat and the other end to the hole in the frame. Make sure that the hooks on each end of the spring point down toward the ground and are fully inserted into the frame.
  • Page 15 Attach the ladder and safety pad Position the ladder left of the air valve so that the warning label on the tube is visible to anyone climbing the ladder. Attach the ladder to the trampoline frame by looping the quick link under then around the frame and securing the quick link to the ladder webbing.

  • Page 16: Anchoring

    Aqua Jump due to waves and normal use. An Anchor Connecting System (part # 01024) is available through RAVE Sports, and does include a shock cord (bungee). • Please consult with local authorities regarding any specific anchoring restrictions in your area.
  • Page 17 Aqua Jump. • Adjust length of anchor line so that it is approximately 1-2 ft. longer than the depth of the water. The RAVE Sports anchor bungee will provide 2 ft. of stretch to absorb waves and any vertical bouncing motion. To help prevent flipping of your jump in high wind conditions, do not exceed 3 ft.

  • Page 18: Cleaning And Storage

    Aqua Jump, store it out of the sun whenever possible. For additional protection, we recommend using 303 protectant, which is a one-step product that provides UV protection. 303 is available from RAVE Sports at the number listed on the front of this manual.
  • Page 19 • Clean the inflatable completely with a mild soap and fresh water or a citrus based cleaner. NEVER USE PETROLEUM BASED PRODUCTS OR SOLVENTS FOR CLEANING. • NEVER USE A POWER WASHER SINCE THE HIGH PRESSURE WATER JET WILL DAMAGE THE SOFT PVC COATING ON THE TUBE BEYOND REPAIR.

  • Page 20: Repairs

    Repairs For large holes, tears or seam failures, contact RAVE Sports at 1-800-659-0790. For minor holes or tears: • Inflate the product and locate the leak by spraying the tube with mild soapy water. • Determine the hole size and cut a patch 1-2 inches wider than the diameter of the hole.
  • Page 24 WWW.RAVESPORTS.COM RAVE SPORTS A Revel Match, LLC Company 985 Aldrin Drive #301 Eagan MN, 55121 800.659.0790 June 2017...
