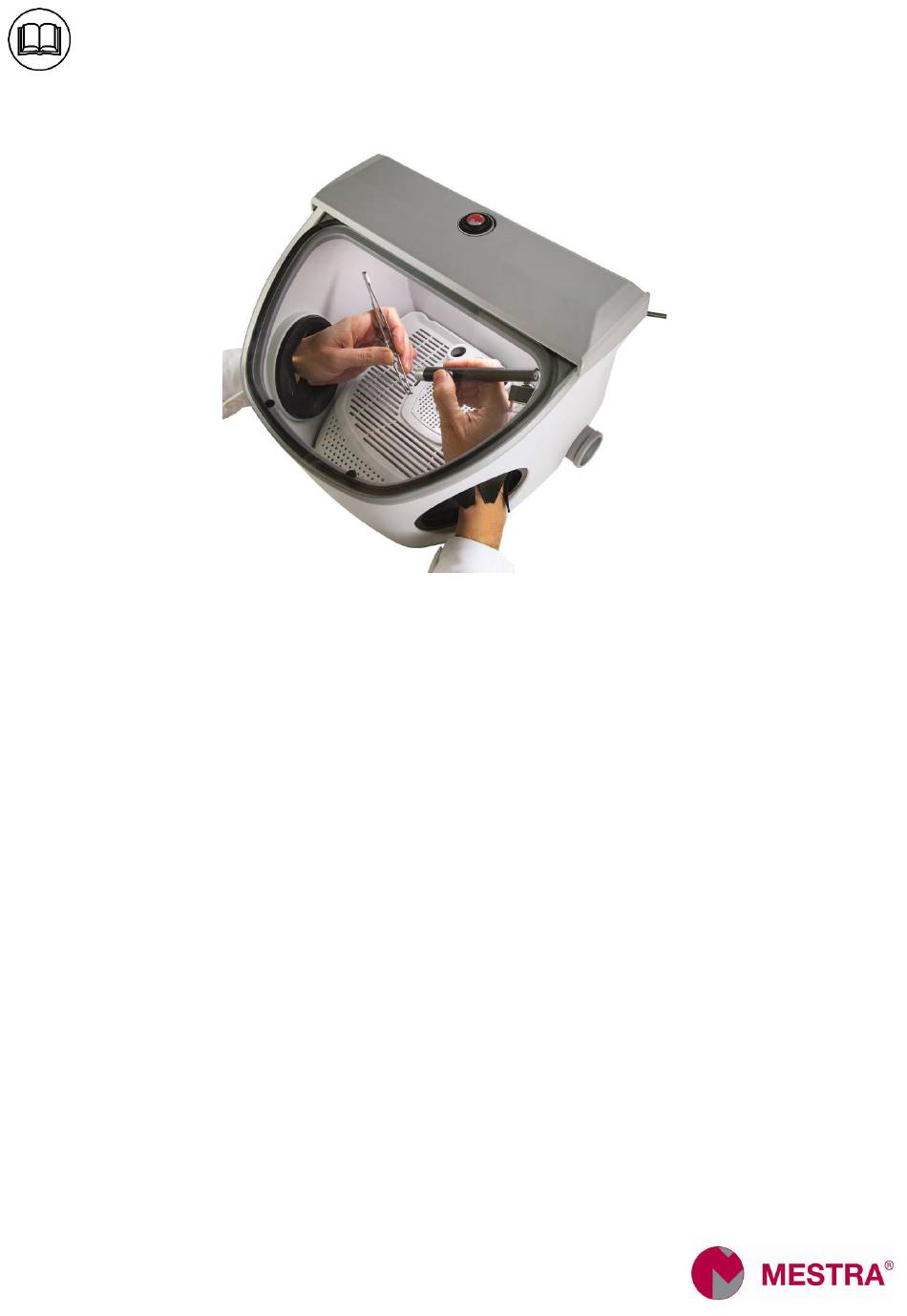

- Page 1 Rev. 01/04/2020 Ref. 080216 ECLIPSE ES ......5 Manual original EN......6...
- Page 3 Nº Ref. Descripción Description 080233-02 Interruptor Switch 080214-01B Tapa superior Upper cover 080214-01C Soporte cristal Glass support 080214-01D Soporte interruptor Switch support 080214-04 Barra de LED LED bar 080214-05 Difusor Diffuser 080214-07 Rejilla ventilación - pequeña Ventilation grill - small 080253-02 Bisagra Hinge...
- Page 4 Cristal / Glass Bandeja / Tray Interruptor / Switch Manguito de goma / Rubber sleeve Conexión aspiración exterior / External suction connection...
-
Page 5: Instalación
Cabina de repaso “Eclipse” La caja de repaso “Eclipse” está especialmente diseñada Características técnicas para el repasado de pequeñas piezas pertenecientes al Alto: ..............275 mm sector de la prótesis dental. Para conseguir unas óptimas Ancho: ............360 mm... -
Page 6: Installation
Finishing box “Eclipse” The "Eclipse" finishing is specially designed for the Technical characteristics reworking of small parts in the dental prosthesis sector. Height: ............275 mm achieve optimal performance product Width: ............. 360 mm performance, we recommend that you carefully read the Length: ............ - Page 7 Talleres Mestraitua S.L. Txori-erri Etorbidea, 60 T: (+34)944530388 - F: (+34)944711725 Your trusted brand mestra@mestra.es - www.mestra.es 48150 SONDIKA - BILBAO - ESPAÑA...
