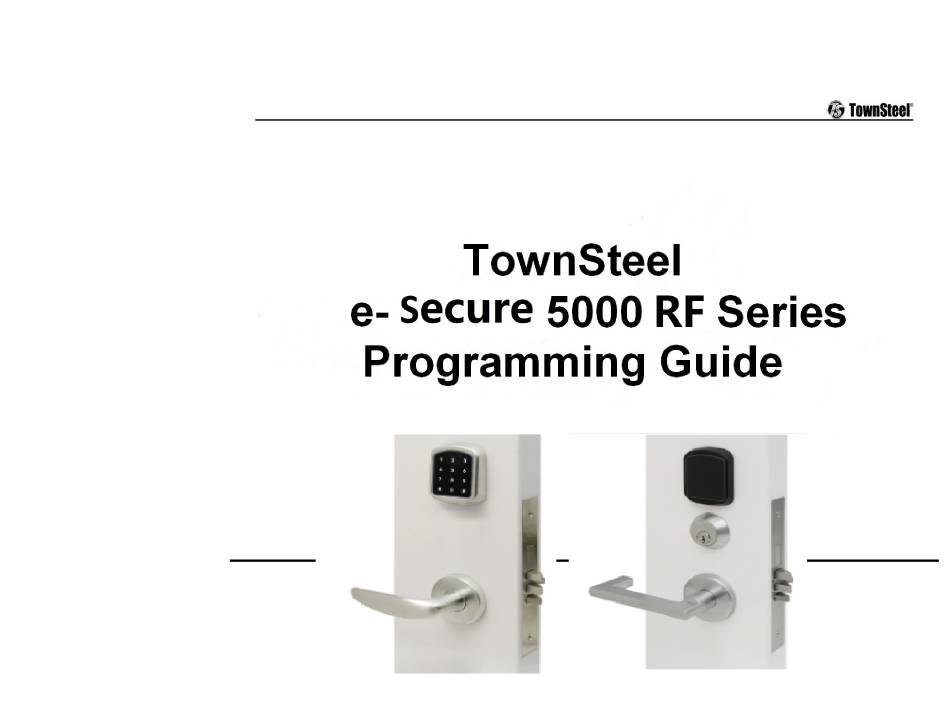

TownSteel e-Secure 5000 RF Series Programming Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-Secure 5000 RF Series and is the answer not in the manual?

Questions and answers

Related Manuals for TownSteel e-Secure 5000 RF Series

Summary of Contents for TownSteel e-Secure 5000 RF Series

  • Page 2: Table Of Contents

    Index General Information for WiFi Functionsꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 2 Definitionsꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ4 Factory Default Settingsꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 Important Notes ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 Change Master Codeꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 Add Credentialsꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 Add a User Code Add Multiple User Codes Add User Keycards Delete Credentialsꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 Delete User Code Delete User Keycard Reset to Factory Default Settings System Settings ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ...
  • Page 3 GENERAL LOCK INFORMATION FOR THE WiFi FUNCTION The 5000-RF Series lock is a versatile lock- it can be operated by a 6-10 digit PIN code, RFID card/FOB or through your smart phone APP via WiFi. The APP is called TSE Home- it is available for Android and IOS. The lock is operable without the APP (can use PIN codes and RFID credentials), the APP provides access to the WiFi features.
  • Page 4 Smartphone they must be on the same WiFi connection. You will need your WiFi password. The APP is not compatible with 5G networks. Click on the upper left corner of the APP to access the menu. Click on “Gateway Management”> “Add Gateway Box”> “Smart Gateway”>...

  • Page 5: Factory Default Settings

    Definitions Credential: The lock requires a valid credential to operate. A credential can be a 6-10 digit Master Code, User Code, or  Keycard/Fob. LED Indicator: The LED indicators are located around the keypad of the lock. Lock flashes green LED and/or ...

  • Page 6: Important Notes

    Important Notes To wake up the touch keypad, gently swipe or tap the keypad.  While in Factory Default Settings any credential will open the lock until a Master Code is programmed into the lock. When  any credential is presented the lock will flash red, then green, and unlock.

  • Page 7: Change Master Code

    Change Master Code Key Sequence For example, to change Master Code to “555555”, press: Notes  Factory Default Setting’s Master Code is 123456. It must be changed with the user’s own Master Code immediately.  Manufacturer assumes no liability, direct or indirect, due to failure to change Master Code. ...

  • Page 8: Add Multiple User Codes

    For example, to add User Code of “202020”, press:   Add Multiple User Codes Key Sequence User Code Key Sequence Additional User Codes Key Sequence: For example, to add User Codes “202020”, “303030”, and “404040”, press:                                                                                                                                                                                                                                                                Notes ...

  • Page 9: Delete Credentials

      Notes Keycards/Fobs can be added interchangeably with User Codes.  Multiple Keycards/Fobs can be added during the same programming sequence (like Additional User Codes Key Sequence).  Same Keycard/Fob cannot be programmed twice.   To exit, press asterisk (✴) or wait until the lock goes into Idle Mode (12 seconds). Delete Credentials Delete User Codes Key Sequence...

  • Page 10: System Settings

      Reset Lock to Factory Default Settings Key Sequence Notes  All credentials will be deleted, and the lock will reset to Factory Default Settings. System Settings Passage Mode Key Sequence Notes After creating a Passage Code or keycard, presenting it will activate the Passage Mode function. ...
  • Page 11    The Factory Default Setting is set to one credential.  Dual Verification Mode and Passage Mode cannot be programmed simultaneously. Adjust Keypad Sound Key Sequence        Notes  Disabling the sound only affects general operation, not during programming of the lock. During programming mode, lock will temporarily re-enable sound.

  • Page 12: Low Battery Warning

      Low Battery Warning When the battery voltage is low, unlocking the lock will display a green LED with an alarm followed by a red LED, then followed by a yellow LED with an alarm to indicate low power. Batteries should be changed as soon as this happens. When locking under low battery voltage condition, the lock will only use the warning sound to indicate low power.
  • Page 13   CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
