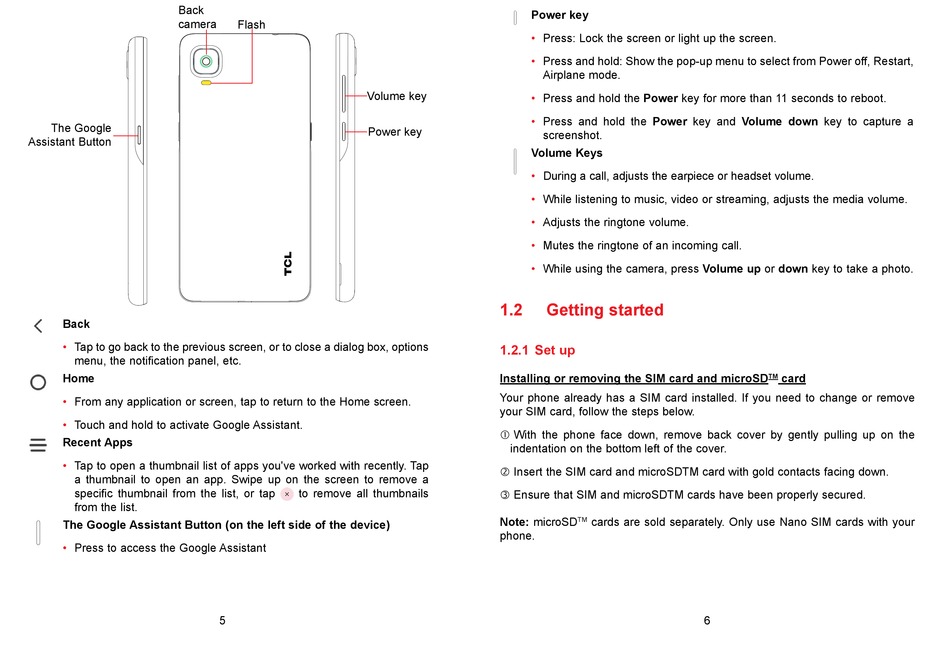

Getting Started - TCL A30 User Manual

Back
camera
The Google
Assistant Button
Back
• Tap to go back to the previous screen, or to close a dialog box, options
menu, the notification panel, etc.
Home
• From any application or screen, tap to return to the Home screen.
• Touch and hold to activate Google Assistant.
Recent Apps
• Tap to open a thumbnail list of apps you've worked with recently. Tap
a thumbnail to open an app. Swipe up on the screen to remove a
specific thumbnail from the list, or tap
from the list.
The Google Assistant Button (on the left side of the device)
• Press to access the Google Assistant
Flash
Volume key
Power key
to remove all thumbnails
5
Power key
• Press: Lock the screen or light up the screen.
• Press and hold: Show the pop-up menu to select from Power off, Restart,
Airplane mode.
• Press and hold the Power key for more than 11 seconds to reboot.
• Press and hold the Power key and Volume down key to capture a
screenshot.
Volume Keys
• During a call, adjusts the earpiece or headset volume.
• While listening to music, video or streaming, adjusts the media volume.
• Adjusts the ringtone volume.
• Mutes the ringtone of an incoming call.
• While using the camera, press Volume up or down key to take a photo.
1�2

Getting started

1�2�1 Set up
Installing or removing the SIM card and microSD
Your phone already has a SIM card installed. If you need to change or remove
your SIM card, follow the steps below.
 With the phone face down, remove back cover by gently pulling up on the
indentation on the bottom left of the cover.
 Insert the SIM card and microSDTM card with gold contacts facing down.
 Ensure that SIM and microSDTM cards have been properly secured.
Note: microSD cards are sold separately. Only use Nano SIM cards with your
TM
phone.
card
TM
6
