TCL 40 NXTPAPER Manual

Basics

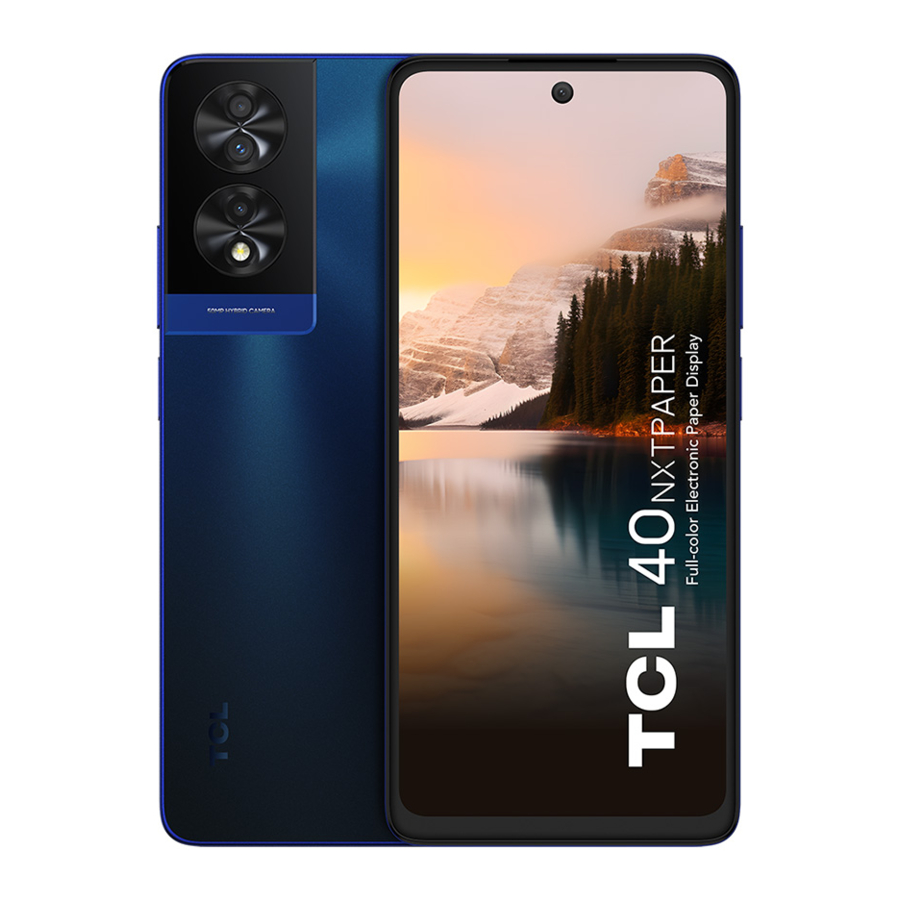

Device overview

Basics - Device overview - Part 1
Basics - Device overview - Part 2

Protective Case & T-pen

*Available if sold with the device. It depends on the device you purchased. (1)

Basics - Protective Case & T-pen

(1) The button on the top of this pen is a physical button that helps you connect it to, or extract it from, the protective case.


Back button

  • Tap to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc.


Home button

  • From any application or screen, touch to return to the Home screen.
  • Touch and hold to turn on Google Assistant. You can get help such as getting directions and restaurant information based on the content detected on the screen.


Recent apps

  • Touch to view applications you've recently accessed


Power key/Fingerprint key

  • Press: Lock the screen/Light up the screen.
  • Press and hold: Show the popup menu to select from Power off/Restart/ Aeroplane mode/Cast.
  • Press and hold the Power key and Volume down key to take a screenshot.
  • Press and hold the Power key for at least 10 seconds to force reboot.
  • Double-press the Power key to open the camera.


Volume Keys

  • In call mode, adjusts the earpiece or headset volume.
  • In Music/Video/Streaming mode, adjusts the media volume.
  • In general mode, adjusts the media volume.
  • Mutes the ringtone of an incoming call.
  • In camera preview mode, press the Volume up or down key to take a photo or press and hold to take burst shots.

Getting started

Setting up

Inserting or removing the SIM/microSD card

  1. Insert the provided SIM pin into the hole.
  2. Pull out the SIM tray.
  3. Place the SIM card or microSD card into the tray slot and carefully close the SIM tray.
    Getting started - Setting up

You must insert your SIM card to make phone calls. You do not need to power off your phone before inserting or removing the SIM card as this phone supports hot swap.

information Your phone only supports nano-SIM cards. Do not attempt to insert other SIM types; otherwise this may cause damage to your phone.

Charging the battery

Getting started - Charging the battery

You are advised to fully charge the battery ( ). Charging status is indicated by a percentage displayed on screen while the phone is powered off. The percentage increases as the phone is charged.

information To reduce power consumption and energy waste when the battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc.

Powering on your phone

Hold down the Power key until the phone powers on, unlock your phone (Swipe, PIN, Password, Pattern, fingerprint or Face recognition) if necessary and confirm. The Home screen is displayed.

If you do not know your PIN code or forget it, contact your network operator. Be sure to keep your PIN code secure. '

Powering off your phone

Press and hold the Power key until options appear, then select Power off.

Home screen

You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home button to switch to the Home screen.
Home screen

The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view.

Using the touchscreen

Touch

To access an application, touch it with your finger.

Touch and hold

To enter the available options for an item, touch and hold the item. For example. Select a contact in Contacts and touch and hold it. An options list will then appear.

Drag

Place your finger on the screen to drag an object to another location.

Slide/Swipe

Slide the screen to scroll up and down the applications, images, and web pages. You can slide the screen horizontally too.

Flick

Similar to swiping, but flicking makes it move quicker.

Pinch/Spread


Place two fingers on the screen surface and draw them apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better screen view.

Status bar

From the status bar, you can view both phone status and notification information.
Drag down the status bar to view notifications and drag again to enter the quick settings panel.
Touch and drag up to close it. When there are notifications, they can be accessed by touching them.

Notification panel
When there are notifications, touch and drag down the Status bar to open the Notification panel to read more detailed information.

Touch to clear all event–based notifications (other ongoing notifications will remain).

Quick settings panel
Touch and drag down from the top of the screen twice to open the Quick settings panel.
You can enable or disable functions or change modes by touching the icons.
Touch the Edit icon to customise your Quick settings panel.
Status bar - Quick settings panel

Lock/Unlock your screen

To protect your phone and privacy, you can lock the screen with a pattern, PIN, password, fingerprint or face.
To create a screen unlock pattern, touch Settings > Security & biometrics > Screen lock.

To lock the phone screen

  • If your phone remains inactive for a period of time, it will automatically lock the screen and enter sleep mode to save power. Go to Settings > Display > Sleep and select a screen timeout period.
  • You can also manually lock the screen by pressing the Power key once.

To unlock the phone screen
Press the Power key once to light up the screen, swipe up and unlock the screen with the method you have set.
Lock/Unlock your screen - To unlock the phone screen

Enter a password to unlock the screen
Once the screen is turned on, swipe up from any position on the screen to display the password input panel. Then enter your lock screen password.

Use pattern unlock
Draw the same pattern you have set to unlock the screen.

Use Face unlock

  • From the app list, touch Settings > Security & biometrics > Face unlock. Before using the face key, you need to set a pattern/PIN/password.
  • Hold your phone 20-50 cm from your face. Position your face in the square shown on the screen. For best results, we suggest that the face key is enrolled indoors and away from direct sunlight.
  • Enable Face unlock when your screen turns on, otherwise you will have to swipe up on the screen first of all.

Use Fingerprint unlock

  • Touch the fingerprint sensor (Settings > Security & biometrics > Fingerprint) with an enrolled finger to unlock the screen.

Personalising your Home screen

Add
You can touch and hold a folder, an application or a widget and drag the item to your preferred Home screen.

Reposition
Touch and hold an item and drag it to the desired position and then release. You can move items both on the Home screen and the Favourite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.

Remove
Touch and hold the item and drag it up to the top of the remove icon, and release after it turns white.

Create folders
To improve the organisation of shortcuts or applications on the Home screen and the Favourite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it and touch the folder's title bar to input the new name.

Wallpaper customisation
Touch and hold an empty area on the Home screen, then touch Wallpaper & style to customise wallpaper.

Widgets and recently used applications

Consult widgets
Touch and hold the empty area in the Home screen, then touch Widgets to display all widgets.

Touch and hold the widget and slide it to move to your preferred screen.

Consult recently used applications
To consult recently used applications, touch the Recent apps key. Touch a thumbnail in the window to open the application.

Touch one thumbnail and slide it up to close the application, slide it right/left to switch between the applications.

Touch CLEAR ALL at the bottom of the screen to close all the running applications.

Volume adjustment

Press the Volume key to adjust the volume.
Touch the icon to adjust Media, Ring, Alarm and Notification volume.

Text input

Using the Onscreen Keyboard

Keyboard settings
Touch Settings > System > Languages & input > Virtual keyboard, touch the keyboard you want to set up and a series of settings will become available.

Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the onscreen keyboard orientation. You can adjust it by changing the settings (Touch Settings > Display > Auto-rotate screen).

  • Gboard
    Adjust the Onscreen Keyboard orientation

Text editing

You can edit text which you have entered.

  • Touch and hold or double touch within the text you want to edit.
  • Drag the tabs to change the amount of text to edit.

You can also insert new texts if preferred

  • Touch where you want to type, or touch and hold a blank area. The cursor will blink and the tab will appear. Drag the tab to move the cursor.
  • If you have cut or copied any text, touch the tab to show the Paste and Select all option which allows you to complete pasting immediately.

Multimedia applications

Camera

Before using the camera, make sure that you remove the protective lens cover to avoid it affecting your picture quality.

Launch Camera

There are multiple ways to open the Camera app.

From the Home Screen
From the home screen, touch Camera .

From the Lock Screen
When the screen is locked, press the Power key once to light up the screen, then swipe left on the camera icon in the lower right corner to open the camera.

Using a shortcut key
Simply double-press the Power key to open the camera.
Launch Camera - Using a shortcut key

  1. Select filte
  2. Flash mode
    Touch to select flash mode.

    Keep a safe distance when using the flash. Do not point the flash toward people's or animals' eyes.
  1. AI scene detection
  2. Take HDR photos
  3. Zoom in/out
  4. Switch between front/back camera
  5. Take a photo
  6. Touch to access settings
  7. Picture size
  8. Pinch fingers together to zoom out, or spread fingers apart to zoom in
  9. View the photos or videos you have taken
  10. Google Lens

Google Lens

Google Lens is a free tool that can help you to:

  • Copy text
  • Search for similar products
  • Identity plants and animals
  • Discover books & media
  • Scan codes
    ...and more.

To take a photo

The screen acts as the viewfinder. First, position the object or landscape in the viewfinder, touch the screen to focus if necessary. Touch to capture. The photo will be automatically saved. You can also touch and hold to take burst shots.

To take a video

Touch VIDEO to change the camera mode to video. Touch to start video recording. Touch the left part of this icon to take a picture during video recording.

Touch the right part of this icon to pause video recording and touch to continue. Touch to stop recording. The video will be automatically saved.

Further operations when viewing a photo/video you have taken

  • Slide left or right to view the photos or videos you have taken.
  • Touch , you can select Bluetooth, Messages, Gmail, etc. to share the photo or video.
  • TouchBack button to return to Camera.

Modes and settings

Modes
Slide left or right to switch between modes.

  • MORE: By selecting , you can access more modes. These modes can be moved to the main screen by touching .
  • AUTO: Auto is the default mode for Camera.
  • VIDEO: Touch to access video mode.
  • PORTRAIT: Touch to create a depth of field effect. You can compose an image that highlights your subject while producing a gorgeously blurred background.
  • Nignt: Take a better night view photo in night mode.
  • PRO: Pro camera mode lets you fine-tune parameters and gives you full control over ISO, WB exposure time, aperture, shutter speed and so on
  • PANO: Touch to turn on the panorama function. Touch the shutter button to start taking a panoramic photo and move the phone steadily along in the direction indicated by the onscreen line. Once the slots are filled, the photo will be automatically saved. If the slots are not fully filled, touch the shutter button again to save the photo.
  • One Shot: One shot is a process of taking multiple types of photos with one press through AI. You can shoot 5, 10 or 15 seconds of video at a time, and finally output photos with various types of effects such as different filters.
  • SUPER MACRO: Access super macro mode. 4cm is the best macro shooting distance.
  • LIGHT TRACE: Capture creative movements of light using a long exposure photograph
  • MOVIE VIDEO: Capture a 21:9 frame video with film texture filter and easily share on social media.
  • STOP MOTION: Capture a number of photos of a certain scene, then convert them into a speeded-up video.

Settings

Touch to set more options:

  • Photo size: Touch to select photo size.
  • Video quality: Touch to select video quality.
  • Intelligent mode recommendation: Tap the switch to activate/deactivate the function of Recommending appropriate modes based on scenarios.
  • Image quality enhancement: Tap the switch to activate/deactivate the function. When the camera recognises that the light is dim, it'll automatically extend the shooting time to improve the clarity of the photo.
  • Quick snap: Set the device to take a photo by pressing the volume down key twice quickly when screen is off.
  • Volume button function: Touch to customise the Volume button to Shutter, Zoom or Volume when using camera.
  • Gesture to capture: Use the "palm" gesture to take a photo or video, touch to turn on it.
  • Storage: Touch to choose between phone and SD card storage when an SD card is inserted. The default is phone storage.
  • Save location information: Turn on to tag photos and videos with your location. This option is available when the GPS location service is enabled.
  • Shutter sound: Touch to turn on/off shutter sound when capturing.
  • Watermark: Touch to turn on/off Watermark.
  • Reset settings: Touch to reset the camera to its factory default settings.
  • Feedback: Give your feedback on your app.

Apps and features

Phone

Making a call

To make a call, swipe up from Home screen and touch .
Apps and features - Phone - Making a call - Step 1
Apps and features - Phone - Making a call - Step 2

Enter the desired number from the dial pad and touch to place the call or select a contact from Contacts or Call logs by touching tabs, then make the call.

The number you entered can be saved to Contacts by touching Create new contact or Add to a contact.

If you make a mistake, you can delete the incorrect digits by touching .

To hang up a call, touch .

International call
To dial an international call, touch and hold to enter "+", then enter the international country prefix followed by the full phone number and touch .

Emergency call
If your phone has network coverage, dial the emergency number and touch to make an emergency call. Depending on your network and country this could even work without a SIM card and without typing in the SIM PIN code.

Answering or rejecting a call
Phone - Answering or rejecting a call

When you receive a call:

  • Press ANSWER, or swipe up the icon to answer;
  • Press DECLINE, or swipe down the icon to reject;
  • Touch to reject the call by sending a preset message.

Calling your voicemail

Your voicemail is provided by your network to avoid missing calls. It works like an answering machine that you can consult at any time.

To access your voicemail, touch and hold .

If you receive a voicemail, appears on the Status bar. Open the Notification panel and touch New voicemail.

During a call

To adjust the volume during a call, press the Volume up/down key.

End the current call.

Touch to mute the current call. Touch this icon again to unmute the call.

Display the dial pad.

Touch to activate the speaker during the current call. Touch this icon again to deactivate the speaker.

Make another call.

Switch to video call.

Put a call on hold.

information To avoid accidental operation of the touchscreen during a call, the screen will be locked automatically when you put the cellphone close to your ear; and it will be unlocked when the cellphone is taken away from your ear.

Managing multiple calls

With this phone you can handle multiple calls at the same time.

Swap calls
When you accept two calls, touch the icon to switch between two lines. The current call will be put on hold and you are able to join the other call.

Conference calls(1)
You can set up a conference call as follows.

  • Place a call to the first participant of the conference call.
  • Touch to add another call.
  • Enter the phone number of the person you want to add to the conference and touch . You can also add participants from Call logs or Contacts.
  • Touch to start the conference.
  • Touch to end the conference call and disconnect all callers.

(1) Depending on your network operator.

Call settings

Touch from the Phone screen, then touch Settings to set phone and contact settings.

Call log

You can access your call logs by touching from the Phone screen to view missed calls, outgoing calls and incoming calls.

Touch one call to view information or further operations. You can launch a new call, send a message to the contact or number, or view detailed information of the call.

To delete the call history of a selected contact or number, touch and hold the contact and choose Delete.

Contacts

Contacts enables quick and easy access to the contact you want to reach.

You can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone.

Consult your Contacts

To see your contacts, touch from the App drawer.
Contacts - Consult your Contacts

information Deleted contacts will also be removed from other applications on the phone or web the next time you synchronize your phone.

Adding a contact

Touch in the contact list to create a new contact.

You are required to enter the contact's name and other contact information. By scrolling up and down the screen, you can move from one field to another.
Contacts - Adding a contact

Add to/remove from Favourites (1)
To add a contact to favourites, you can touch a contact to view details then touch to add the contact to favourites.

To remove a contact from favourites, touch on the contact details screen.

Editing your contacts

To edit contact information, touch in the contact details screen.

When finished, touch Save.

(1) Phone and Gmail contacts can be added to favourites.

Using the Quick contact panel

Touch a contact to open the Quick contact panel.

  • Touch or the number to make a call.
  • Touch to send a message.
  • Touch to make a video call.

The icons available on the Quick contact panel depend on the information you have for the contact and the applications and accounts on your phone.

Sharing contacts

You can share a single contact or contacts with others by sending the contact's vCard to them via Bluetooth, Gmail, etc.

  • From the Contacts screen, touch and hold a contact and touch.
  • Select the application to perform this action.

Accounts

Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your phone.

To add an account, touch from the contacts list and touch Add another account, or from the home screen, touch Settings > Accounts > Add account.

You are required to select the kind of account you are adding, like Google, etc.

As with any other account setup, you need to enter detailed information, like username, password, etc.

You can remove an account and all associated information from the phone. Touch the account you want to delete, touch Remove account, then confirm.

Auto-sync
On the Accounts screen, turn on Automatically sync data . When activated, all changes to information on the phone or online will be automatically synchronised with each other.

Messages

Writing a new message

You can create, edit, send and receive SMS and MMS with this phone.

To access Messages, touchfrom the App drawer.

On the message list screen, touch to write text/multimedia messages.

Sending a text message

  • To add recipients, enter a mobile phone number or select a contact in theTo bar.
  • Touch the Text message bar to enter the text of the message.
  • When finished, touch to send the text message.

information Specific letters (accented) will also increase the size of the SMS. This may cause multiple SMS to be sent to your recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos, animations, slides and sounds to other compatible mobiles and e-mail addresses.

An SMS will be converted to MMS automatically when media files (image, video, audio, slides, etc.) are attached or subject or email addresses are added.

  • To send a multimedia message, enter the recipient's phone number in theTo bar.
  • Write the text of the message in the Text message bar.
  • Touch to access to your location, send a voice message or attach files.
  • Touch to take a photo/video or attach a photo/video you have taken.
  • When finished, touch to send the multimedia message.

Manage messages

When receiving a message, will appear on the Status bar as a notification. Drag down the Status bar to open the Notification panel. Touch the new message to open and read it. You can also access the Messages application and touch the message to open it.

Messages are displayed as a conversation.

Touch a message to enter the message composing screen:

  1. Tap for more options
  2. Touch to add a contact
  3. Tap to call the number
  4. Tap to save the number to Contacts or view the contact details if the number has been saved

To adjust message settings, touch the round icon in the upper right and then select Messages settings.

Calendar

Use Calendar to keep track of important meetings, appointments, etc.

To view the calendar and create events, open the Google apps folder from the Home screen, then touch Calendar.

Multimode view

You can display the Calendar by Schedule, Day, 3 days, Week, or Month, touch to select.

To create new events

You can add new events from any Calendar view.

  • Touch .
  • Fill in all required information for this new event. If it is a whole-day event, you can turn on All-day .
  • Invite guests to the event. Enter the email addresses of the guests you want to invite with commas to separate. The guests will receive an invitation from Calendar and Email.
  • When finished, touch Save at the top of the screen.

To quickly create an event from the Week view screens, touch an empty spot to select a target area which will then turn into , then touch the icon to create the new event.

To delete or edit an event

To delete or edit an event, touch the event to enter its details screen. Touch to edit the event, or touch and then Delete to delete.

Event reminder

If a reminder is set for an event, the upcoming event icon will appear on the Status bar as a notification when the reminder time arrives.

Touch and drag down the Status bar to open the notification panel, touch an event name to view the Calendar notification list. Swipe up the Status bar to exit.

Clock

Your mobile phone has a built-in clock.

To view the current time, swipe up the Home screen, then touch Clock.
Apps and features - Clock

Alarm

From the Clock screen, touch Alarm to enter.

  • Turn on to enable the alarm.
  • Touch to add a new alarm, touch Ok to save.
  • Touch a currently existing alarm to enter the alarm editing screen.
  • Touch Delete to delete the selected alarm.

TCL apps

Support centre

Support Centre helps you to learn more about Hot FAQs, operation instructions, troubleshooting, etc. Use it to send us your feedback.

Other applications (1)

The previous applications in this section are preinstalled on your phone. To download and install more 3rd party applications, use the Google Play Store application.

Google applications (1)

Google apps are preinstalled on your phone to improve work efficiency and help you enjoy life.

This manual briefly introduces the apps. For detailed features and user guides, refer to the related websites or the introduction provided in the apps.

You are recommended to register with a Google account to enjoy all the functions.

(1) Application availability depends on country and operator.

Gmail

As Google's web-based email service, Gmail is configured when you first set up your phone. With this application you can send and receive emails, manage emails by labels, archive emails, etc. Emails can be automatically synchronized with your Gmail account.

Maps

Google Maps offers satellite imagery, street maps, 360° panoramic views of streets, real-time traffic conditions, and route planning for travelling by foot, car, or public transportation. By using this application, you can find your own location, search for a place, and get suggested route planning for your trips.

Photos

Google Photos stores and backs up your photos and videos. It also automatically analyses photos and organizes them into groups, so that you can quickly find the photos you need.

Meet

Stay connected and collaborate effortlessly with the Meet menu on your smartphone. Join or schedule video meetings and group calls with ease.

YouTube

YouTube is an online video-sharing application where users can upload, view, and share videos. Available content includes video clips, TV clips, music videos, and other content such as video blogging, short original videos, and educational videos. It supports a streaming function that allows you to start watching videos almost as soon as they begin downloading from the internet.

Play Store

Serves as the official app store for the Android operating system, allowing users to browse and download applications and games. Applications are either free of charge or at a cost.

In Play Store, search for the app you need, download it and then follow the installation guide to install the app. You can also uninstall, update an app, and manage your downloads.

Google

A web browser with which you can surf the internet.
Your bookmarks, browsing history, and settings across all devices on which the browser is installed can be synchronized with your Google account.

Assistant

Long-pressing on the home button to launch the Assistant.

Files

Files displays all data stored on the phone, including both external SD card and internal storage, such as applications, media files Google Play Store, YouTube or other locations; Videos, pictures or audios you have captured; other data transferred via Bluetooth, USB cable, etc.

Find Device

Find Device helps you to find your lost device, wipe lost device data remotely, and perform a host of other security functions.

Keep Notes

Keep Notes allows you to create, manage, and access your notes effortlessly.

Capture your ideas, to-do lists, and important reminders with ease.

Settings

To go to Settings, touch from the Home screen.

You can also swipe down from the notification panel and touch .

Wi-Fi

You can connect to the internet when your phone is within range of a wireless network. Wi-Fi can be used on your phone even without a SIM card inserted.

To turn Wi-Fi on and connect to a wireless network

  • Touch Settings > Wi-Fi.
  • Turn on .
  • Once Wi-Fi is turned on, detected Wi-Fi networks are listed.
  • Touch a Wi-Fi network to connect to it. If the network you selected is secured, you are required to enter a password or other credentials (you should contact the network operator for details). When finished, touch Connect.

To add a Wi-Fi network

When Wi-Fi is on, you can add new Wi-Fi networks according to your preference.

  • Touch Settings > Wi-Fi > Add network.
  • Enter the name of the network and any required network information.
  • Touch CONNECT.

To forget a Wi-Fi network

The following steps prevent automatic connection to networks which you no longer wish to use.

  • Turn on Wi-Fi, if it's not already on.
  • On the Wi-Fi screen, touch the name of the saved network.
  • Touch FORGET in the dialog that opens.

BLuetooth

Bluetooth is a short-range wireless communication technology that you can use to exchange data, or connect to other Bluetooth devices for various uses.

To turn on Bluetooth

  • Touch Settings > Bluetooth.
  • Turn on .

Your device name will appear on screen.

To rename your device

  • Touch Settings > Bluetooth.
  • Touch Device name.
  • Enter a name, and touch RENAME to confirm.

To pair/connect your phone with a Bluetooth device

To exchange data with another device, you need to turn Bluetooth on and pair your phone with the Bluetooth device with which you want to exchange data.

  • Touch Settings > Bluetooth > + Pair new device.
  • Touch a Bluetooth device you want to pair your phone with in the list.
  • In the dialog that pops up, touch PAIR to confirm.
  • If the pairing is successful, your phone will be connected to the device.

To unpair from a Bluetooth device

  • Touch beside the device you want to unpair from.
  • Touch FORGET to confirm.

SIM card & mobile network

Go to To Settings > SIM card & mobile network > SIM 1 > Roaming Mode to enable data roaming, set your preferred network type, check the network connection you are using or create a new access point, etc.

SIM cards(1)

Touch to choose SIM 1 or SIM 2 for connecting to the network, making calls and sending SMS messages.

(1) Dual SIM only.

Connections

Aeroplane mode

Turn on Airplane mode to simultaneously disable all wireless connections including Wi-Fi, Bluetooth and more.

Hotspot & tethering

To share your phone's data connection via Wi-Fi, Bluetooth and USB, or as a mobile hotspot, go to Settings > Connections > Hotspot & tethering to activate these functions.

To rename or secure your mobile hotspot
When your mobile hotspot is activated, you can rename your phone's Wi-Fi network (SSID) and secure its Wi-Fi network.

  • Touch Settings > Connections > Hotspot & tethering > Mobile hotspot.
  • Touch Hotspot name to rename the network SSID or set your network security.
  • Touch OK.

information The functions above may incur additional network charges from your network operator. Extra fees may also be charged in roaming areas.

Data usage

The first time you turn on your phone with your SIM card inserted, it will automatically configure your network service: 2G, 3G, or 4G.

If the network is not connected, you can turn on mobile data in Settings > Connections > Data usage.

Data saver
By enabling Data saver, you can reduce data usage by preventing some apps from sending or receiving data in the background.

Mobile data
If you do not need to transmit data on mobile networks, turn off Mobile data to avoid incurring significant charges for data use on local operator mobile networks, particularly if you do not have a mobile data agreement.

information Data usage is measured by your phone, and your operator may count differently.

VPN

Virtual private networks (VPNs) allow you to connect to the resources inside a secured local network from outside that network. VPNs are commonly deployed by corporations, schools, and other institutions so that their users can access local network resources when not inside that network, or when connected to a wireless network.

To add a VPN

  • Touch Settings > Connections > VPN and then touch .
  • On the screen that opens, follow your network administrator's instructions to configure each component of the VPN settings.
  • Touch SAVE.

The VPN is added to the list on the VPN settings screen.

information Before adding a VPN, you should set a screen lock for your phone.

To connect to/disconnect from VPN

To connect to a VPN:

  • Touch Settings > Connections > VPN.
  • The VPNs you have added are listed. Touch the VPN you want to connect with.
  • In the dialog that opens, enter any requested credentials and touch CONNECT.

To disconnect from a VPN:

  • Touch the VPN you want to disconnect from. In the dialog that opens, touch DISCONNECT.

To edit/delete a VPN

To edit a VPN:

  • Touch Settings > Connections > VPN.
  • The VPNs you have added are listed. Touch the icon next to the VPN you want to edit.
  • After editing, touch SAVE.

To delete a VPN:

  • Touch the icon next to the selected VPN, then touch FORGET to delete it.

Private DNS

Touch to select private DNS mode.

NFC

Turn on to enable NFC.

The function allows data exchange when the phone touches another device.

Cast

You can use Cast to display your device's screen on your TV, and display content like TV shows, movies, photos, games, and websites from supported apps.

USB connection

With a USB cable, you can charge your device, transfer files or photos (MTP/PTP) between your phone and a computer.

To connect your phone to the computer

  • Use the USB cable that came with your phone to connect the phone to a USB port on your computer. You will receive a notification that the USB is connected.
  • Open the Notification panel and choose the way which you want to transfer files or touch Settings > Connections > USB connection to select. By default, Charge this device is selected.

information Before using MTP, make sure that the driver (Windows Media Player 11 or higher version) has been installed.

Printing

Touch Printing to activate Print services. You can select your Default print service.

Chromebook

You can connect your phone to a Chromebook to instantly access your phone's data on the computer.

Nearby Share

Share files with nearby devices.

Android Auto

Android Auto makes it possible to control many of the functions available in your phone via the car's centre display.

Home screen & lock screen

With this menu, set your home apps, choose your favourite wallpapers and theme styles, etc.

NXTPAPER mode

NXTPAPER Mode offers exceptional image quality with reduced glare and reflections. Choose your preferred NXTPAPER mode.

Display

Brightness level
Adjust screen brightness manually.

Adaptive brightness
Adjust screen brightness automatically.

Darker display mode
Turn on to lower screen brightless in dark light environment.

Dark theme
Empty screen space will become black in this mode, making it easier to look at your screen or read in dim light.

Eye comfort mode
Eye comfort mode can effectively reduce blue light radiation and adjust the colour temperature to relieve eye fatigue. You can also create a custom schedule to turn it on.

Sleep
Set screen timeout.

Colour mode & temperature
Change the display gamut to vivid, natural or advanced based on content.

Refresh rate
Select the refresh rate of the screen. When a high refresh rate is set, the screen will scroll more smoothly. When you select a standard refresh rate, you can use the battery longer.

Font size
Adjust font size manually.

Auto-rotate screen
Select whether the screen rotates automatically or not.

Status bar & notch
Set the style of the status bar, select whether notification icons are folded and how the battery percentage is displayed.
Turn on the notch for full screen apps to get the best experience on the phone.

NXTVISION

Image enhancement
Enhance image contrast automatically, sharpness and dark details.

Video enhancement
Enhance the color, contrast and depth of detail of video to bring a cinema-grade visual experience.

Game enhancement
Improve the shadow detail and enhance overall gaming graphics.

Reading mode
Optimize the screen display to make the reading experience as comfortable as physical books.

Eye comfort mode
Filter out blue light and adjust the color temperature of your display to reduce eye strain.

Darker display mode
In dark light environment, turn on darker display mode to achieve lower screen brightness.

Sunlight display mode
Increase readability under sunlight

Colour mode & temperature
With this menu, you can change display gamut based on display content like Vivid, Nature, etc.

Sound & vibration

Use the Sound settings to configure many aspects of call ringtones, music, and other audio settings.

3D Boom Sound
Touch to activate 3D surround sound, which creates an immersive sound experience.

Phone ringtone & vibrate|
Set your incoming call ringtone or opt for the phone to Vibrate when ringing.

Notification ringtone
Set the default sound for notifications.

Alarm ringtone
Set your alarm ringtone.

Live Caption
To detect speech on your device and automatically generate captions, turn this feature on by following the instructions on your device.

Do Not Disturb
If you do not want to be disturbed by your phone or information ringtones during work or rest, you can set the Do Not Disturb mode.
Swipe down the Status bar twice to access the Quick Settings panel and tap to turn on Do Not Disturb.

Headset mode
Ringtone will only be heard from headset if it is plugged in.

More sound settings
Set dial pad tones, screen locking sounds, touch sounds, etc.

Notifications

In the Notifications menu, you can configure whether to block the notifications from this app, hide sensitive content, etc.

Button & gestures

System navigation
Select your favourite navigation button layout.

Gestures
To set some gestures for convenient use, such as 3-finger screenshot, 3-finger regional screenshot.

Power key

Quick launch camera
To quickly open camera, press the power button twice. It works from any screen.

Advanced features

App Cloner
App Cloner will duplicate one app on your Home screen and you can enjoy both of them respectively at the same time.

Screen Recorder
Set the video resolution, sound, etc. To use Screen Recorder, Swipe down the Status bar twice to access the Quick Settings panel and tap , then drag up to the quick settings panel, exit from edit screen and touch the new added title.

Smart Manager

Smart Manager ensures your phone is operating in top form by automatically scanning and optimizing data usage to preserve battery levels, manage storage and protect against security threats.

Restricting auto-start apps can make the system run faster and extend battery life.

You can also do some options manually for further optimization.

Security & biometrics

Google Play Protect
Play Protect regularly checks your apps and device for harmful behaviour. You'll be notified of any security risks found.

Security update
Touch to review your system version.

Google Play system update
Touch to update Google Play system.

Find My Device
Find My Device helps you locate this device remotely. if you lose this device, it also helps you keep your data safe.

Screen lock
Select one method such as Swipe, Pattern, PIN or Password to unlock the screen.

Fingerprint
Use your Fingerprint to unlock the screen.
Access Settings > Security & biometrics > Fingerprint to activate these functions.

Face unlock
Face unlock allows you to unlock your device with your facial data. Set it according to the on-screen steps.
Ensure that you are facing the phone screen when using face recognition.
warning NOTE: You need to set a pattern, PIN, or password before using Face unlock.

Smart Lock
Smart Lock keeps your device unlocked when it's safe with you and locked when it detects that it's been put down.

Others
You can also set Device admin apps, SIM card lock, Encryption & credentials, Trust agents, etc.

Location

Tap to set whether to allow an app to access your device's location. You can set to allow continual access, or only while the app is in use.

Privacy

To protect your privacy, you can set an app to be allowed or forbidden access to your location, SMS, phone, etc. Also whether or not to show passwords, choose the activities and info that you want Google to save.

Safety & emergency

To protect yourself in emergency, you can set emergency information such as medical information, emergency contacts in advance. You can also use SOS or turn on location and wireless emergency alerts.

Apps

Touch to view details about the applications installed on your phone, to manage their data usage or force them to stop.

Storage

Enter Settings > Storage to check the usage of storage space and free up more when necessary.

Accounts

Touch to add, remove, and manage your email and other supported accounts. You can also use these settings to control the options for how all applications send, receive and synchronize data; i.e. if this is done automatically, according to a schedule for each app, or not at all.

Touch Add account to add an account for the selected app.

Digital Wellbeing & parental controls

In this menu you can find how much time you have spent on the phone and even on each app. You can customize the time limit for using the phone to ensure a healthy and balanced life.

In addition, parents are able to restrict their children's usage time to manage their browsing habits.

Google

Touch to configure your Google account and service settings.

Accessibility

Use the Accessibility settings to configure any accessibility plug-ins you have installed on your phone.

System

About phone
View basic information for your phone such as model name, CPU, camera, resolution, etc.
You can also check legal information, build number, status and other specs.

System Update
If you want to update the system, touch CHECK FOR UPDATES (refer to "Making the most of your phone > FOTA upgrade").

Update Apps
Check app update information.

Languages & input
Touch to configure language settings, the on-screen keyboard, voice input settings, pointer speed, etc.

Date & time
Use Date & time settings to customize your preferences for how date and time are displayed.

Backup
Turn on to back up your phone's settings and other application data to Google servers. If you replace your phone, the settings and data you've backed up will be restored onto the new phone when you sign in with your Google account.

Reset
Touch to reset all network settings and app preferences, you won't lose your data with these settings.
If Factory data reset is selected, all data in your phone's internal storage will be erased, please back up your data before reset.

Regulatory & safety
Touch to view product information such as Product model, Manufacturer name/ address, IMEI, CU reference, Bluetooth Declaration ID, etc.

User Experience Improvement Programme
Touch to join the User Experience Improvement Programme so we can continue to improve our product design and overall user experience.

Making the most of your phone

FOTA upgrade

Use the FOTA (Firmware Over The Air) upgrade to update your phone's software.

To access updates, from the app list, touch Settings > System > System Update. Turn on data connection or Wi-Fi before searching for updates.

With Wi-Fi turned on, the system is able to discover if a new firmware version is available and if so, begin to download it automatically. Once finished, a pop up dialog will give you the option of updating your phone now or later.

If Settings > System > System Update > > Update settings > Automatically update is turned off, a pop up dialog will ask if you want to download a new firmware version which the phone has discovered, or if you want to ignore it.

If you only have a mobile network connection, you will only receive a notification which will appear in the Status bar.

During FOTA downloading or updating, to avoid errors in locating the correct update packages, do not change your default storage location.

Troubleshooting

Before contacting the service centre, here are some instructions to help you troubleshoot your device:

  • For optimal operation, fully charge the battery.
  • To improve the phone's performance, remove unnecessary files or apps on your phone.
  • Update your phone's software via Settings > System > System Update.
  • Reset your phone via Settings > System > Reset > Erase all data (factory reset). Another method is to hold down the Power key and the Volume up key at the same time when your phone is powered off. Release the power key when the device vibrates, then select Wipe data / factory reset > Factory data reset to reset. All your phone data will be lost permanently. It is strongly advised to fully back up your phone data before resetting.

and carry out the following checks:

My phone can't be switched on or is frozen

  • When the phone can't be switched on, charge for at least 20 minutes to ensure the minimum battery power needed. Then switch it on again.
  • When the phone falls into a loop during power on animation and the user interface can't be accessed, press and hold the Power key to reset. This eliminates any abnormal OS booting issues caused by third party applications.
  • If neither method is effective, reset the phone by pressing the Power key and the Volume up key at the same time. Release the power key when the device vibrates, then select Wipe data / factory reset > Factory data reset to reset.

My phone has not responded for several minutes

  • If your phone doesn't respond, turn off your phone by pressing and holding thePower key until it turns off and then restart it again.
  • If it still doesn't work, reset the phone.

My phone turns off by itself

  • Check that your screen is locked when you are not using your phone, and make sure that the Power key is not accidentally pressed while the screen is unlocked.
  • Check the battery charge level.
  • If it still doesn't work, reset the phone or update software.
  • If the issue occurs while using a certain third-party app, make sure the app is compatible with your device and Android version. Try uninstalling the third-party app.

My phone can't charge properly

  • Make sure that you are using the TCL charger that comes with the phone.
  • Make sure that your battery is not completely discharged; if the battery power has been empty for a long time, it may take around 20 minutes to display the battery charging indicator on the screen.
  • Make sure that charging is carried out under normal conditions 0°C (32°F) to 45°C (113°F).
  • When abroad, check that the voltage input is compatible.

My phone can't connect to a network or "No service" is displayed

  • Try connecting to the network by moving to another physical location.
  • Verify the network coverage with your operator.
  • Check with your operator that your SIM card is valid.
  • Try connecting at a later time if the network is overloaded.
  • Try to turn on "Airplane mode" for a few seconds, then turn airplane mode off.

My phone can't connect to the internet

  • Make sure that the internet access service of your SIM card is available.
  • Check your phone's internet connection settings.
  • Make sure that you are in a place with network coverage.
  • Try connecting at a later time or another location.
  • Try to turn on "Airplane mode" for a few seconds, then turn airplane mode off.

Invalid SIM card

  • Make sure that the SIM card has been correctly inserted.
  • Make sure that the chip on your SIM card is not damaged.
  • Make sure that the service of your SIM card is available.

My phone can't make outgoing calls

  • Make sure that you have dialled a valid number and have touched.
  • For international calls, check the country and area codes.
  • Make sure that your phone is connected to a network, and the network is not overloaded or unavailable.
  • Check your subscription status with your operator (credit, SIM card valid, etc.).
  • Make sure that you have not barred outgoing calls.
  • Make sure that your phone is not in airplane mode.

My phone can't receive incoming calls

  • Make sure that your phone is switched on and connected to a network (check for overloaded or unavailable network).
  • Check your subscription status with your operator (credit, SIM card valid, etc.).
  • Make sure that you have not forwarded incoming calls.
  • Make sure that you have not barred certain calls.
  • Make sure that your phone is not in airplane mode.

The caller's name/number doesn't appear when a call is received

  • Check that you have subscribed to this service with your operator.
  • Your caller may have concealed his name or number.

I can't find my contacts

  • Make sure that your SIM card is not broken.
  • Make sure that your SIM card is inserted properly.

The sound quality of the calls is poor

  • Adjust the volume during a call by pressing the Volume key.
  • Check the network strength. Move to a location with stronger signal strength.
  • Make sure that the receiver, connector and speaker on your phone are clean.

I can't use the features described in the manual

  • Check with your operator to make sure that your subscription includes this service.
  • Make sure that this feature doesn't require a TCL accessory.

When I select a number from my contacts, the number can't be dialled

  • Make sure that you have correctly recorded the number in your contacts.
  • Make sure that you have selected the country code when calling an international number.

I can't add a contact

  • Make sure that your SIM card contacts are not full; delete some contacts or save the contacts to the phone.

My callers can't leave messages on my voicemail

  • Contact your network operator to check service availability.

I can't access my voicemail

  • Make sure that your operator's voicemail number is correctly entered in "Voicemail number".
  • Try later if the network is busy.

I can't send and receive MMS

  • Check your phone storage as it might be full.
  • Contact your network operator to check service availability and MMS parameters.
  • Verify the server centre number or your MMS profile with your operator.
  • The server centre may be swamped. Try again later.

SIM card PIN locked

  • Contact your network operator to obtain the PUK (Personal Unblocking Key) code.

I can't connect my phone to my computer

  • Check to make sure the USB port is not broken. If it's not working, try another USB port on your computer.
  • Make sure USB drivers are properly installed.
  • If you are using a Windows computer, make sure it supports MTP mode. If you are using a Mac, make sure to install Android File Transfer from www.android.com/filetransfer/.

I can't download new files

  • Make sure that there is sufficient phone storage space for your download.
  • Select the microSD card as the location to store downloaded files.
  • Check your subscription status with your operator.

The phone can't be detected by others via Bluetooth

  • Make sure that Bluetooth is turned on and your phone is visible to other users.
  • Make sure that the two phones are within Bluetooth's detection range.

The battery drains too fast

  • Make sure that you follow the complete charge time (minimum 120 minutes).
  • After a partial charge, the battery level indicator may not be exact. Wait for at least 20 minutes after removing the charger to obtain an exact indication.
  • Adjust the brightness of screen as appropriate.
  • Extend the email auto-check interval for as long as possible.
  • Update news and weather information on manual demand, or increase their auto-check interval.
  • Exit background-running applications if they are not being used for extended periods of time.
  • Turn off Bluetooth, Wi-Fi, or GPS when not in use.

The phone becomes warm following prolonged calls, game playing, internet surfing or running other complex applications

  • This heating is a normal consequence of the CPU handling excessive data. Ending the above actions will make your phone return to normal temperature.

After a factory data reset is performed, I can't use my phone without entering Google account credentials

  • After a reset is performed, you must enter the original Google account credentials that were used on this phone.
  • If you don't remember your Google account credentials, complete Google account recovery procedures.
  • If you still cannot access your phone, apply to the authorized repair centre, but remember that it will not be regarded as a warranty case.

I forgot some passwords/codes/keys on my phone

  • Perform a factory data reset.
  • If you still cannot access your phone, apply to the authorized repair centre, but remember that it will not be regarded as a warranty case.

No action after touching the touch screen

  • Check whether there is any damage to the screen. If yes, please back up your data and take your device and proof of purchase to our repair centre to get more professional technical assistance.
  • If the issue occurs while using a third-party app, make sure the app is compatible with your device and Android version. Try uninstalling the third-party app.
  • Check if the issue occurs during charging. If yes, we recommend trying the official charger and data cable.
    (warning Note: The voltage instability of non-standard chargers and data cables may cause the touchscreen to become unresponsive).
  • Make sure the temperature where the device is being used is neither too hot nor too cold. The standard working temperature of the capacitive touchscreen is -10°C~60°C. Excessively high or low temperatures will cause the touchscreen to become unresponsive.
  • If there is a screen protector on the screen, see if the touchscreen works after removing it.
  • Make sure there are no stains such as water or sweat on the touchscreen. If there are, wipe the screen and try again.
  • If it still doesn't work, reset the phone or update software.

Cannot turn on camera flash mode

  1. Charge your device until the battery level is at least 30%. Camera flash cannot be used when the battery is running low.
  2. Clear the cache of the 'Camera' app.
    To clear an app's cache: go to the main menu->select "Settings"->"Apps"->select "View all apps"->select "Camera"->select "Storage"->select "CLEAR DATA" and "CLEAR CACHE".
  3. Drag down the quick settings bar in any interface, touch the flashlight icon to check whether the flash on your device works.
  4. Check whether the camera is set to the special shooting mode. In order to achieve a certain effect, the program will prohibit the use of the flash. Please revert to normal camera shooting mode.

How to back up my device data

  • Go to Settings > System > Backup (refer to "System > Backup" )

Specifications

Platform:

  • MTK G88(MT6769)

OS:

  • Android 13 (OS upgrade to Android 14)

Memory:

  • 256GB ROM + 8GB RAM

Dimensions (LxWxT):

  • 168.16x75.53x7.89 mm

Weight:

  • 195g

Display:

  • 6.78" NXTPAPER touch screen with 1080*2460 pixel screen resolution

Network:

  • 2G: 850/900/1800/1900
  • 3G: B1/2/4/5/8
  • 4G: B1/2/3/4/5/7/8/12/13/17/20/28/38/40/41/66

GPS:

  • BDS/GPS/Glonass/Galileo, with A-GPS

Connectivity:

  • Bluetooth 5.1
  • Wi-Fi 802.11a/ b/g/n/ac, 2.4GHz & 5Ghz
  • 5 mm audio jac.
  • Type-C 2.0

Camera:

  • Rear Camera: 50M+5M+2M
  • Front camera: 32MP FF

Audio & Video supported formats:

  • AAC, HE-AAC v1, HE-AAC v2, AMR, AWB, MIDI, MP3, OGG VORBIS,
  • WAV (Alaw/Ulaw), WAV(Raw), FLAC, OPUS
  • MPEG2, H.263, MPEG4, H.264, H.265, VP8, VP9

Battery (1):

  • Capacity: 5010 mAh

Expansion Slot:

  • MicroSD™ memory card
    (Availability of MicroSD card up to 2TB)

Sensors:

  • G-sensor
  • Proximity Sensor
  • Light Sensor
  • E-Compass

warning Note: Specifications are subject to change without prior notice.

(1) The original battery has undergone rigorous safety inspections to meet qualification standards, the use of non-original batteries may be dangerous.

Accessories

Standard accessories

  • Charger(1)
  • Type C 2.0 Cable
  • LCD sticker
  • Quick guide
  • Protective Case & T-pen(1)
    --

    (1) If sold with the device, depending on the device you purchased.

information

  • Accessories depend on countries.
  • Only use the TCL batteries, chargers, and accessories included along with your device.

Help

Refer to the following resources to get more FAQ, software, and service information:

Consulting FAQ

Go to www.tcl.com/global/en/service-support-mobile/faq.html

Finding your serial number or IMEI

You can find your serial number or International Mobile Equipment Identity (IMEI) on the packaging materials. Alternatively, choose Settings > System > About phone > Status > IMEI information on the phone itself.

Obtaining warranty service

First follow the advice in this guide or go to https://www.tcl.com/global/en/mobilesupport.html. Then check hotlines and repair centre information.

For more information about limited warranty, please go to https://www.tcl.com/global/en/warranty

For information on how to use the phone, please go to tcl.com
The website will also provide you with answers to frequently asked questions.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download TCL 40 NXTPAPER Manual

Advertisement

Need help?

Need help?

Do you have a question about the 40 NXTPAPER and is the answer not in the manual?

Questions and answers

Table of Contents
