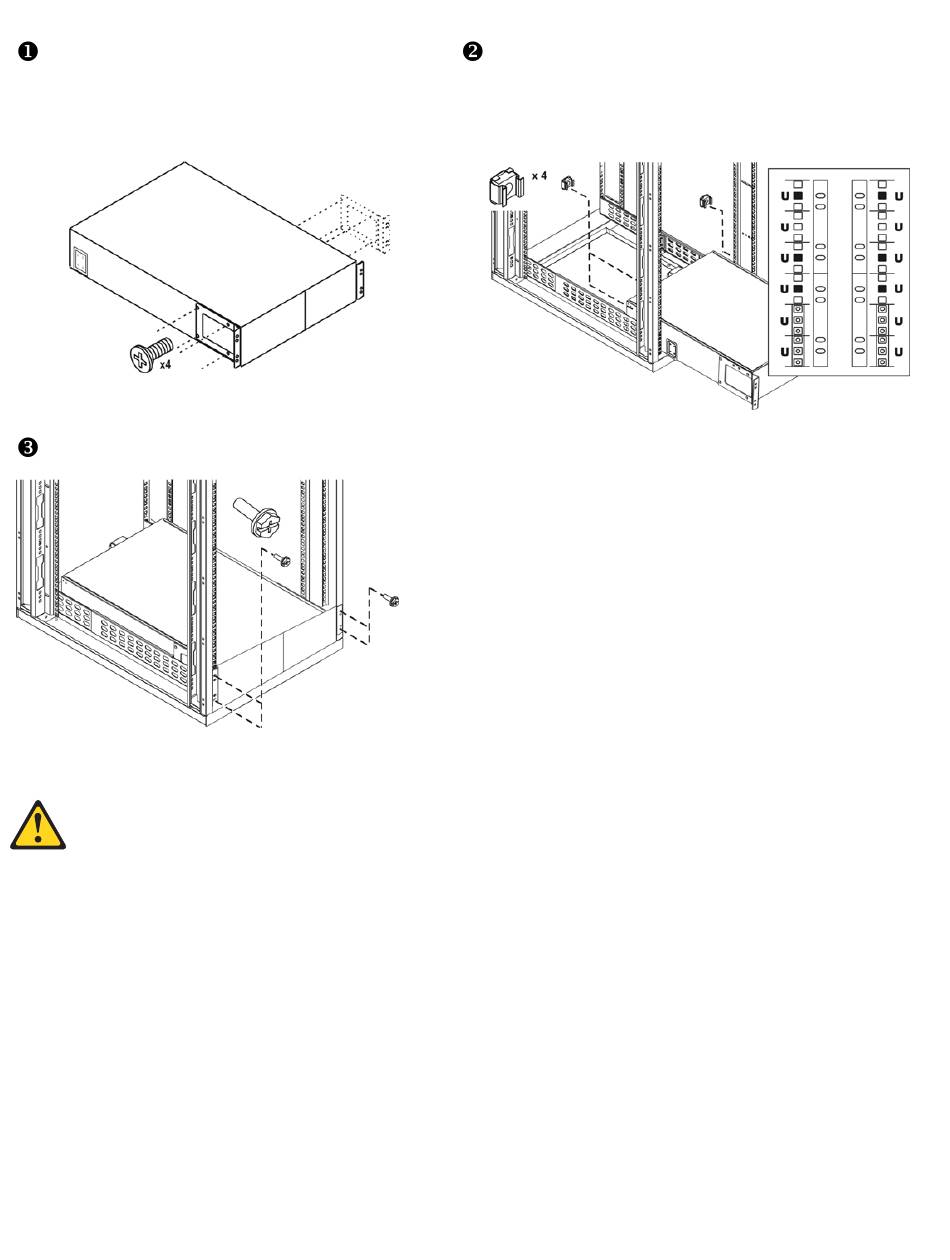

Installing the Battery Pack in a Rack
Secure the rack-mount brackets to the battery pack.
Secure the uninterruptible power supply in the rack using four Phillips hex screws.
Connecting the Extend Run Battery Packs to the Uninterruptible Power Supply
CAUTION
Energy hazard present. Shorting might result in system outage and possible physical injury.
Remove all metallic jewelry before servicing. (C001)
To configure the uninterruptible power supply to recognize the battery packs, refer to Settting the Uninterruptible Power Supply to
Recognize the Battery Packs through Terminal Mode in this manual.
Refer to the instruction sheet included in the rail kit for rail
installation details. Refer to the diagram below for cage nut (clip nut)
installation. The solid squares indicate the cage nut (clip nut)
locations. Install the uninterruptible power supply at the bottom of
the rack. Note: The battery packs must be mounted below the
uninterruptible power supply.
7
