Tower Configuration 7500XHV/10000XHV models only
Before converting to tower configuration, remove the battery modules. Refer to Removing the Battery Modules in this manual.
Note: The external battery packs must be installed to the right of the uninterruptible power supply when facing the front of the units.

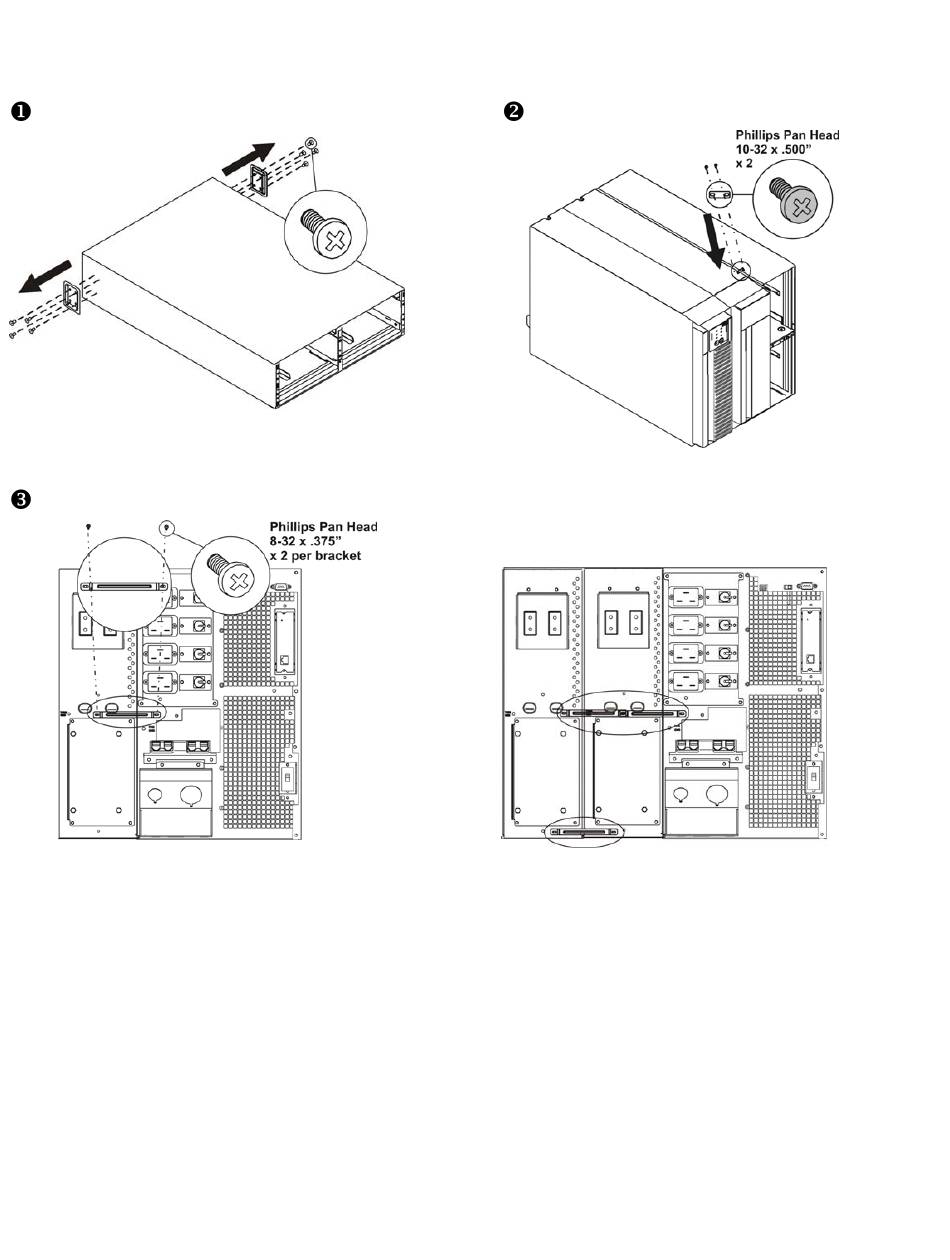

Remove the rail guides.
Install the rear panel tie brackets. Note: Tie brackets on the center battery pack share a common screw.
Install the top tie bracket.
11
