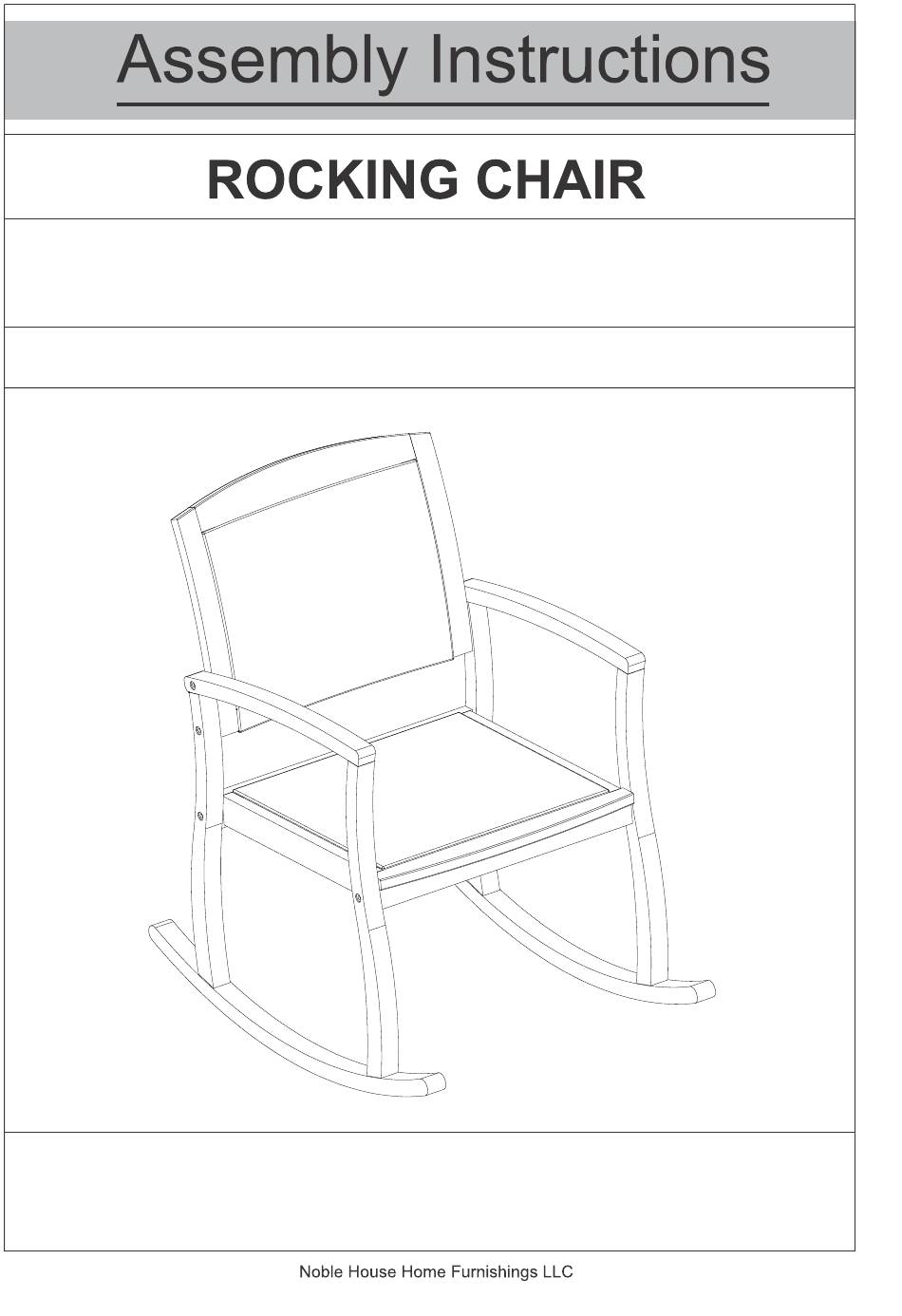

CAUTION: You must read this Assembly Instructions
before you proceed
Please look in the Arm Panel for hardware packs
CAUTION: This Rocking Chair is NOT a TOY.
Keep your child / children at bay in the process of assembly.
For turning the Rocking Chair and to prevent damage to the Rocking Chair,
02 persons may be needed to execute this action.
1 OF 7
Advertisement
Table of Contents
Related Manuals for Noble House Home Furnishings CHC2255
Summary of Contents for Noble House Home Furnishings CHC2255
- Page 1 CAUTION: You must read this Assembly Instructions before you proceed Please look in the Arm Panel for hardware packs CAUTION: This Rocking Chair is NOT a TOY. Keep your child / children at bay in the process of assembly. For turning the Rocking Chair and to prevent damage to the Rocking Chair, 02 persons may be needed to execute this action.
- Page 2 Left Arm Panel Right Arm Panel Seat Panel Backrest Panel Screws (M7x90mm) Screws (M6x65mm) Allen Wrench Before Beginning Assembly: 2 OF 7...
- Page 3 Seat Panel (C) This Rocking Chair has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Rocking Chair parts, the above picture is to help you put the various parts into perspective. Please read through the instructions herebelow to familiarise the parts and steps before assembly Unpack and place all parts on a clean, non-marring surface.
- Page 4 The Front Side With the help of your adult partner, position Seat Panel (C) and Right Arm Panel (B) then affix Right Arm Panel (B) with Seat Panel (C) by using Screws (①) and Allen Wrench (③) as shown in picture above. DO NOT FULLY TIGHTEN SCREWS.
- Page 5 With the help from your partner, turn over the assemble in step 3 Then position Left Arm Panel (A) to the Backrest Panel (D) and Seat Panel (C) Repeat the same process as step 2 and step 3 using Screws (①), Screws (②) to designated points DO NOT FULLY TIGHTEN SCREWS.
- Page 6 Turn the Rocking Chair right side up. Place the Rocking Chair on a LEVEL SURFACE. Inspect it and make sure all parts are adequately connected. Gently and gracefully, sit into to the Rocking Chair. This would help to align all the parts at all the joint areas. Then get off the Rocking Chair and in a sequential manner, proceed to tighten all screws To tighten the Screws at the base of the Backrest, do secure assistance from your adult partner(s).
- Page 7 Not for commercial use. For residential use only Stains may be removed with mild soap solution and damp cloth. Keep away from sources of ignition. Dust and pick-up spills using a clean, non-colored, lint-free cloth. 7 OF 7 Noble House Home Furnishings LLC...
