Copernicus BTHC2 Assembly Manual

Copernicus BTHC2 Assembly Manual

Chart caddy center premium

Advertisement

Quick Links

BTHC2
BTHC3
WARNING
Pencil Basket (1)
Chart Caddy (10)
Book Display
Rack (1)
#31041
Needs Assembly
Short Bend Arm (2)
Long Bend Arm (2)
Back Frame (1)
Open Tub (4)
Bottom Rack (2)
Hidden
Please Recycle

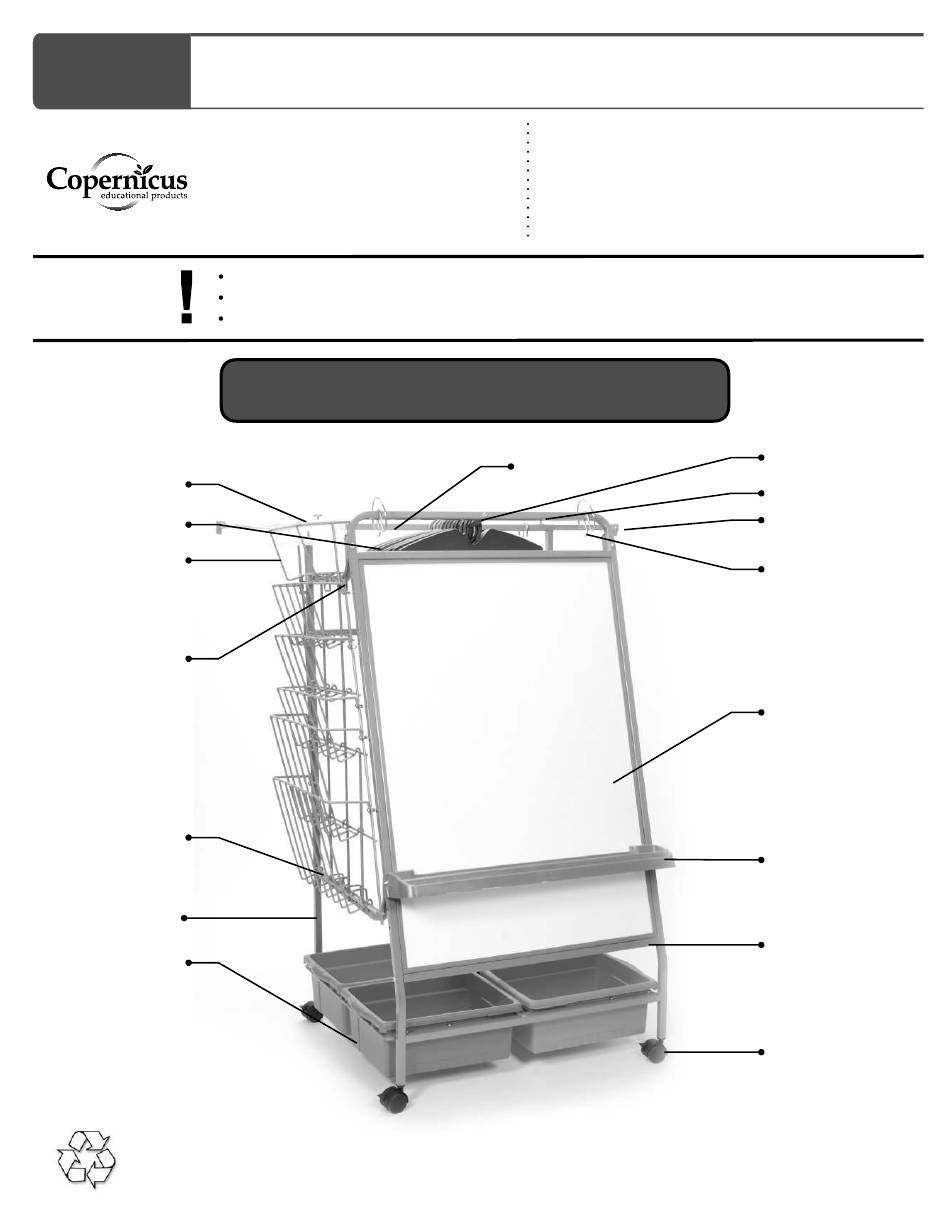

Chart Caddy Center Premium
Assembly Guide
BTHC2_2013_A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
Don't forget to check out our tips for your whiteboard at:
www.copernicused.com
BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
"S" Hook (2)
Chart Caddy
Stretcher (1)
Knob (2)
Telescoping Arms
(left & right) (1 each)
Loop Hook (2)
Page Paw (2)
Not Shown
Hang Tags (100)
Not Shown
Front Frame With
Whiteboard (1)
Ultra Safe
Book Ledge (1)
#PABL30
Bottom Stretcher (1)
2" Twin Wheel Caster
with Brake (4)

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTHC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Copernicus BTHC2

  • Page 1 Book Ledge (1) #PABL30 Back Frame (1) Bottom Stretcher (1) Open Tub (4) Bottom Rack (2) Hidden 2” Twin Wheel Caster with Brake (4) Please Recycle BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 2 Contents - Box 2 Knob Bottom Rack Pencil Basket (#1607) Chart Caddy Loop Hook Bottom Whiteboard Stretcher Open Tub Hang Tags (CC4068) 100x 10 lbs Weight Limit BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 3 Don’t forget to check out our tips for your whiteboard at: www.copernicused.com Validate Your Warranty On-Line Life Life Time Time To validate your warranty submit the ON-LINE form at www.copernicused.com Parts Frame Warranty Warranty BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 4 You will need: (Not to Scale) Short Bend Arm Long Bend Arm Install Short & Long Bend Arms For easy assembly build the unit on its side BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 5 2” Twin Wheel Caster with Brake Install Casters Press Casters firmly into the Base: Casters will click into place If necessary, tap the caster in using a rubber mallet. BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 6 Install Telescoping Arms & Knobs Note the hooks face the back of unit Tightening the knobs will stop the arms from sliding. Loosen knobs to adjust. BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 7 Rack 3 Bolt is threaded through the rear of the back frame. Rack 4 Tighten bolts securely. Rack 5 Main Rack Hook bottom first then bolt. BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 8 Bottom of Rack Actual Size: M6x20mm Bolt M6 Lock Nut You will need: (Not to Scale) Bottom Rack Install Bottom Racks Note wire is on top BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 9 Install Book Ledge There are a number of positions to choose from. Please note that the spring tension is designed to discourage children from unhooking Book Ledge. BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 10 (Not to Scale) Chart Caddy Page Paw Pencil Basket Attach Page Paws, Chary Caddies, & Pencil Basket Don’t forget to peel off your protective film from your whiteboard. BTHC2 - Version A - Released 3 September 2013 - Copernicus Educational Products Inc.
  • Page 11: Assembly Guide
