Summary of Contents for Knapen Trailers Exside

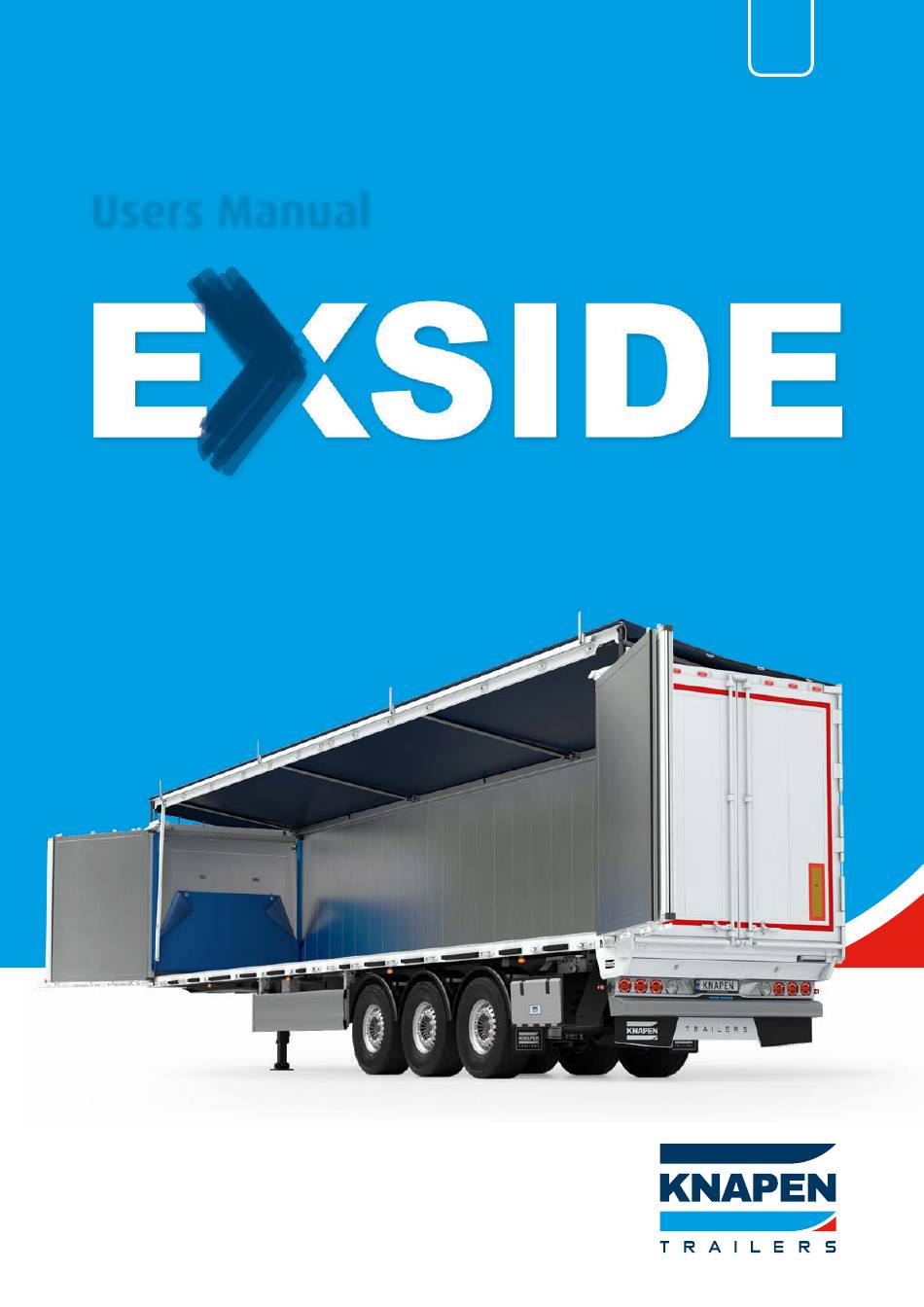

- Page 1 Users Manual knapen-trailers.eu User Manual EXSIDE EN - v202101...
-
Page 3: Table Of Contents
Opening side with liftable upper rail (option) Operating the liftable upper rail (option) Closing the liftable upper rail (option) EXSIDE with side doors on both sides. Using the rotating upper beam with side doors (option) Using the bars Weight distribution/loaded 5.10... -
Page 5: Introduction
“General Users Manual” supplied with the trailer Before using the trailer for the first time, read the “General Users Manual” and then this “EXSIDE Users Manual" carefully to prevent accidents and/or serious damage. If you have any questions or comments, please contact us www.knapen-trailers.eu/contact... -
Page 6: Vehicle Identification
Vehicle identification Vehicle identification Trailer position indications NO Description Chapter Door retainer CH5.1 Locking point CH5.1 Door locks CH5.1 Handle mid-post CH5.1 Securing point mid-post CH5.1 Mid-post/centring point CH5.2 Operation liftable upper rail (option) CH5.4 Extra lock combined with liftable upper rail (option) CH5.5 Operation air bag deflation CH5.10... -
Page 7: Safety
User Manual EXSIDE EN - v202101 Safety Read this chapter carefully prior to using the trailer. Always apply the following points of attention in the daily use of the trailer. Standard visual inspection before driving off The visual inspection before driving off is very important for the safety of the driver, bystanders, and fellow road users. -
Page 8: General Use Of Exside
General use of EXSIDE General use of EXSIDE General use of the trailer is described in the “General Users Manual". Using the EXSIDE When transporting general cargo, the load must be secured in accordance with the guidelines. Important points for attention are: The roof system must be free of water, snow and ice before the side doors, mid post or upper rail are operated. -
Page 9: Opening The Side
User Manual EXSIDE EN - v202101 Opening the side Step Release the door handles on door 3. Fold door 3 against door 2 and secure it with the door retainer. Release the door handles on door 1 and door 2. -
Page 10: Closing The Side
Using the EXSIDE Closing the side Step Release the mid post and roll it to the centre of the trailer. Release the handle of the post and place it in the claw at the bottom (1). Make sure the centring arrows align at the top (2). -
Page 11: Opening Side With Liftable Upper Rail (Option)
User Manual EXSIDE EN - v202101 Opening side with liftable upper rail (option) Note: If the trailer is equipped with the liftable upper rail option, first follow the steps described in CH 5.1 “Opening the side". Then continue with the steps below. -
Page 12: Operating The Liftable Upper Rail (Option)
Using the EXSIDE Operating the liftable upper rail (option) 5.4.1 Manual pump Step Operation Remove the handle from the holder (1). Insert the handle into the pump (2). Place the pump lever in the desired position. Lift upper rail. Lower upper rail. -
Page 13: Closing The Liftable Upper Rail (Option)
User Manual EXSIDE EN - v202101 Closing the liftable upper rail (option) Before lowering the upper rail, check that the entire load is inside the trailer. Step Lower the upper rail by operating the pump. See CH 5.4 “Operating the liftable upper rail”. -
Page 14: Exside With Side Doors On Both Sides
Repeat the last four steps to close door 4, 5 and 6. Reattach the straps or central sheet fastening (option) and the elastic straps at the front and rear. EXSIDE with side doors on both sides Points for attention are: Both sides may be fully opened to load and unload the trailer. -
Page 15: Using The Rotating Upper Beam With Side Doors (Option)
When using the rotating upper beam the first bar should always remain in position. The other bars may be opened. The other steps to be followed are described in the Knapen Trailers Users Manual. Using the bars Note: When the pin is released the bar may lower (±20cm). -
Page 16: Weight Distribution/Loaded
Using the EXSIDE Weight distribution/loaded Points for attention are: Make sure the weight is distributed evenly for optimal closing of the side doors and optimal handling. Distribute the load properly if cargo has to be delivered to various addresses. Always close doors 1-3 first, then doors 4-6. -
Page 17: 5.11 Loading/Unloading From The Side
User Manual EXSIDE EN - v202101 5.11 Loading/unloading from the side Points for attention are: When loading and unloading at the front and rear in combination with the liftable upper rail, make sure the load (and/or fork-lift) does not touch the fixed rails as this can cause damage. -
Page 18: Maintenance And Cleaning
Maintenance and cleaning Maintenance and cleaning Side doors daily weekly monthly annually Condition of rubber lower side Condition of rubber upper side Condition of vertical rubber (in the door) Condition of hinges Condition of rollers door guides Condition of door locks Clean rubber seals Clean hinges Clean inner sliding runner... -
Page 19: Troubleshooting Exside
User Manual EXSIDE EN - v202101 Troubleshooting EXSIDE System malfunction Cause Solution Roller mechanism is damaged Contact your service point workshop Mid post not movable Blockage in rail Unblock Frozen Place trailer in heated area Claw is dirty Clean the claw at the bottom... - Page 20 Theo van Doesburgstraat 8 5753 DL Deurne, the Netherlands Postal address Postbox 343 5750 AH Deurne, the Netherlands Tel: +31 (0) 493 320 330 Fax: +31 (0) 493 310 728 E-mail: knapen@knapen-trailers.nl Web: www.knapen-trailers.eu © Copyright Knapen Trailers BV 2021 All rights reserved.
