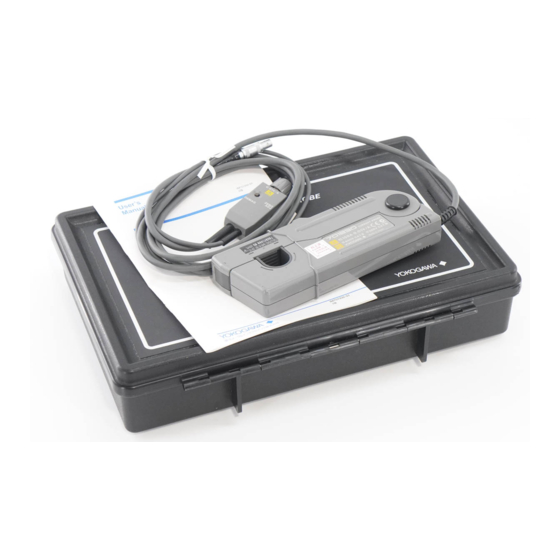

- Page 1 User’s Manual 701930 Current Probe IM 701930-01E 9th Edition...
- Page 2 Contact Us If you want to resolve a technical support issue or need to contact YOKOGAWA, please fill out the inquiry form on our website. https://tmi.yokogawa.com/contact/ PIM 103-06E...
-
Page 3: List Of Manuals
After reading the manual, keep it in a convenient location for quick reference whenever a question arises during operation. List of Manuals The following manuals are provided for the Current Probe (Model 701930). Manual Title Manual Number Description... -
Page 4: Checking The Contents Of The Package
If the instrument is used in a manner not specified in this manual, the protection provided by the instrument may be impaired. YOKOGAWA assumes no liability for the customer’s failure to comply with these requirements. In addition, before using the probe, read the manuals of the measuring instrument to thoroughly familiarize yourself with its specifications and operation. - Page 5 • Connectez l’alimentation à la borne d’alimentation de la sonde (option) d’un instrument de mesure de forme d’onde tel que la série Yokogawa DL/DLM, ou utilisez l’alimentation 701934 ou 700938. • Faites attention aux chocs électriques lors de la connexion de la sonde à...
- Page 6 • Before using the instrument, inspect and check the operation for malfunctions due to storage or transport conditions. If a malfunction is found, contact your dealer or YOKOGAWA representative. • The instrument is not dustproof or waterproof. Do not use it in a dusty or wet environment.
- Page 7 En cas de dysfonctionnement, contactez votre revendeur ou représentant YOKOGAWA. • Cet instrument n’est pas étanche à la poussière ou à l’eau. Ne l’utilisez pas dans un environnement poussiéreux ou humide.
- Page 8 • Depending on the current frequency that is measured, oscillation may occur, but this has no effect on measurements. IM 701930-01E...
-
Page 9: Regulations And Sales In Various Countries And Regions
This product complies with the WEEE marking requirement. This marking indicates that you must not discard this electrical/electronic product in domestic household waste. When disposing of products in the EEA or UK, contact your local Yokogawa office in the EEA or UK respectively. * EEA: European Economic Area Authorized Representative in the EEA (AR) Yokogawa Europe B.V. -
Page 10: Conventions Used In This Manual
Attire l’attention sur des gestes ou des conditions susceptibles de provoquer des blessures légères ou d’endommager l’instrument ou les données de l’utilisateur, et sur les précautions de sécurité susceptibles de prévenir de tels accidents. Note Provides important information for the proper operation of the instrument. viii IM 701930-01E... -
Page 11: Table Of Contents
Checking the Contents of the Package ................ii Safety Precautions ......................ii Regulations and Sales in Various Countries and Regions ..........vii Conventions Used in This Manual ..................viii Chapter 1 701930 Current Probe Product Overview ......................1-1 Features .........................1-1 Names of Parts ......................1-2 Description of Parts ......................1-3... -
Page 12: Chapter 1 701930 Current Probe
Product Overview This unit can be directly connected to a BNC input connector of a waveform measuring instrument such as YOKOGAWA DL/DLM series, and by clamping it to a conductor to be measured, allows the current waveform to be easily captured. -
Page 13: Names Of Parts
Names of Parts Terminator Current Direction Indication LOCK Indication Sensor Power Supply Cable 4 (internal) Sensor Cable UNLOCK Indication IM 701930-01E... -
Page 14: Description Of Parts
• Turn the clamp lever until it clicks, and check that it is locked securely. 8 Power Plug Connect the power plug to the receptacle on the power supply (model 701934 or 700938) to supply power to the sensor and terminator. IM 701930-01E... -
Page 15: Operating Procedure
Preparations for Measurement CAUTION When using a 701930 current probe, it may not be possible to use multiple active probes at the same time with the 701934, 700938 power supply, or the probe power supply from a YOKOGAWA waveform measuring instrument. -
Page 16: Demagnetizing And Zero Adjustment
• Do not demagnetize when the clamp is connected to a conductor. Doing so might damage the components of the circuit being measured. • Do not begin supplying power to the 701930 after the clamp has been connected to a conductor. Doing so might damage the components of the circuit being measured. -
Page 17: Measurement Procedure
• At high ambient temperatures, the built-in safety circuit may activate at current input levels below the rated continuous maximum. • Continuous input of current exceeding the rated maximum, or repeated activation of the safety function may result in damage to the unit. IM 701930-01E... - Page 18 It is now possible to monitor the current waveform. The output voltage rate of the 701930 is 0.01 V/A. Convert the voltage sensitivity of the waveform observation instrument to current sensitivity. For example, if the voltage sensitivity is 10 mV/DIV, the current sensitivity is 1 A/DIV.
- Page 19 • Accurate measurement may be impossible in locations subject to strong external magnetic fields such as transformers and high-current conductors, or in locations subject to strong external electric fields such as radio transmission equipment. IM 701930-01E...
-
Page 20: Specifications
Approx. 176 (W) × 69 (H) × 27 (D) mm Terminator: Approx. 27 (W) × 55 (H) × 18 (D) mm Weight Approx. 500 g Accessories User’s manual, carrying case * In conjunction with a waveform measuring instrument with an input impedance of 1 MΩ ± 1% IM 701930-01E... -
Page 21: Compliant Standards
Pollution degree 2 applies to normal indoor atmospheres (usually with only non-conductive pollution). *2 For conformity to environmental regulations and/or standards other than EU, contact your local Yokogawa office (PIM 113-01Z2). Frequency [Hz] Figure 1 Frequency Characteristics (Typical Characteristics) -
Page 22: Chapter 2 Malfunction? First, Investigate
Corrective Action to be Taken in Case of an Abnormality If maintenance service is required, or if the instrument still does not operate properly even after proper corrective action has been taken, contact your nearest YOKOGAWA representatives listed on the back cover of this manual. Symptom Possible Cause Corrective Action Power is not turned ON.
