- Page 1 User’s Model 701944/701945 Manual 100:1 Probe IM 701944-01E 7th Edition...
-
Page 2: User Registration
Please allow us to serve you best by completing the user registration form accessible from our website. https://tmi.yokogawa.com/support/ Contact Us If you want to resolve a technical support issue or need to contact YOKOGAWA, please fill out the inquiry form on our website. https://tmi.yokogawa.com/contact/ PIM 103-06E-A5... -
Page 3: List Of Manuals
Thank you for purchasing the 701944 or 701945 100:1 probe. To ensure correct use, please read this manual thoroughly before beginning operation. After reading this manual, keep it in a convenient location for quick reference in the event a question arises during operation. -
Page 4: Conventions Used In This Manual
II defined in IEC 61010-031. If this probe is operated in a manner not specified in this manual, this may cause the protection capability of this product to lessen. YOKOGAWA shall not be held responsible for defects arising from negligence of such warning and caution, and also shall not guarantee the product in such case. - Page 5 • Do not disassemble or modify Do not disassemble or modify the product. YOKOGAWA assumes no liability if you disassemble or modify the product. • Observe the maximum input voltage Do not apply a voltage exceeding the maximum input voltage to the probe.
- Page 6 This product complies with the WEEE marking requirement. This marking indicates that you must not discard this electrical/electronic product in domestic household waste. When disposing of products in the EEA or UK, contact your local Yokogawa office in the EEA or UK respectively. * EEA: European Economic Area...
-
Page 7: Standard And Optional Accessories

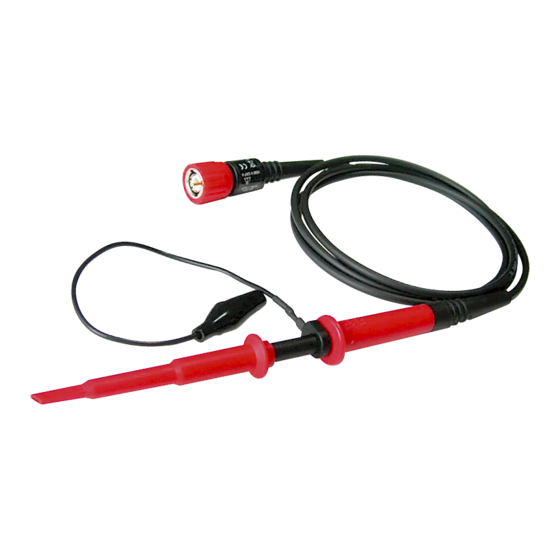

Overview Model 701944 and 701945 are high voltage probes with attenuation ratio of 100:1. The very sharp probe tip is spring loaded and minimizes the pressure to the device under measurement. It also prevents the probe from slipping on the board surface. In particular, the spring mechanism is useful when using the probe with it inclined. - Page 8 Combinations of Accessories CAUTION • Use the ground lead only for grounding connections. • Do not use any accessories other than those specified. French ATTENTION • Utilisez le fil de terre uniquement pour les connexions de mise à la terre. •...
-
Page 9: Specifications
Specifications The specifications described in this section apply to the probe connected to Yokogawa’s oscilloscope and may vary depending on the type of oscilloscope connected. The preconditions for the following specifications are that the instrument should be warmed up for at least 20 minutes and the environmental conditions should not exceed the specified limits of the probe. -
Page 10: Environmental Specifications
Pollution Degree 2 applies to normal indoor atmospheres (usually with only non-conductive pollution). For conformity to environmental regulations and/or standards other than EU, contact your nearest Yokogawa office (PIM 113-01Z2). Definitions of Measurement Categories Measurement Category “O” (Other) It applies to measurement of a circuit that is not connected directly to the main power source. -
Page 11: Input Impedance
Voltage Derating CAUTION As the frequency of the input signal increases, the maximum input voltage of the probe decreases. See Specifications for the appropriate input voltage. French ATTENTION Lorsque la fréquence du signal d’entrée augmente, la tension d’entrée maximale de la sonde diminue. Voir les spécifications pour la tension d’entrée appropriée. - Page 12 Typical Input Impedance 100000.00 10000.00 1000.00 100.00 10.00 1.00 0.10 0.01 1E-05 0.0001 0.001 0.01 1000 Frequency [MHz] Maximum Pulse Ratings For pulse measurements make sure to comply with the ratings as shown below. RMS vs. Peak Pulse Voltage 8000 7000 6000 5000...
-
Page 13: Adjustment Procedures
Handling CAUTION • Since the contact tips are very thin and sharp, handle them with care. • Avoid shock to the probe body. Do not bend or pull the cables excessively. Doing so may damage or disconnect the probe. French ATTENTION •... -
Page 14: Maintenance
HF Compensation HF needs to be adjusted when the probe is connected to the scope input the first time. HF adjustment is performed by connecting the probe to a rectangular wave generator with first rise time. Adjust the trimmer for optimum wave response. Optimum DC Adjustment In order to provide highest accuracy this probes dividing ratio is factory adjusted...
