Ridea RD3 Quick Start Manual

9 Congratulations, your RD3 C35/C60
+
OSPW system is now installed!
Note: Due to the variability of rear derailleurs on the market, your
+
OSPW is provided with two groups of tension holes: A-B (A for
higher tension and B for lower tension) and C-D (C for higher
tension and D for lower tension). The correct choice between
A-B or C-D will depend on your rear derailleur model and its
production year.
C D
B A
Included accessories:
RD W15 (included): On some frames with slim rear dropouts, the
shifting performance on the higher gears (smaller sprockets) can
be sup-optimal after you upgrade your derailleur with Ridea's
+
OSPW . To solve this, some users may require installing RD W15
washer between the rear derailleur body and the rear derailleur
hanger of the frame.
Best position after installation
Small
Small
Greater than
10 degrees
Less than
30 degrees
Big Big
Greater than
0 degrees
Less than
30 degrees
RIDEA GROUP Limited
www.rideabikes.com TEL: +886 4 7715639
FAX: +886 4 7720539
service@rideabikes.com
@CyclingRidea
3 rd Edition April 2019
+
OSPW
+
OverSized Pulley Wheel System
SRAM RED / FORCE / RIVAL / APEX (2x11 versions)

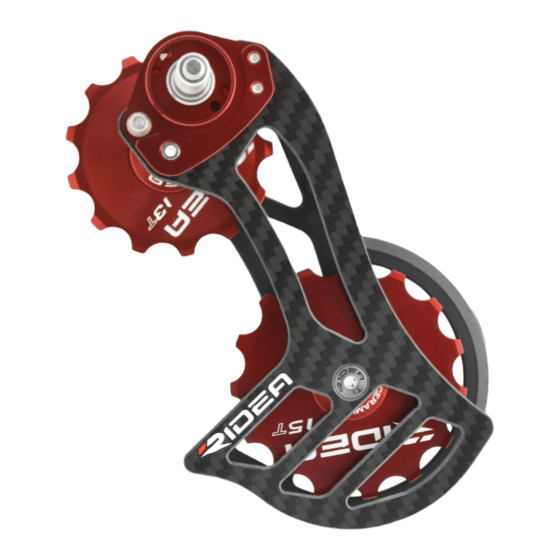

Rear Derailleur Cage (RD3)
This installation manual is suitable for Ridea
+
OSPW RD3 C35/C60 rear derailleur cage
