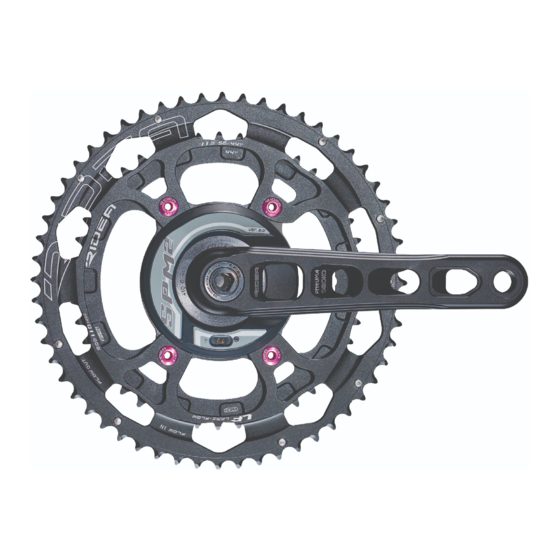

- Page 1 USER MANUAL 1st Edition. October, 2020 ‧ SPM POWER METERS ‧ PNEUMA TAROKO CRANKSETS (ROAD) ‧ PNEUMA SEKOAN CRANKSETS (MTB)
-
Page 2: Installation Diagram
INSTALLATION DIAGRAM For detailed installation information, please read pages 2-3. -
Page 4: Important Notice
Congratulations! You have purchased a piece of engineering that we, at Ridea, have made with passion. Enjoy your rides with your Ridea component as much as we enjoyed making it. IMPORTANT NOTICE Thank you for your purchase of a Ridea product. Please read thoroughly this user manual before proceeding with the installation of your new Ridea crankset. - Page 5 Use the included Ridea BB tool and a 10 mm hex wrench to tighten the locking ring to 30 N m. Clean the grease excess. Attention: if installing the SPM2 power meter spider, the crank must always fit in the crank slot of the SPM2.
- Page 6 6. Grease the threads and spindle-crank interface in the right side of your crankset. Fix the spindle to the right-side crank arm. Use an 8 mm hex wrench to tighten it to 30 N m. Note: spindle is symmetrical. Therefore, there is neither right nor left side. 7.
- Page 7 POWER METERS...
- Page 8 Follow the manufacturer´s instruction manual of your cycling computer or smartphone app for connecting new devices. Connection to Ridea smartphone app Ridea SPM app can use the Bluetooth® of your smartphone to connect both devices.
- Page 9 Performing a manual zero offset (optional) 1. Rotate the cranks to ensure the power meter is awake. A blue light will flash every eight seconds to confirm that the unit is awake. 2. Select the zero offset, calibration or zero reset function of your bicycle computer or smartphone app.
-
Page 10: Disposal Of Electronic Devices
DISPOSAL OF ELECTRONIC DEVICES We desire you can use your Ridea SPM2 for many years. Although eventually, you will have to replace it. This is an electronic device, do not dispose it in general household garbage. Dispose it accordingly to local regulations in a recycling center or other suitable facility. -
Page 11: Led Notifications
LED NOTIFICATIONS Condition LED behavior LED meaning Required action Cranks start movement 1 blue flash Unit is waking up Warm up time! Cranks moving and Blue flashes every 8 Unit active and Keep cycling! unit is wake up seconds measuring Plugging charging Charging cable Sit down. - Page 12 PNEUMA TAROKO CRANKSETS (ROAD) With 24 mm: 167.5 172.5 With 29 mm: 167.5 172.5...
- Page 13 PNEUMA TAROKO CRANKS SPECIFICATIONS CRANK ARM Crank material CNC AL7150 With 24 mm spindle: 140; 145; 150; 155; 160; 165; 167.5; 170; 172.5; 175; 180 mm Crank Length With 29 mm spindle: 155; 160; 165; 167.5; 170; 172.5; 175 mm SPINDLE Spindle diameter 24 mm OR 29 mm...
- Page 14 W3T (inset 3 mm): 46t; 48t; 519 g (170 mm; 24 mm, 523 g (170 mm; 24 mm, Weight TI64 spindle; w/o chainring) TI64 spindle; w/o chainring) When using Ridea Duo-Oval Powering chainrings: +10° Spider mount positions (climbing); -10° (rouleur); 0° (standard position) R491 GR4C...
- Page 15 483 g (170 mm; 24 24 mm, TI64 Weight mm, TI64 spindle; w/o mm, TI64 spindle; w/o spindle; w/o chainring) chainring) chainring) When using Ridea Duo-Oval Powering chainrings: +10° (climbing); -10° Spider positions (rouleur); 0° (standard position) R491 GR4C ITST...
- Page 16 PNEUMA SEKOAN CRANKSETS (MTB) With 24 mm: With 29 mm:...
- Page 17 PNEUMA SEKOAN CRANKS SPECIFICATIONS CRANK ARM Crank material CNC AL7150 With 24 mm spindle: 160; 165; 170; 175 mm Crank Length With 29 mm spindle: 165; 170; 175 mm SPINDLE 135/142 mm 148 mm 157 mm (Standard) (Boost) (Super Boost) Spindle diameter 24 or 29 mm 24 or 29 mm...
- Page 18 460 g (170 mm; 24 470 g (170 mm; 24 Weight mm, TI64 spindle; mm, TI64 spindle; mm, TI64 spindle; w/o chainring) w/o chainring) w/o chainring) When using Ridea Duo-Oval Powering chainrings: +10° (climbing); Spider positions -10° (rouleur); 0° (standard position)
-
Page 19: Warranty
M4S3 WARRANTY Ridea Group Ltd. warrants this product against defects in materials or workmanship for a period of four (4) years from the original date of purchase, with the exception of SPM2 spider power meter unit, which is warranted for a period of two (2) years from the original date of purchase. This warranty does not cover damage or failure resulting from misuse, abuse, alteration, neglect, crash or impact, improper installation and maintenance and normal and reasonable wear. - Page 20 Ridea Group Ltd. No.53-63 Gouqian Lane, Gouqian Village, Lukang Township, Changhua County, 50567, Taiwan +886 4 771 5639 ， service@rideabikes.com ， www.rideabikes.com Please consider the environment before printing © 2020 Ridea Group Ltd.
