10

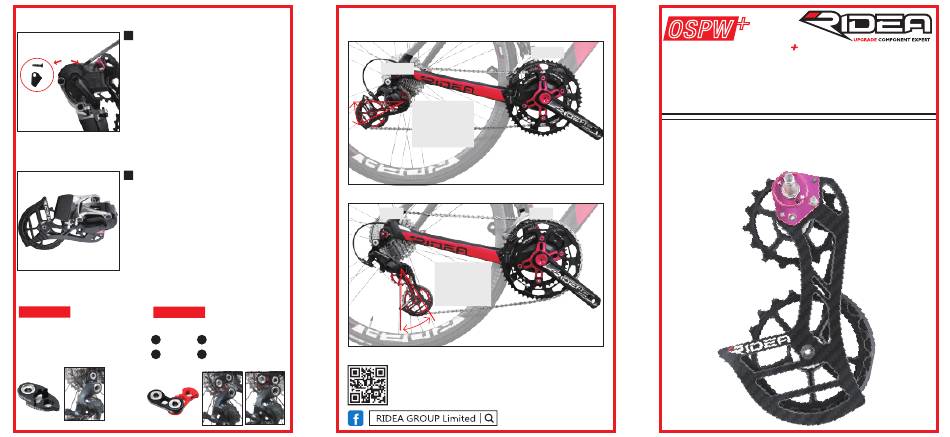

Assemble rear triangle plate, use
T7 Star key wrench to tighten the
screw on triangle plate lightly.
A
(Please do not overtighten, or the
screw may get stripped.)
B
PS.
A:
Torx screw
B:
Triangle plate
11
Upgrade is complete.
Rear derailleur hanger link
RDHL 22
RDHL 20
Extendable distance
Distance extended
1
22mm
20mm
2
23mm
3
27mm
4
31mm
Best position after installation
Small
Small
Greater than
10 degrees
Less than
30 degrees
Big
Big
Greater than
0 degrees
Less than
30 degrees
RIDEA GROUP Limited
www.rideabikes.com
TEL: +886 4 7715639
FAX: +886 4 7720539
service@rideabikes.com
+
OSPW
+
OverSized Pulley Wheel System
SRAM RED E-TAP
Rear Derailleur Cage (RD5)
The installation instruction is suitable for
RD5 C35 / C60 rear derailleur cage .
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ridea OSPW+ RD5
Summary of Contents for Ridea OSPW+ RD5
- Page 1 Upgrade is complete. Greater than 0 degrees Less than Rear derailleur hanger link 30 degrees RDHL 22 RDHL 20 Extendable distance Distance extended 22mm 20mm 27mm 23mm 31mm RIDEA GROUP Limited www.rideabikes.com TEL: +886 4 7715639 FAX: +886 4 7720539 service@rideabikes.com...
- Page 2 Use T7 star key wrench to remove rear triangular plate of rear derailleur Tenon cage. T7 Star key wrench Triangle plate Prepare whole set of RIDEA rear derailleur cage to be assembled. Assemble the tenon. Please hold the cage when assembling the tenon.
