Monogram ZISB480DR Dimensions page 6

Advance Planning for Built-In Custom
Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.

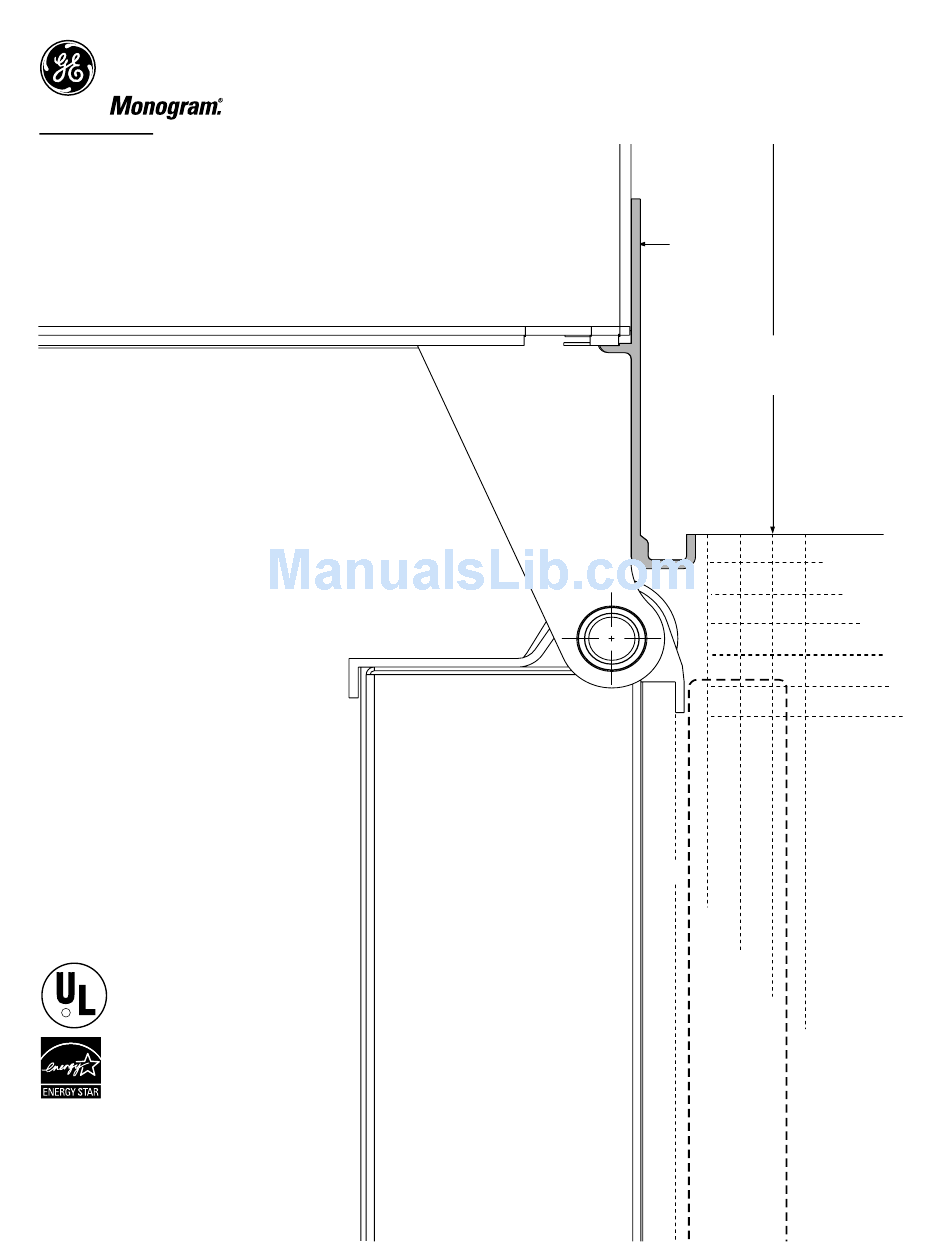

Top View
90° Door Swing
(Optional setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with two dispenser
trims, one to fit framed panels and one for overlay
panels. Dispenser trim fit to the custom panel
depends on correct panel thickness. Framed
panels must be 1/4" nominal. Overlay panels
should be constructed as shown to accomplish
a total 1.100" thickness.
