Important Note; Top View - Monogram ZISB480DR Dimensions

Advance Planning for Built-In Custom Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.

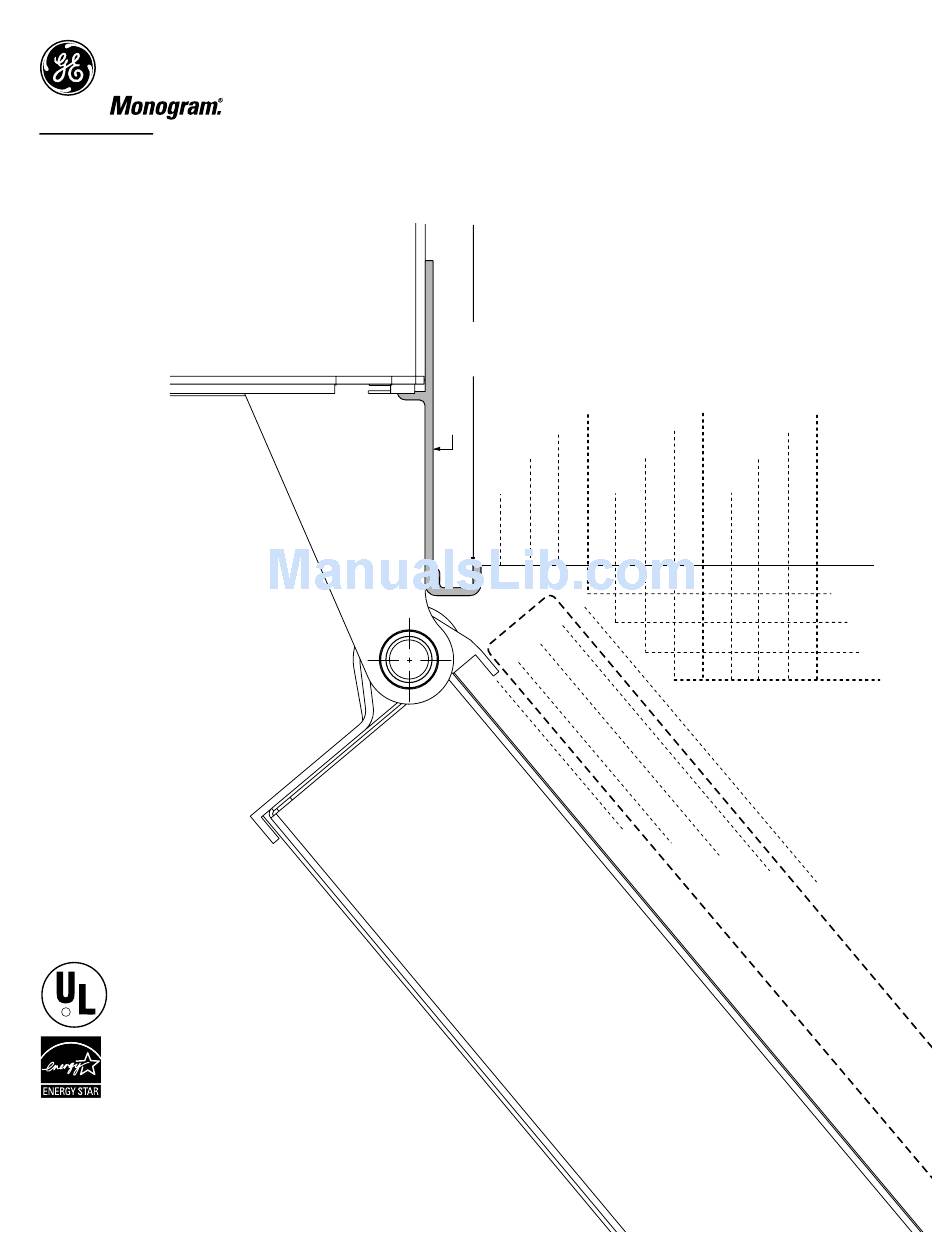

Refrigerator

Top View

130° Door Swing
(Factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim fit
to the custom panel depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown
to accomplish a total
1.100" thickness.
Listed by
Underwriters
Laboratories
R
As an ENERGY STAR ®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,
GE ® appliance questions, visit our website at
GEAppliances.com or call
®
GE Answer Center service, 800.626.2000.
Specification Revised 10/05
110179
ZISW/B480DR – GE Monogram 48" Built-In
® GE Profile ™ or
Side-by-Side Refrigerator with
Dispenser and Water Filter
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.
23-7/8" From
Rear of
Refrigerator
1"
Case
3/4"
Trim
1/2"
1/4" 1-1/4"
1/4"
Door
2"
1-3/4" 2-3/4"
1-1/2" 2-1/2"
2-1/4"
1/2"
3/4"
1"
3/4" Overlay
Panel
(Nominal Size)
3"
1/4"
1/2"
3/4"
1"
1-1/4"
